034Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit - Audi / 4M / 4M.5 / SQ7 / SQ8 | 034-301-1016

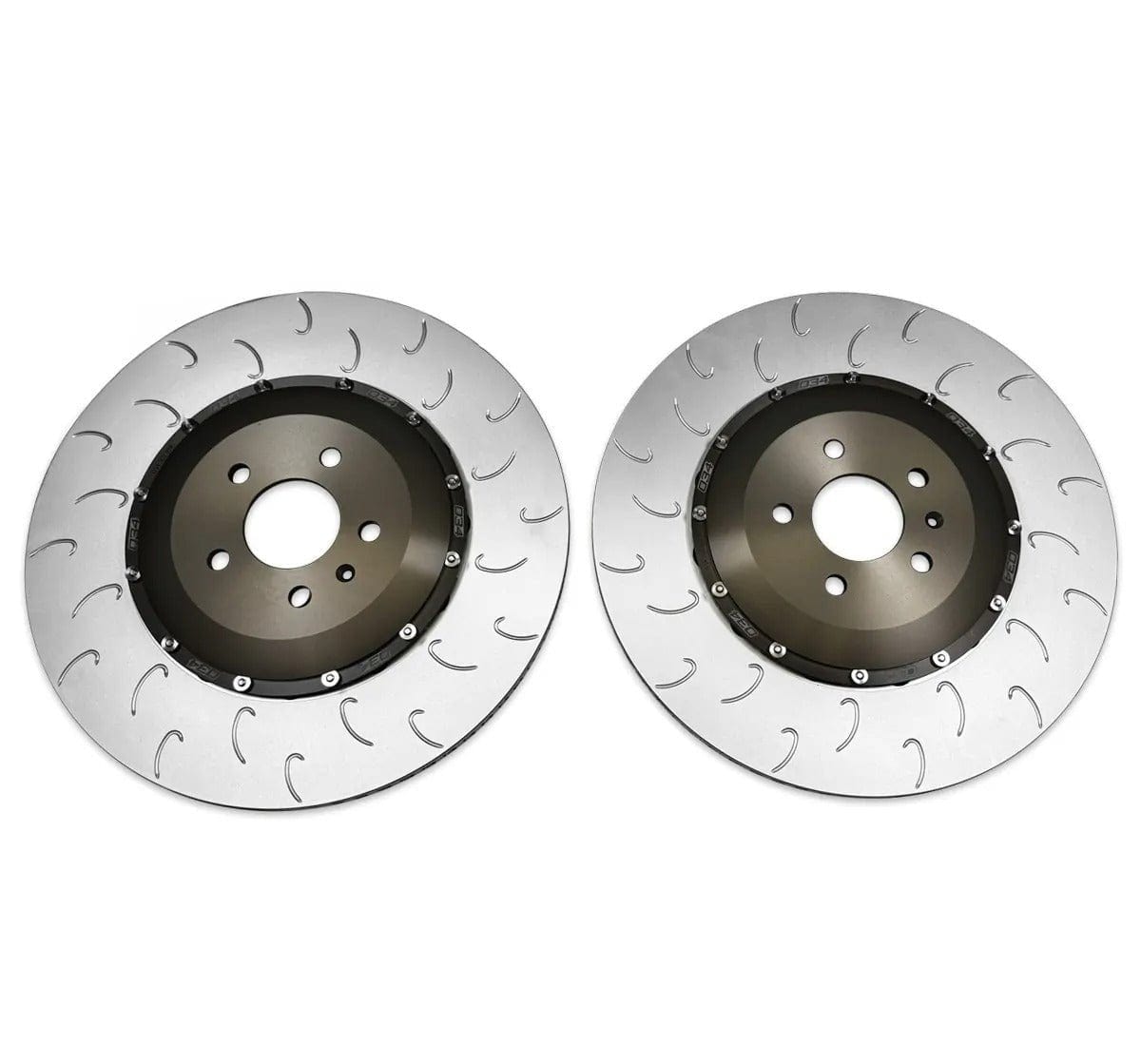

The 034Motorsport 400mmx38mm 2-Piece Floating Front Brake Rotor Upgrade Kit for the Audi 4M/4M.5 SQ7/SQ8 is a complete replacement brake rotor kit, designed to work flawlessly with the factory front calipers found on the Audi 4M/4M.5 SQ7/SQ8.

Weighing in at approximately 32.5lbs, each rotor reduces rotational weight by 2.8lbs on each corner over the factory 35.3lb rotors. While reducing weight, the rotor retains proper thermal mass in the rings to adequately capture, and dissipate heat.

The central hat portion of the 034Motorsport rotor is made of 6061-T6 aircraft specification aluminum. The disc is constructed out of a proprietary metal alloy that can withstand immense braking temperatures while holding form. From the factory, the same rotor is used on both sides of 4M/4M.5 SQ7/SQ8, leading to one side having incorrect venting and cooling effects. The 034Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit utilizes 72 directionally curved vanes properly oriented for each side of the vehicle to forcefully flow cool air through both rotors to dissipate heat equally.

The face of the 034Motorsport 2-Piece Floating Front Brake Rotor Upgrade Kit utilizes J-Slot slots to clean the pad and surface of contaminants and allows hot pad outgassing, all while reducing overall braking noise compared to a traditional slotted rotor.

The 034Motorsport rotor and hat floating mount system utilizes high strength alloy steel bobbins. The pins take the load from braking actions while maintaining the axial and radial float between the hat and disc, allowing for safe expansion and contraction from heat.

FEATURES:

• Lightweight Construction (32.5lb 034Motorsport Rotor vs. 35.3lb OE Audi Rotor)
• Floating, 2-Piece Design
• Aerospace Grade Aluminum Hats
• CM-250 Special Alloy Rotor Rings
• J-slotted Friction Face
• OEM Fitment & Functionality
• 72 Properly Oriented Curved Vanes Force Cooling Air through Brake Disc
• Floating Bobbins Mounting System
• Replaceable Rotor Rings
• Lower Long-term Maintenance Cost

WHAT'S INCLUDED:

• 034Motorsport 2-Piece Floating Front Rotor Pair
• Installation and Break-In Instruction Sheets

OE PART INTERCHANGE:

• 4M0 615 301 BM - Left
• 4M0 615 302 K - Right
