Are you prepared for one of the most high-performing B8/B8.5 air intake kits available? Introducing the S34 Carbon Fiber Intake for Audi B8/8.5 S4/S5 3.0 TFSI, a package that enhances power, supercharger sound, and overall performance in the 3.0T engine found in B8/8.5 S4/S5 models. This offering from 034Motorsport provides an efficient and affordable solution.
The 034Motorsport S34 Carbon Fiber Intake for Audi B8/8.5 S4/S5 3.0 TFSI holds a coveted California Air Resource Board Exemption status, as recognized in Executive Order D-850-2. Designed for residents in emissions-controlled environments and for on-road use, each purchase includes a CARB Exemption sticker. These CARB exempt Performance intakes by 034Motorsport deliver outstanding performance and reliability while complying with regulations, now exempted from California Vehicle Code Section 27156 and the Federal Clean Air Act, which prohibit modifications increasing motor vehicle emissions.
To receive your CARB Executive Order sticker for a previously purchased S34 Carbon Fiber Intake, please fill out the following Form with the necessary information and our team will reach out to you to process a sticker order.
PRODUCT DESCRIPTION

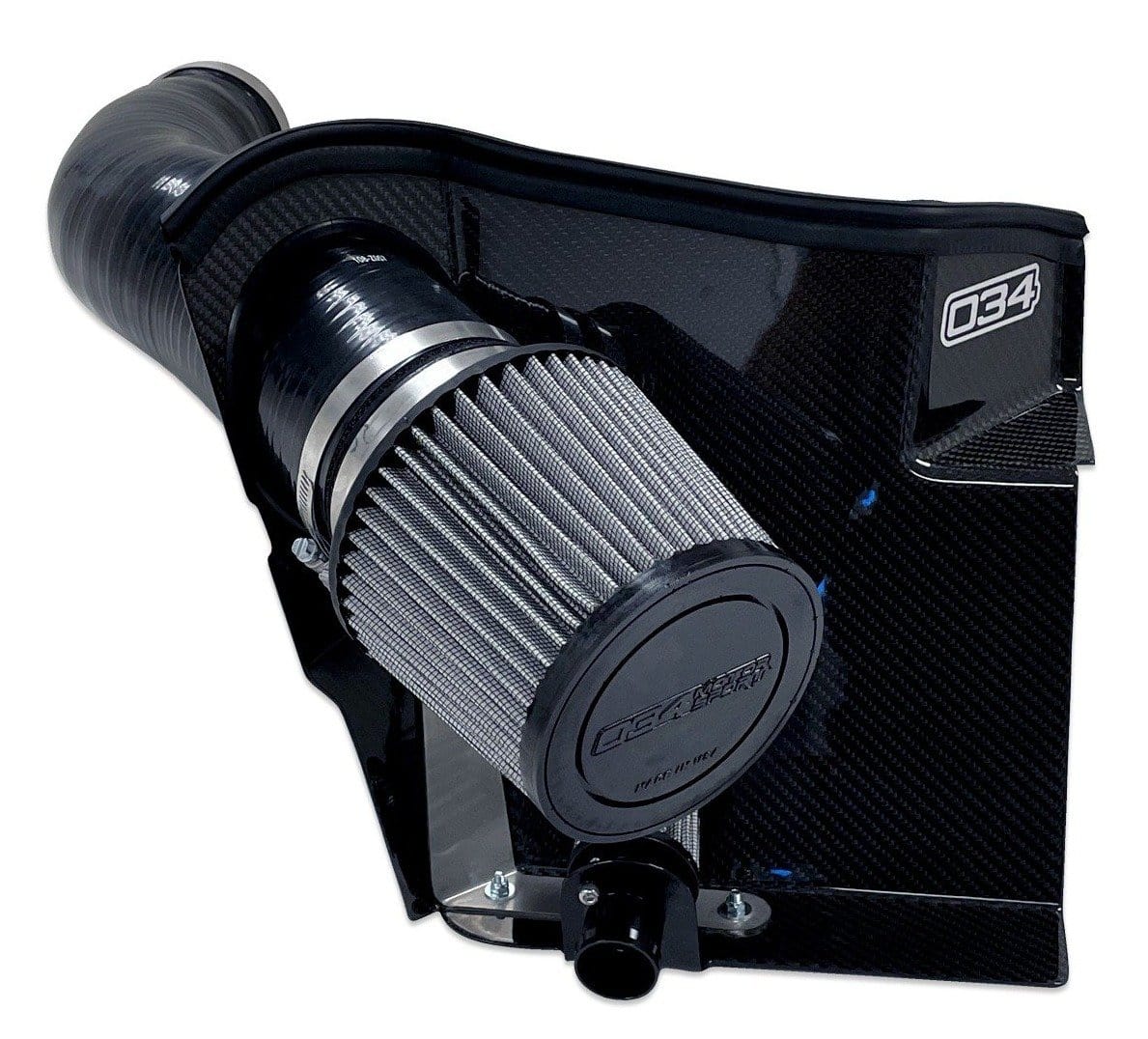

Considerable effort has been invested in crafting a comprehensive performance-enhancing intake solution tailored for the Supercharged 3.0 TFSI engine found in the B8 and B8.5 iterations of the S4 and S5. As a result, the S34 Carbon Fiber Intake, designed for Audi B8/8.5 S4/S5 3.0 TFSI, provides discerning enthusiasts with tangible increases in horsepower and torque, a more pronounced induction sound and supercharger whine, and an aesthetically pleasing carbon fiber heat shield designed to prevent the entry of hot air from the engine bay into the intake.
Throughout the meticulous development process, numerous designs were conceptualized, prototyped, and rigorously tested. This rigorous approach ensures that the S34 Carbon Fiber Intake not only delivers quantifiable performance improvements but also boasts impeccable fitment. The end result is an optimized open-airbox design leveraging the factory fresh air duct inlet to direct cool outside air to the filter. This spacious airbox configuration accommodates a substantial 4" inlet conical air filter, free from restrictive shrouding, and guides air through a CFD-optimized 4-ply silicone inlet hose, promoting a smooth increase in air velocity towards the throttle body.
MINIMIZING UNNECESSARY FILTER SHROUDING
034Motorsport dedicates its efforts to optimizing every facet of the intake system, considering a wide array of variables and avoiding compromises. A pivotal element in achieving a high-flowing performance intake lies in ensuring that air can effortlessly circulate around and enter the filter. If airflow encounters restrictions around the filter, it hampers its ability to reach the filter, diminishing overall flow. Many aftermarket kits make the mistake of incorporating an excessively large filter into an enclosure ill-suited for its size, resulting in the filter being choked and reduced in effectiveness. This situation often arises when a product prioritizes one variable at the expense of others.
In response, 034Motorsport undertook extensive testing and meticulously refined its intake design to facilitate maximum airflow around the air filter, ensuring optimal airflow both to and through the filter. The end product is a meticulously calibrated filter housed in an appropriately sized enclosure, fostering peak airflow and performance while maintaining OEM-level filtering standards—an achievement that represents the ultimate objective for any intake system. It is advised to approach with caution any intake system that solely emphasizes the size of the air filter without considering the adverse effects of inadequate airflow caused by shrouding.
MAXIMIZING AIRFLOW
The engineers at 034Motorsport initiated the design process with the development of a Computational Fluid Dynamics (CFD)-optimized 4-Ply silicone intake tube. This tube serves as a direct and high-performance replacement for the factory plastic accordion/sound deadening hose. Leveraging CAD software and 3D scanning technology, 034Motorsport meticulously fine-tuned the cross-sectional area of the intake tube, all while taking into consideration the constraints imposed by the available space.
The outcome is nothing short of a functional masterpiece—a component that maximizes performance within the confines of the factory space limitations. Not only does it showcase an aesthetically pleasing design, but it also incorporates smooth transitions to ensure optimal airflow directed towards the throttle body. This blend of engineering precision and artistic functionality results in a superior product that enhances overall intake system performance.
PERFORMANCE AIR FILTER
The S34 Carbon Fiber Intake incorporates a high-flow conical air filter equipped with a double-layer pleated cotton filtration medium, proficient in capturing particles as minuscule as 5 Microns. This advanced air filter design enhances airflow by expanding the filtration surface, ensuring both increased flow and superior filtration quality. Rigorous testing, even in applications exceeding 800HP, demonstrates minimal restriction, underscoring its superior OEM-level air filtration standards.
Setting itself apart from other intake kits, where air filters may be left unsupported and prone to erratic movement, 034Motorsport engineers have devised an ingenious air filter support system. This not only prevents unwanted filter movement but also allows for flexibility to accommodate engine shifts during varying load conditions. An additional advantage is the stability of the air shroud, eliminating any undesirable rubbing on other engine compartment components—a common concern in many other market designs.
PRESSURE DROP IMPROVEMENTS
Pressure Drop is the difference in ambient air pressure and the air pressure measured at the supercharger inlet across the engine's rpm range. The higher the pressure drop at any given rpm, the more restrictive the intake system is, reducing airflow.
| Intake Configuration | Chart Color | Pressure Drop |
|---|---|---|
| S34 Carbon Fiber Intake | Yellow | -0.97 psi |
| Stock Intake | White | -2.18 psi |
DYNO-VERIFIED WHEEL HORSEPOWER & TORQUE GAINS
034Motorsport's engineering and development efforts were validated on multiple vehicles using our Mustang AWD Dynamometer to ensure that the S34 Carbon Fiber Intake provided substantial increases in horsepower and torque on both stock supercharger and ones with ported supercharger kits alike.
PEAK WHEEL HORSEPOWER & TORQUE WITH STAGE 2+ E40, 57.75/190MM PULLEY COMBO
- Stock Intake: 416 WHP / 396 WTQ
- S34 Carbon Fiber Intake: 436 WHP / 416 WTQ
- Peak Crank Gains: 26 HP / 24 TQ
PRODUCT FEATURES & DETAILS
- Developed In-House by 034Motorsport's Engineering Team
- Fits Both Left and Right Hand Drive Configurations
- High-Quality Carbon Fiber Air Block-off Shield
- High-Gloss Epoxy Finish
- 4-Ply Gloss Black Silicone Intake Tube
- OEM+ Fit and Finish
- No Rubbing or Excessive Movement
- Dyno-Proven Horsepower Torque Gains
- Improved Airflow from Factory Airbox and Intake Tube
- Enhanced Engine Induction Sounds
- Improved Throttle Response
- Large 4" Inlet Conical Pleated Cotton Air Filter
- Reduced Intake Air Temperature
- Securely Installs Using Factory Mounting Grommets
- Simple, Straightforward Installation Instructions
WHAT'S INCLUDED:
- S34 Carbon Fiber Heat Shield
- S34 4" Inlet Silicone Hose
- S34 4" Double-Layered Cotton Pleated Filter
- S34 Secondary Air Injector Filter
- Metal Mounting Bracket for Intake Hose
