42 Draft Wheel Adapters | 5x100 to 5x112 (NLA)

42 Draft Designs Wheel Adaptors adapt wheels of a different bolt pattern to your VW/Audi vehicle. CNC machined and loaded with features, our adapters require careful configuration to ensure successful fitment.To configure this adapter, carefully read the following specifications and choose from the options above.

Basic Specs

This wheel adapter set converts a 5x100 VW/Audi vehicle to 5x112. The adapter features a 57.1mm center bore allowing hubcentric fitment to your vehicle. This adapter is available in a range of thicknesses from 15mm-35mm. The 5x112 bolt pattern is studded with a choice of studs. A pair of centering rings is included with these adapters. Centering rings are available in sizes common to this bolt pattern conversion and can be customized. Mounting hardware is included and configurable.

Thickness

This wheel adapter set ranges in thickness from 15mm-35mm. As thickness increases, optimal mounting bolt and stud lengths are maintained. Required adapter thickness is dependent on the offset and width of your new wheels. Offset calculations are unique to each vehicle and wheel and should be carefully considered. If you need help calculating offsets, follow our technical guides to get started.


Wheel Studs

This wheel adapter set is studded with a choice of M12x1.5, M14x1.5 or M12x1.5 extended studs. Wheel studs are not interchangeable and should be carefully chosen before ordering. Each adapter is accurately machined to allow the serrated wheel studs to be pressed into counterbores from the hub side of the adapter. As thickness increases, wheel stud length and counterbore depth is adjusted to maintain the safest conversion possible. Grade 10.9 zinc plated wheel studs are used. All wheel studs are sourced from OEM applications and made in the USA.

Mounting Hardware

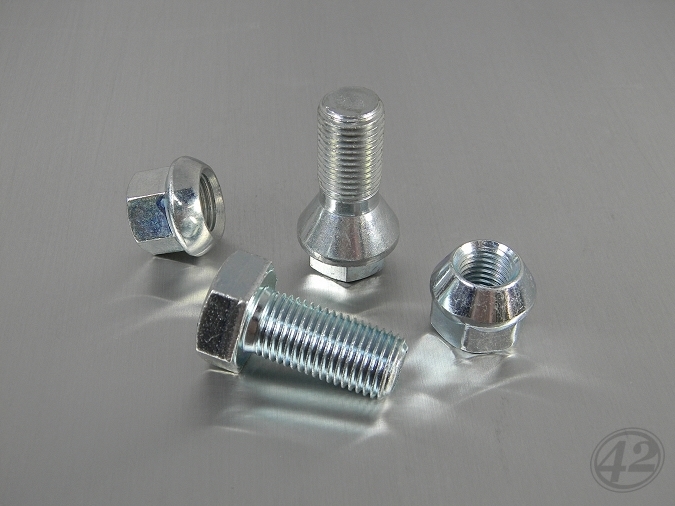

Each wheel adapter set includes (20) pre-configured mounting bolts. Mounting bolts are threaded M14x1.5 and configured to safely bolt the wheel adapter to the vehicle hub. 15mm and 18mm adapters include hex head bolts. These bolts are grade 8.8, zinc plated, and require a slim 22mm socket. 20mm-35mm adapters include short head lug bolts. These lug bolts feature a cone seat and shallow head which allows the bolts to be installed without protruding into the wheel. These bolts are grade 10.9, zinc plated, and require a slim 17mm socket. Hex head bolts are made in Germany. Short head lug bolts are made in Italy.

Mounting hardware is pre-selected to fit your vehicle. No configuration is necessary.


Lug Nuts

Lug nuts are available in two sizes and two seat styles. Size is based on your choice of wheel studs. If youre using M12x1.5 wheel studs choose M12x1.5 lug nuts. If youre using M14x1.5 wheel studs choose M14x1.5 lug nuts. Seat style is based on your new wheels. Most OEM wheels use ball seat hardware. Most aftermarket wheels use cone seat hardware. Dont guess! Check your new wheels before ordering.

Lug nuts are grade 10.9, zinc plated, and made in Italy. All lug nuts available for this adapter set require a 17mm socket.

Centering Ring

This wheel adapter set includes a pair of centering rings. These centering rings are unique to 42 Draft Designs Wheel Adapters and allow the user to configure their adapter without custom machining. Installed in the adapters, our centering rings fit the center bore of your wheel and provide true hubcentric and wheelcentric fitment.

Centering rings are available in a range of sizes popular to this bolt pattern conversion. If you require a different size, a custom centering ring can be machined for you within 24-48 hours of placing your order. Simply choose the 'Custom' option and include your custom size in the comments box when placing your order.

Centering rings are included with every wheel adapter set. Rings can be changed at any time and are available for individual purchase.

Installation Instructions

Full color installation instructions are included with every set of wheel adapters. Installation instructions must be followed step-by-step to ensure successful fitment and safe use of wheel adapters.


Help!

Dont panic, were here to help. Wheel adapters can be incredibly confusing if youre new to the concept. If you have any questions, big or small do not hesitate to contact us before ordering. Be sure to read through all of our technical guides and familiarize yourself with all of the terms we use in our product descriptions. Remember, we can help you discover what will fit, but we cant make decisions for you. Successful wheel fitment is our objective, but the final decisions are up to you.


Returns & Exchanges

Wheel Adapters CANNOT be returned or exchanged as they are Made to Order - NO EXCEPTIONS.

Although were assigning part numbers to an inventory of wheel adapters, the nature of the product is truly custom. Once a wheel adapter has a single scratch on it we cannot re-sell it. Proper configuration of your adapters is key to success. We can help, but we can NEVER guarantee fitment. Please use the technical information weve provided, take measurements on your car and your wheels, browse the internet for similar fitments, and ask questions. The modification youre performing is CUSTOM and cant be guaranteed to fit by ANYONE. In the end, youre 100% responsible for fitment.
