ACL 75-05 VW 1.0-1.9L Standard Size Thrust Washers | 2T1644-STD
- Share:
Select Your Car to Verify Fitment

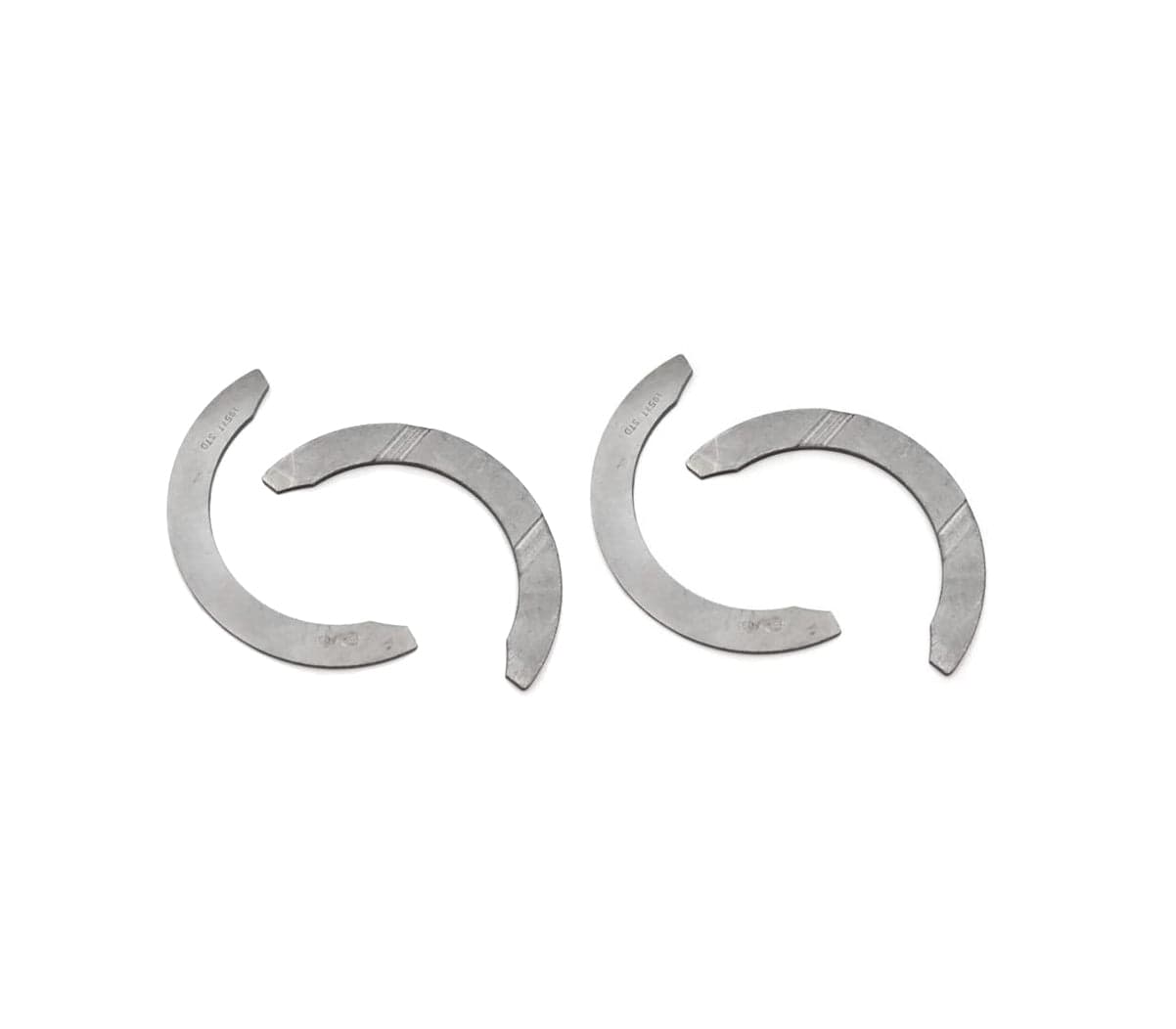

Picture for representational purposes only. Actual product may vary slightly.
ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in RACE engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides Race Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines.
High performance Trimetal engine bearings
Designed to withstand higher RPM conditions
High strength overlay plate with reduced thickness for improved fatigue properties
ACL RACE Series performance engine bearings are recognized as a premier brand throughout the motorsports world. RACE Series rod and main bearings are standard components in RACE engines that have set records and won championships from Mexico to Bonneville - from sport compact drift racing to small block NASCAR, IHRA and NHRA cmpetitions. The unique combination of design, metallurgy and engineering provides Race Series performance bearings with the endurance and capability to perform where others cannot. These exceptional bearings are available for a variety of American, Asian and European performance engines.
High performance Trimetal engine bearings
Designed to withstand higher RPM conditions
High strength overlay plate with reduced thickness for improved fatigue properties
Specifications for STD size only
| Sizes | STD |
| Oil Clearance | |
| Half Type | Upper & Lower |
| Material | F817 |
| Min. Std Shaft Size | 59,5 mm / 2.3425 in |
| Max. Std Shaft Size | 59,7 mm / 2.3504 in |
| Min. Std Tunnel Size | 73 mm / 2.8740 in |
| Max. Std Tunnel Size | 73,2 mm / 2.8819 in |
| Max Wall at Crown | mm / 0.0000 in |
| Max Overall Length |
1,976 mm / 0.0778 in
|
| Notes | |
| Diagrams |
