Air Lift PERFORMANCE 3H - Height Based Digital System

Never before has there been a digital air ride management system as easy to install as the Air Lift Performance 3H system. The combined ECU/Manifold unit has built-in push-to-connect ports (available in both 1/4"ptc and 3/8"ptc) and height sensors for the most accurate and precise level control. The Air Lift Performance 3H Management Package includes everything you need to experience what enthusiasts everywhere are raving about.

One of the best features of the Air Lift Performance Performance 3H system is that it is proudly made in the United States of America!

Features of the 3H system Include:

• Air Lift Performance 3 Controller
  • Full color Air Lift Performance 3 wired controller with black anodized aluminum casing and soft touch rubber keypad. The keypad can even be rotated for horizontal operation.


• FREE Mobile App
  • iOS and Android compatible app. No additional components or cost required, it communicates directly with the manifold.


• Fully Integrated Manifold
  • Manifold takes up less space than multiple components for a clean install, and it has Bluetooth built right in for mobile support.


• 5 Custom Presets
  • System quickly adjusts to and maintains height and/or pressure presets with the push of a button.
  • User adjustable compressor kick-on / cut-off pressures
  • Auto calibration
• Best System Value
  • System comes with everything for height and pressure control up front for the best value. If you dont install your height sensors right away, you can still start with pressure mode first without additional upgrade cost later.


• Height Sensing Technology
  • Ability to control the system with height sensors, including our unique sensor arm that is designed to reduce tension and torture tested over 3,000,000 cycles for maximum performance.


• Anti-Cross Loading + Axle Equalization
  • With both pressure and height sensing technology combined, the system can achieve the right height without radical differences in pressure. This is important for changes in load or driving conditions such as cornering.


• Show Mode
  • Turn your car off and still control your system via the controller or FREE mobile app.


• Rise On Start
  • Turn the key and the system takes you right to ride height or ride pressure.


• Easy Install
  • Built-In Manifold and ECU makes installation a breeze
  • Key components require less drilling, wiring, and take up less space than other air management systems for a cleaner install.


• Customer Service
  • Backed by our dedicated customer service team.


• Limited Lifetime Warranty
  • Warranted to the original retail purchaser against manufacturing defects.

AIR LIFT SUSPENSION

Get the stance you want and the performance you need with Air Lifts air suspension kits! Every kit we offer is fully engineered to properly fit your vehicle, provide unmatched static drop, and deliver ride and handling capability that exceeds factory suspensions. No other lowering suspension provides a more versatile package for daily use.

PERFORMANCE SERIES KITS

Performance Series air suspension kits are the ultimate suspension choice for your ride. All applications feature lightweight monotube shocks/struts with 30-level adjustable damping. Adjustable camber plates are integrated into the struts top for perfect alignment or wheel fitment and are engineered with high quality spherical bearing upper mounts, providing instant damper response and precise steering feel.

Another great feature is that the Performance Series shocks/struts have threaded bodies with adjustable mounts; this allows you to alter the factory set heights to better suit your situation without sacrificing suspension travel. As with the Slam Series kits, Air Lift Performance provides everything needed for easy installation. And while everyone loves the way their car looks laid out on the ground, these Performance Series kits are best enjoyed while in motion! The huge range of damping, mated with our progressive rate air springs, allows you to have a comfortable ride on the highway. And with the twist of the damping knob, you have a track-ready suspension poised to cut a fast lap.

Everything about the Performance Series kits is geared towards maximizing your vehicles suspension: lowest drop, best ride, lowest weight, most adjustability, and incredible handling. All proven on racetracks and back roads around the world.

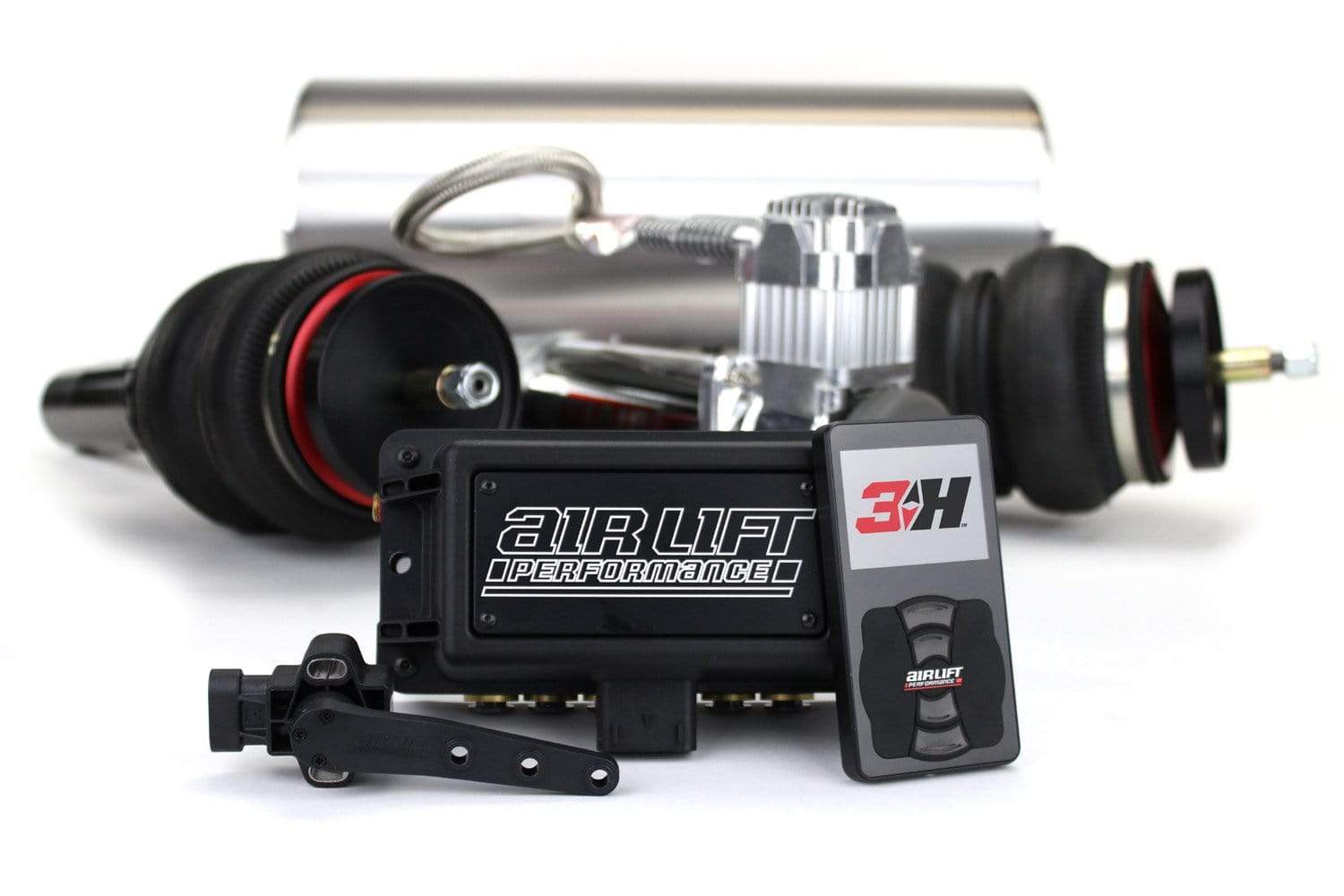

KIT CONTENTS

• Complete Air Lift Perforamnce 3H System
• Air Lift Front Suspension of your choice
• Air Lift Rear Suspension of your choice
• Aluminum Air Tank of your choice
• Tank Fitting Pack
• Compressor(s) of your choice
• 40amp Relay(s) for your compressor(s)
• Relay Wiring Kit(s)
• Inflation Valve
• Air Line Cutter Tool
• (1) 60ft Bundle of DOT Approved Air Line
