034 Motorsport Billet Aluminum Rear Subframe Mount Insert Kit - BMW E9X | 034-601-0047

034Motorsport is pleased to present Billet Aluminum Rear Subframe Mount Inserts for E9X BMW models! E9X BMWs use rubber rear subframe mounts which deflect under load, causing the rear end to feel vague and loose, as well as leading to less-than-optimal suspension geometry and increased understeer. These precision-machined billet aluminum inserts are designed to fill voids in the factory rear subframe mounts, and limit subframe movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. The result is a more refined, connected driving experience, as well as improved effectiveness of aftermarket rear sway bar upgrades and suspension components.

Designed to work in conjunction with the factory rubber mounts, this insert package was engineered using CAD software and thoroughly tested and refined to provide a significant improvement in handling performance and feel.

These inserts were tested extensively on multiple enthusiast-owned E9X BMW models before release. Installation is very simple and is completely reversible.

• T6-6061 Billet Aluminum Construction
• CNC-Machined In-House
• Clear Anodized Finish for Durability
• Engineered to Fill Voids in Factory Rear Subframe Mounts
• Helps Maintain Proper Suspension Geometry When Cornering
• Reduces Rear Subframe Movement During Launches & Acceleration
• Improves Shifting Feel, Resulting in Crisper Shifts
• Virtually No Additional NVH Transfer Inside Cabin
• Easy, Straightforward Installation

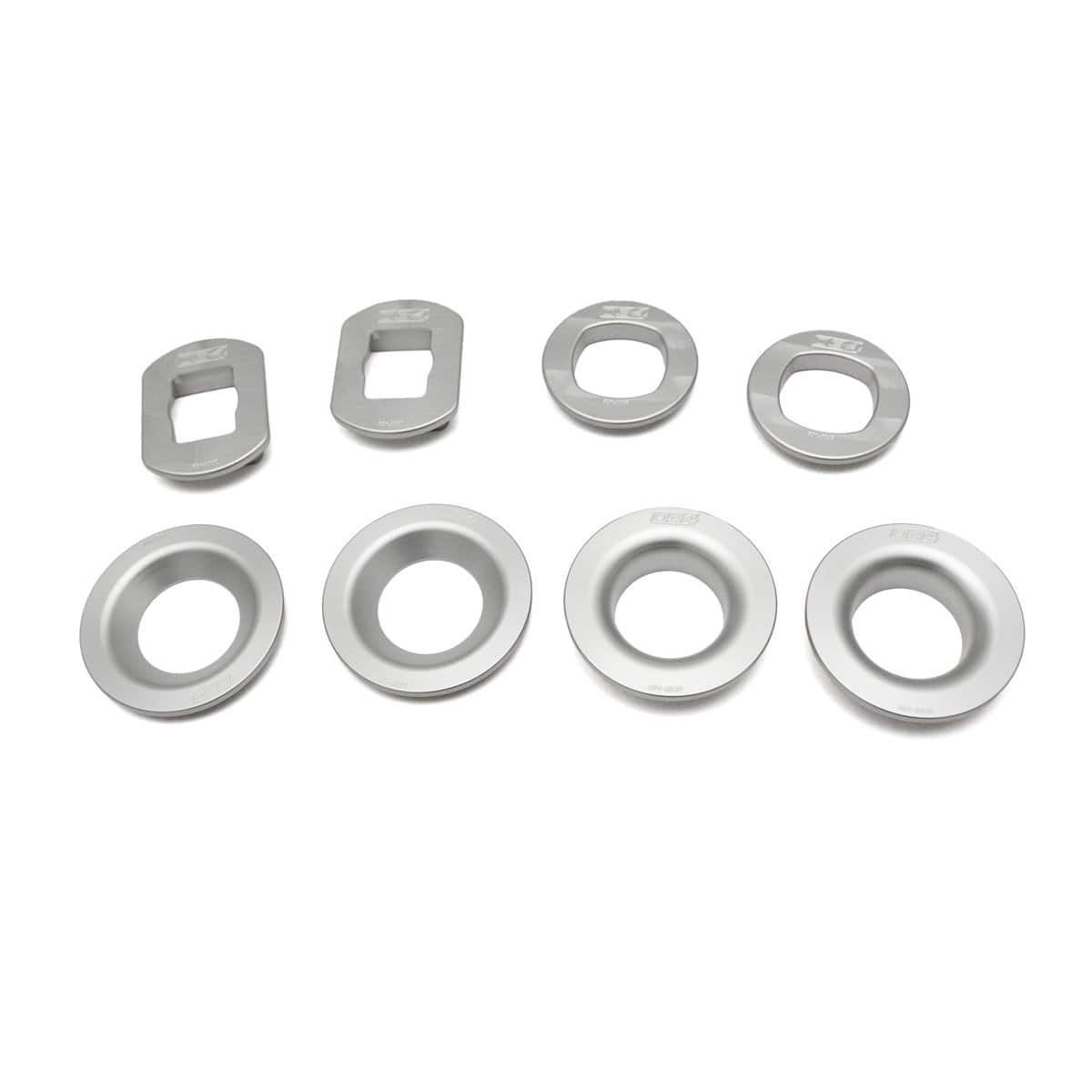

• 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Front Upper (Pair)
• 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Front Lower (Pair)
• 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Rear Upper (Pair)
• 034Motorsport Billet Aluminum E9X BMW Rear Subframe Insert - Rear Lower (Pair)

• E81 1-Series (02/2006 — 12/2011)
• E87 1-Series (02/2003 — 02/2007)
• E87 1-Series LCI (01/2006 — 06/2011)
• E88 1-Series (11/2006 — 10/2013)
• E82 1-Series (11/2006 — 10/2013)
• E90 3-Series (02/2004 — 09/2008)
• E90 3-Series LCI (07/2007 — 02/2012)
• E91 3-Series (02/2004 — 08/2008)
• E91 3-Series LCI (07/2007 — 05/2012)
• E92 3-Series (05/2005 — 02/2010)
• E92 3-Series LCI (11/2008 — 06/2013)
• E93 3-Series (09/2005 — 02/2010)
• E93 3-Series LCI (11/2008 — 10/2013)
