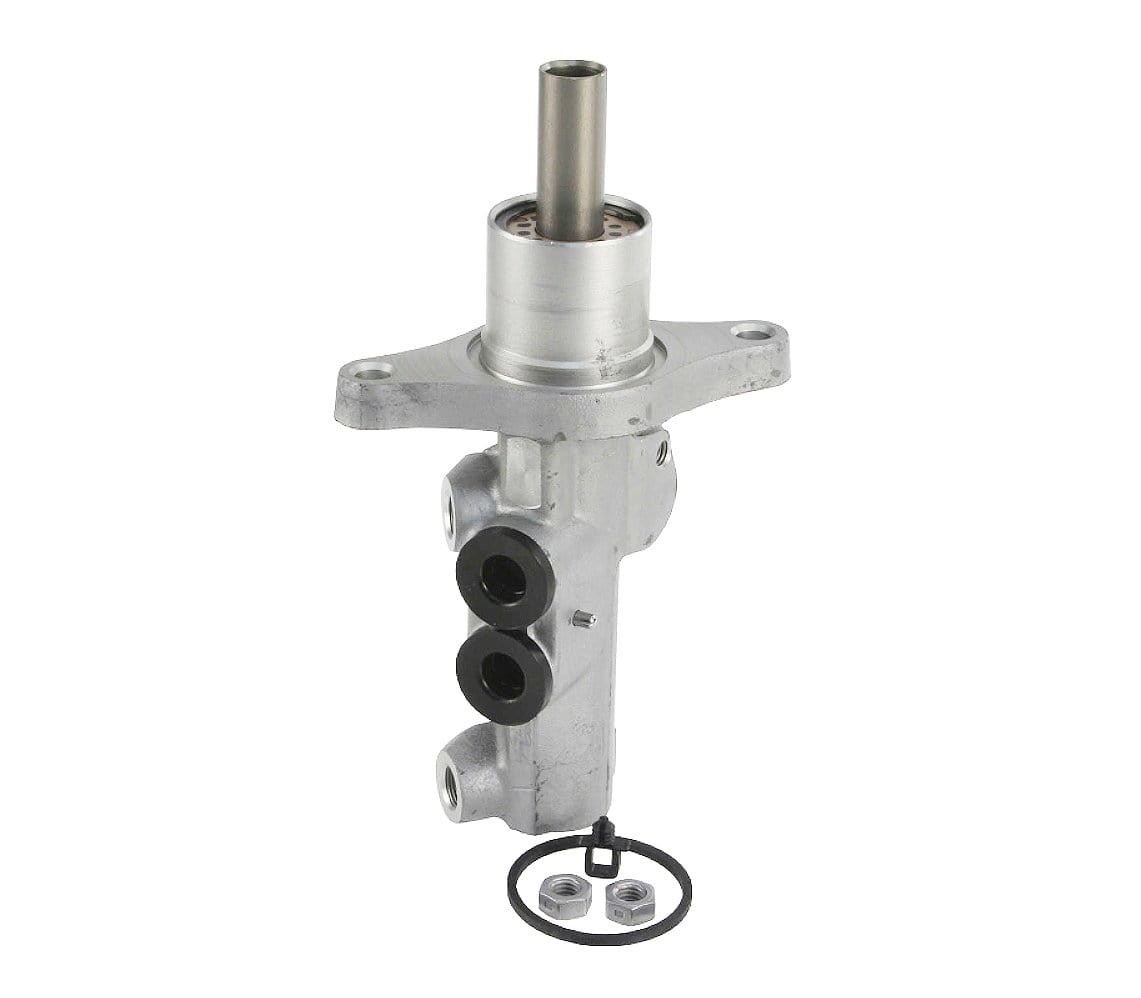

Brake Master Cylinder - VW/Audi / Beetle / Mk5 GTI FSi / Mk5 Golf TDi / Mk6 / A3 8P | 1K1614019K-ATE

As the basis for a standardized ATE concept for future tandem master cylinders, ATE has developed a new plunger generation which has many technical enhancements and advantages.

Features and Benefits:

• Short closing paths
• Low volume uptake
• High efficiency
• Low throttling / after-suction resistance
• Low pressure differential between primary and secondary circuits
• Good bleedability
• Cr6-free surfaces for vehicles built from July 2007 (as required by law)
• Central valve version suitable for ABS
• Compact design - ideal for installation in small spaces
• Reduced weight - by roughly 20% compared to conventional central valve technology
• Fewer components - almost half as many as compared to conventional technologies
• Modular system - diameters from 14.29 to 31.75mm and strokes up to 46mm
• Low volume uptake - minimized elastic deformations due to smaller seals
• Sealing cups supported in the housing - robustness against soiling and wear; longer life
• Cr6-free surfaces for vehicles built from July 2007 (as required by law)
• Suitable for ABS



  Part #'s

  1K1-614-019-K / 1K1614019 K / 1K1 614 019 K / 1K1614019K

  1K1-614-019 / 1K1 614 019 / 1K1614019
