CJM Industries Chassis Mounted Splitter - MK6 Golf R (2010-2012) V4 | 2023166-6Rv4CS

All sales are final, no returns or refunds. This item does not qualify for free shipping

This product ships in 3-5 business days.

Made in USA - 2 year warranty.

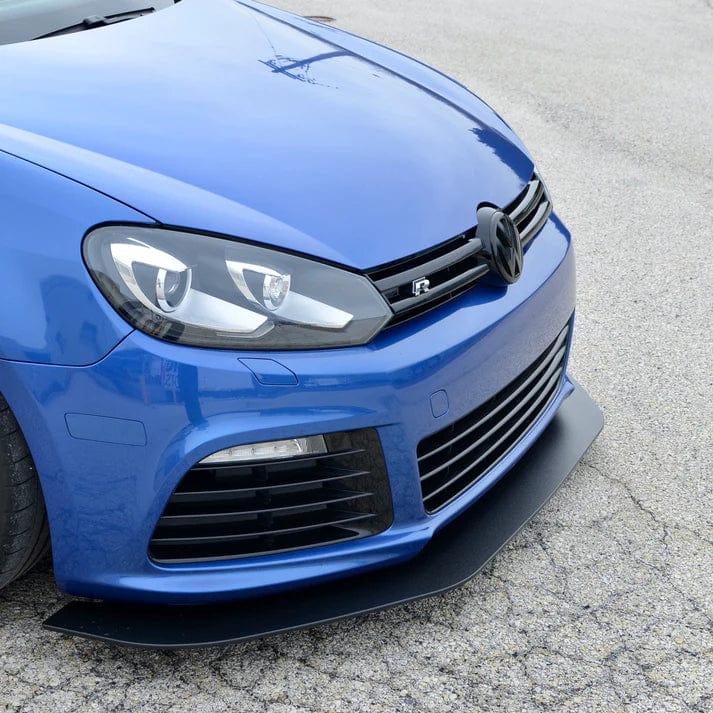

Our V4 chassis mounted splitter is perfect for street and show cars looking for something more durable than a bumper mounted lip. The blade is compatible with V2 & V3 kits if you ever decide to swap it out.

Please read these product details thoroughly for fitment and installation requirements. This can be completed in a driveway with basic tools. Please review the install sheet and tool list to understand what is involved in the process. Professional install recommended if you are not comfortable removing the front crash bar.

• Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
• This will not fit with any front mount/twin intercooler.

• If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
• Requires drilling two 11mm holes in the crash bar for install.
• Trimming the factory splash guard is required (not the bumper). Install sheet can be reviewed here.
• Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice.

Each Order includes:

- Top Driver & Passenger side Bracket

- 2x bottom Brackets with pre-installed rivnuts for the lip/blade

- Center support brace with pre-installed rivnuts for the lip/blade

- Flange head bolts and nylock hardware for adjustable height settings

- M10 Flange head bolts and nylock hardware to mount to the Chassis.

- M10 countersunk hardware to attach a blade to brackets (3/8" or thinner blade)

- Blue medium threadlocker for blade bolts.

- Blade - 9mm thick, 60mm lip -  black textured UV resistant plastic with a radiused edge and pre drilled countersunk holes and an air dam that contours to the lower edge of the bumper.

- Side support rods - Aluminum rods, coated steel heims, stainless hardware. These are strongly recommended for all blades except carbon fiber.

- Printed Install Sheet with pictures

- Template to trim plastic splash guard

Add on options (not included):

- Drill bit - 11mm step bit & 4mm pilot bit


Weights -

full assembly - 29lbs

Brackets ship in a 40"x8"x8" box

Blades ship in a 24"x72"x1" box

Disclaimer - Off road use only, not intended to be used on public roads. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
