CJM Industries MK6 Golf YRC Wing V2 | 2023180-6YRC-RA

All sales are final, no returns or refunds. This item does not qualify for free shipping. This product is assembled to order and ships 3-4 weeks after the order is placed. Made in USA.

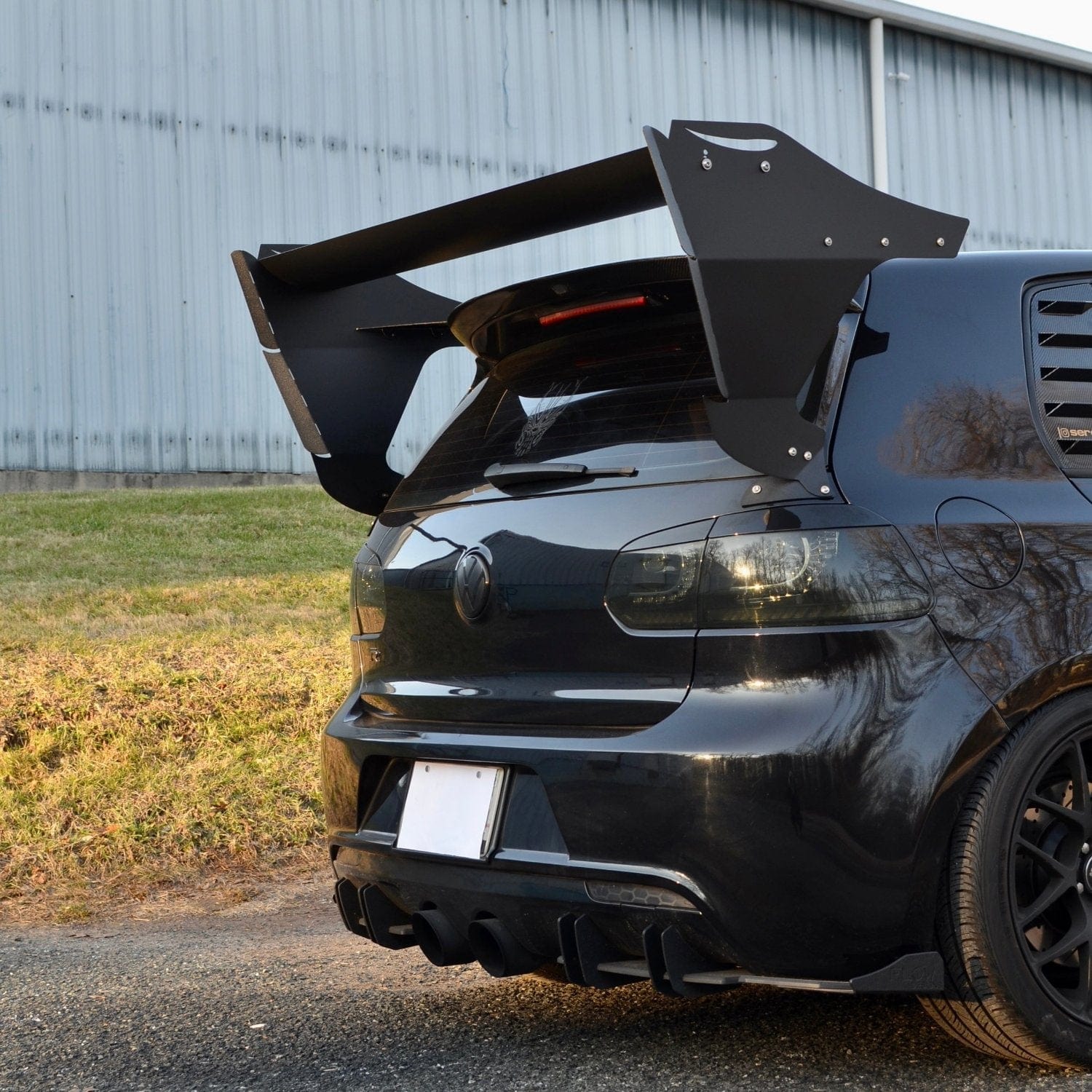

Designed to complement the lines of the MK6 Golf platform and add class-leading downforce to the rear of the vehicle, this modular wing can be run at angles of attack from 0 - 10 degrees (in 5 degree increments) allowing the flexibility to balance aero upgrades at the front or change your setup from track to track.

Made from laser cut 5052 plate & extruded 6061 aerospace aluminum, the main airfoil & dual secondary canards are both strong and lightweight (entire assembly weighs less than 17 lbs!) Wing kit comes complete with endplates, all necessary brackets, Neoprene damping material, slip washers & stainless button-head mounting hardware.

The airfoil is a highly efficient 55” extrusion with an 8.8” chord and deep cambered profile, offering a drag ratio of between 12.8:1 and 9.08:1 (depending on AOA.) See performance data chart in images below.

Mounting requires drilling of 8 holes in the factory hatch & spoiler to receive stainless M6 rivet nuts. The entire assembly can be removed from your vehicle in minutes with 10 screws. Raw aluminum finish, matte black and custom-color powder coating options are available. (See note below for custom orders)

Design & Development
The YRC wing system has been developed over multiple months using CFD (computational fluid dynamics) simulations to maximize downforce, drag and longitudinal stability. YRC performed all of our simulations on a 1:1 MK6 GTI model to gather the most accurate data possible.

If you research providers of aerodynamic parts, you may find that many provide only free-stream data for their airfoils, either because their wing was designed to be universal or it yields more impressive numbers when run under ideal conditions. The YRC wing kit has been developed specifically for the MK6 platform to address some of the unique challenges of adding an effective wing to a hatchback. Our end-mounted airfoil and oversized endplates ensure uninterrupted flow to the aerodynamic surfaces, increasing underwing suction, minimizing drag and improving the overall efficiency of the system.

To learn more about the steps in our CFD design, simulation and testing process, YRC has a great overview here.

Each Order includes:

- Wing foil

- Wing uprights/endplates

- Mounting plates & hardware

- Printed Install Sheet with pictures

- Raw Aluminum foil and parts

Options:

- All parts can be powder coated satin textured black for corrosion resistance.

Special tools required for install (not included):

9mm Drill Bit
Rivet Nut / Nutsert Tool

Disclaimer -

Off road use only, not intended to be used on public roads. This product is not DOT approved. This product may alter the handling of the vehicle. The buyer is responsible for all modifications made to your car. CJM Industries llc & Yeti Race Craft Inc. assumes no responsibility or liability as a result from altering your car with our products. This product may not comply with Federal, State, Province, and/or Local laws, ordinances, and regulations. Buyer takes all responsibility to conform to all applicable laws and regulations for road use, especially pertaining to safety.
