CJM Industries - MK7 Golf R Chassis mounted splitter w/ Air Dam V2 (2015-2017) | 2022124-7RCSAD

All sales are final, no returns or refunds. This item does not qualify for free shipping. This product ships in 3-5 business days. Made in USA - 2 year warranty.

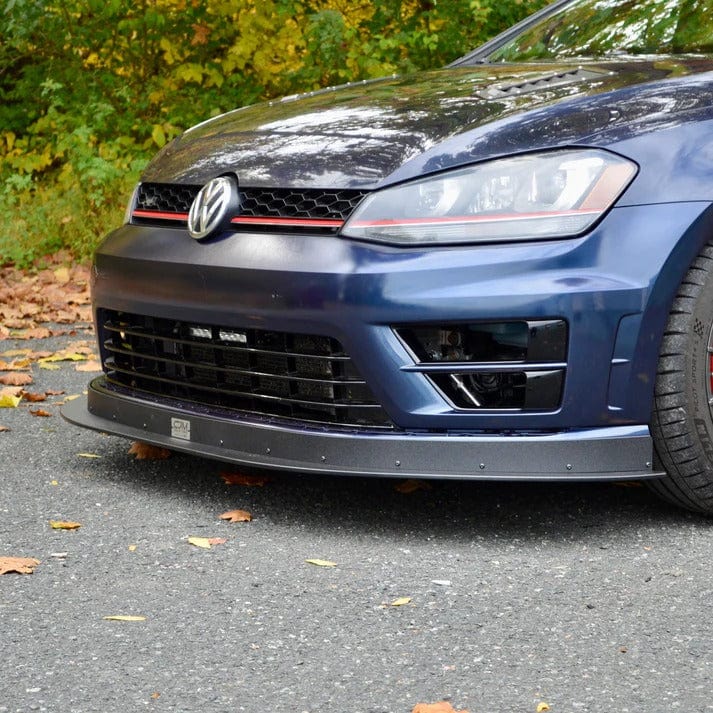

Our V2 chassis mounted splitter now includes an integrated air dam. The new blade is compatible with V1 bracket kits.

Please read these product details thoroughly for fitment and installation requirements. This can be completed in a driveway with basic tools. Professional install recommended if you are not comfortable removing the front crash bar.

• Brackets & rods come in raw aluminum, expect some visible imperfections in the material from the cutting and bending process.
• This will not fit with any front mount/twin intercooler.

• If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
• Requires drilling four 11mm holes in the crash bar for install.
• Trimming of the factory splash guard is required (not the bumper). Splash guard trimming template included.
• Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice.
• Designed for blades with up to 80mm of stick-out. Rods suggested on blades over 70mm to prevent flutter of the front edge. Warranty is void if you use a blade larger than 70mm without front chassis mounted rods.
• The brackets and rods are raw aluminum and contain zinc coated steel hardware.
• If you are in a region that salts the roads in the winter, this will increase the need to clean and maintain each component more frequently. We can apply a clear coating called Sharkhide if requested, but it will not last forever, you will need to recoat them over time to If you want to prevent discoloration over time. You can also powdercoat or paint with a rattle can for easier maintenance.

Each Order includes:

- Top Driver & Passenger side Bracket

- 2x bottom Brackets with pre-installed rivnuts for the lip/blade

- Center support brace with pre-installed rivnuts for the lip/blade

- Flange head bolts and nylock hardware for adjustable height settings

- M10 Flange head bolts and nylock hardware to mount to the Chassis.

- M10 countersunk hardware to attach a blade to brackets (3/8" or thinner blade)

- Blue medium threadlocker for blade bolts.

- Blade - 9mm thick, 60mm lip -  black textured UV resistant plastic with a radiused edge and pre drilled countersunk holes and an air dam that contours to the lower edge of the bumper.

- Side support rods - Aluminum rods, coated steel heims, stainless hardware. These are strongly recommended for all blades except carbon fiber.
