Coilover Installation Kit - Audi / B8 / A4 / A5 / S4 / S5 | COIK-B8A4-KT

This Kit provides you with everything you need to professional install Shocks or Coilovers on to your B8 Audi A4 / A5 / S4 / S5. It replaces all bushings connected to the shock system ensuring you return to that same ride feel when the car was driven off the lot.

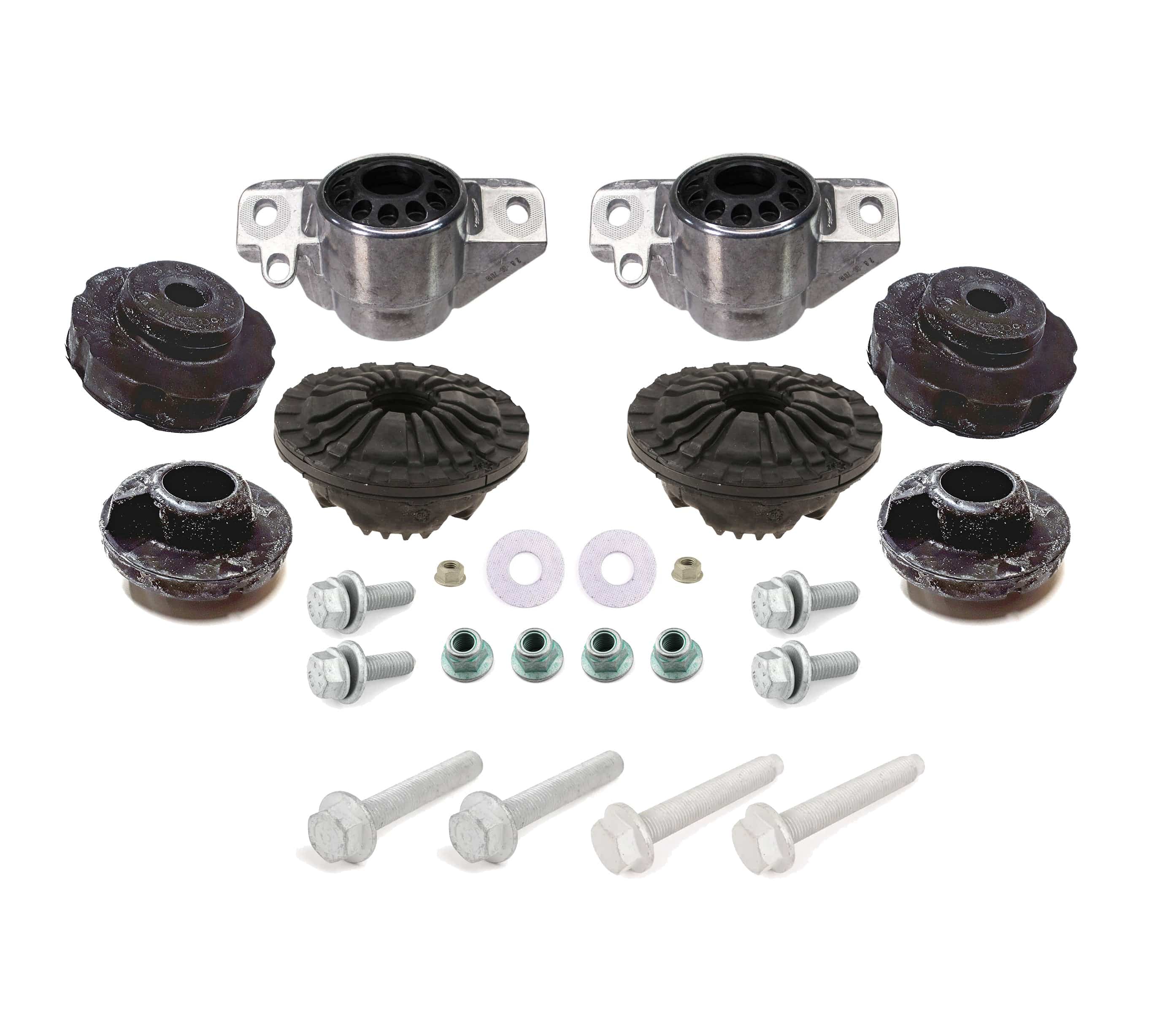

Kit Includes:


- (2)  Shock Absorber Bellow Washers 34x4 (Genuine VW/Audi)

- (2) Self-locking Nuts M10x1.5 (Genuine VW/Audi)

- (2) Rear Upper Spring Plates (Genuine VW/Audi)

- (2) Coil Spring Insulators (Genuine VW/Audi)

- (4) M10x35 Bolts (Genuine VW/Audi)

- (2) Shock Mounts Rear (Rein)

- (4) Front Strut Pinch Nuts M12x1.5 (Genuine VW/Audi)

- (2) Hex Bolts M12x1.5x80 (Genuine VW/Audi)

- (2) Hex Bolts M14x1.5x90 (Genuine VW/Audi)

- (2) Strut Mount Front Uppers (Lemforder)




Part #'s


Shock Absorber Bellow Washers 34x4

WHT-002-389 / WHT 002 389 / WHT002389


Self-locking Nuts M10x1.5

N10-286-110 / N10 286 110

N10-286-102 / N10 286 102 / N10286102


Rear Upper Spring Plates

8K0-512-149-C / 8K0512149 C / 8K0 512 149 C / 8K0512149C

8K0-512-149-B / 8K0512149 B / 8K0 512 149 B / 8K0512149B

8K0-512-149 / 8K0 512 149 / 8K0512149


Coil Spring Insulators

8K0-512-297-E / 8K0512297 E / 8K0 512 297 E / 8K0512297E

8K0-512-297-C / 8K0512297 C / 8K0 512 297 C / 8K0512297C


Bolt M10x35

N91-066-101 / N91 066 101 / N91066101


Shock Mount Rear

8K0-513-353-E / 8K0513353 E / 8K0 513 353 E / 8K0513353E

8K0-513-353-F / 8K0513353 F / 8K0 513 353 F / 8K0513353F


Front Strut Pinch Nut (M12x1.5)

N10-106-402 / N10 106 402 / N10106402


Hex Bolt (M12x1.5x80)

N10-640-501 / N10 640 501


Hex Bolt (M14x1.5x90)

N10-500-802 / N10 500 802 / N10500802


Strut Mount Front Upper

8K0-412-377-C / 8K0412377 C / 8K0 412 377 C / 8K0412377C

8K0-412-377-A / 8K0412377 A / 8K0 412 377 A / 8K0412377A
