CTS Turbo Turbo Outlet Pipe - VW/Audi / 1.8T /2.0T (EA888.1 and EA888.3)
CTS Turbo Turbo Outlet Pipe - VW/Audi / 1.8T /2.0T (EA888.1 and EA888.3) | CTS-IT-210
- Share:
)
Select Your Car to Verify Fitment
Product Details: CTS Turbo Turbo Outlet Pipe - VW/Audi / 1.8T /2.0T (EA888.1 and EA888.3)
Description

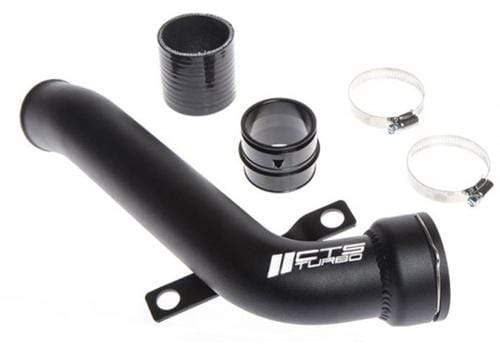

CTS Turbo VW/Audi 1.8T/2.0T TSI Turbo Outlet Pipe (EA888.1 and EA888.3) is designed to replace the narrow ‘pancake’ pipe that comes as factory equipment on your vehicle.
Our Turbo Outlet Pipe features 2.25″ diameter aluminum tube for optimized flow. The CNC machined billet mating flange makes connecting this TOP to your FMIC literally a snap. The billet anodized turbo to TOP connector, 2.25″ coupler and premium clamps top this package off. If you’re looking for a simple bolt-on modification that will optimize flow and increase power, then this part is for you.
Product Details:
- 2.25” Mandrel bent tube
- CNC machined turbo discharge flange
- CNC machined FMIC mating flange
- 4-Ply silicon connectors with stainless steel clamps
- Black powder coated finish
- Laser cut mounting bracket
- Designed for fitment on cars with factory K03 or IHI turbo
- Designed for EA888.1 Gen1 TSI and EA888.3 Gen3 TSI (including B-cycle engines)
Fitment:
- 2009-2014 VW GTI (MK6 only)
- 2009-2017 VW Jetta/GLI (MK6 only, including Gen3 TSI)
- 2012-2018 VW Passat (B7 only, including Gen3 TSI, including B-cycle)
- 2012-2018 VW Bettle (MK2 only, including Gen3 TSI, including B-cycle)
- 2010-2014 Audi A3 TSI (8P only)
Download Installation Guide
⚠️CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
4.50
Based on 14 reviews
Sort
Clear Filters
Order By
Newest First
Oldest First
Most Popular
Highest Rating
Reviews With
Any Media
Images
Videos
Breakdown
12
0
0
1
1
Product Reviews
Company
Questions
CTS TSI Turbo Outlet Pipe | 2008.5-up
Easy installation, however I’ve been running into the issue where the lower adapter connection to the Intercooler hose will pop off while I’m in the higher boost range, while inspecting the connection I would say that the adapter provided doesn’t seem to hold a good seal even after replacing the o ring seals. Forcing me to revert to stock again.
Reply:
We appreciate your feedback regarding the installation and performance of our product. We apologize for the inconvenience you've experienced with the lower adapter connection not holding a good seal, even after replacing the O-ring seals. Please contact our customer support team at Support@urotuning.com so that we can provide you with a solution or offer further assistance. Your input is valuable to us, and we want to ensure that you have a positive experience with our products. Thank you for bringing this matter to our attention, and we apologize for any inconvenience you've faced.
5 people found this review helpful.
Was this review helpful?
2 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Very excellent quality. The finish on the pipe had no imperfections and was able to be installed in minutes. The included clamps and couplers were of good quality as well.
1 person found this review helpful.
Was this review helpful?
3 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Reviewer didn't leave any comments
Was this review helpful?
3 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Definitely would recommend makes Turbo spool up faster and louder turbo noises
Was this review helpful?
3 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Great quality with very easy install, looks great and much better than the pancake pipe!!
Was this review helpful?
4 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Fits perfectly in my 16 GLi. Took maybe 15 min to install. Super easy
Was this review helpful?
4 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
I have a 2017 VW Passat 1.8T Gen3 and it fits and work well. VW uses these pancake pipes and this and the down pipe are part of it. Removing this restriction made a difference. Be sure to save the rubber grommets and turbo o-ring. The grommets are sort of a PITA to put on the pipe correctly. I installed this along with the throttle piping so can't tell you how much of a difference the outlet pipe makes. Both upgrades made a noticeable difference and worth the money. It works great with my AEM intake, Magnaflow exhaust. CTS down pipe and tune is next. FYI, the IE turbo inlet elbow DOES NOT FIT this car.
3 people found this review helpful.
Was this review helpful?
4 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Easy install. If pairing with the Turbo Muffler Delete I would recommend cutting that coupler 1 1/2 inches for a better fitment.
Was this review helpful?
4 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
Easy upgrade that fits like OEM while getting rid of the pancake style pipe VW uses letting the engine breath freely.
Was this review helpful?
4 years ago
CTS TSI Turbo Outlet Pipe | 2008.5-up
I liked the overall design of the pipe along with the silicone coupler but in my opinion the locking arch clip used to hold the pipe and the coupler together could be a lot better, considering that there is charged air bursting inside the cts turbo outlet pipe and through the silicone coupler. In my case the locking arc clip proved to be useless because the coupler kept popping of the cts turbo pipe low boost pressure. Even with light hand strength the coupler would rotate and did not feel secured to the cts turbo pipe. I had to install custom clamps along with duct tape to prevent the separation of the coupler and the actual pipe.
2 people found this review helpful.
Was this review helpful?
6 years ago
