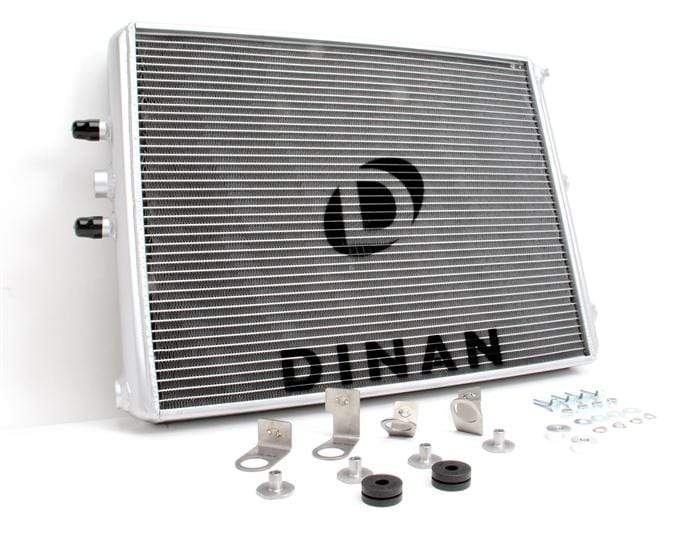

Dinan High Performance Heat Exchanger for BMW | F8X | M3 | M4 | D780-0001A

Heat is the enemy of performance. Keep temps down and performance will go up as a result of increased efficiency. It's really as simple as that.

In stock trim, testing made it painfully obviously that cooling was going to hold an even more vital role on the F8X platform to achieve maximum results. The stock cooling system heat soaks after only 3 pulls and allows the engine air intake temperatures (IAT) to rise dangerously. The ECU must then reduce engine power to prevent detonation. With the Dinan high performance heat exchanger the vehicle does not heat soak even after 7 pulls; more than twice the effectiveness of a stock setup!

Some may ask why change the heat exchanger and not the intercooler itself? Wouldn't it be more beneficial to go directly to the source of the charge air? The simple answer is yes, but at a cost. The stock system cools the intake charge by using a water-to-air intercooler, an expensive piece to engineer. The cooling circuit for the water that feeds the intercooler uses a primary cooler (heat exchanger) and a smaller secondary cooler in front of the passenger side wheel. Through rigorous testing of all 3 of those components and multiple combinations therein it was discovered that the most effective performance per dollar solution was replacing the heat exchanger with a larger unit.

Further testing focused on the heat exchanger produced the optimized design you see before you. With 60% more volume and 19% more face area than stock along with being a whopping 40mm thick (24mm thick stock) it becomes quickly apparent how heat soak is averted with the improved setup. While the unit could be physically thicker the 40mm dimension was ultimately chosen with consideration of airflow requirements of the main radiator which is located directly behind the heat exchanger. A thicker core would diminish airflow and sacrifice normal engine cooling which would be potentially detrimental to the long term health of the engine. The increased physical stature of the heat exchanger allows reduction in water temperatures to the intercooler an average of 9° across the RPM range. The colder water entering the intercooler then improves is efficiency and allows the intake air to be cooled by an additional 6° average across the RPM range compared to the stock unit. The reduction in intake air results in an impressive +10 HP and +20 ft-lb of torque gain without any changes in the engine tune. The cooling unlocks some significant additional power when paired with the stage 3 DINANTRONICS Performance Tuner.

Features/Benefits:

• +10 HP / +20 lb/ft without a tune!
• Avoid going into limp mode during high performance driving
• 60% more volume than the stock heat exchanger
• 19% more surface area
• 40mm thick - compared to 24mm thickness of the stock heat exchanger
• 9° average water temperature reduction to the intercooler across the RPM range. Colder water improves intercooler efficiency and allows the intake air to be cooled by an additional 6° average across the RPM range compared to stock.
• Significant reduction in tendency to heat soak
• Rubber mounted for vibration isolation
• Track tested to ensure consistent performance

VEHICLE FITMENT

• F80 BMW M3 - S55 3.0L
• F82 BMW M4 - S55 3.0L
• F83 BMW M4 - S55 3.0L
