Fabless 4-Cyl/02M Complete Mount Kit (OEM Position) - VW MK3 | 29-2142

The Fabless MK3 4-Cylinder 02M/02Q Complete Mount Kit is a full mount solution, providing an upgraded front cross member and all the mounts needed to install a 1.8T, 1.8L 8v/16v, 2.0L ABA/16v or ALH in your VW MK3.

Our block mount is tested in ALH applications for turbo clearance. Made from mild steel, beautifully TIG Welded and coated with black powder coat for durability.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height (top position) & a 16mm drop with MK3/Corrado VR6 Subframe (lower setting). The lower setting on the mount is useful for additional hood clearance.

These mounts keep the engine in OEM position, which means 02M axles on the market are compatible.

NOTE: The subframe cup has to be moved to clear the inner CV on the 02M transmission

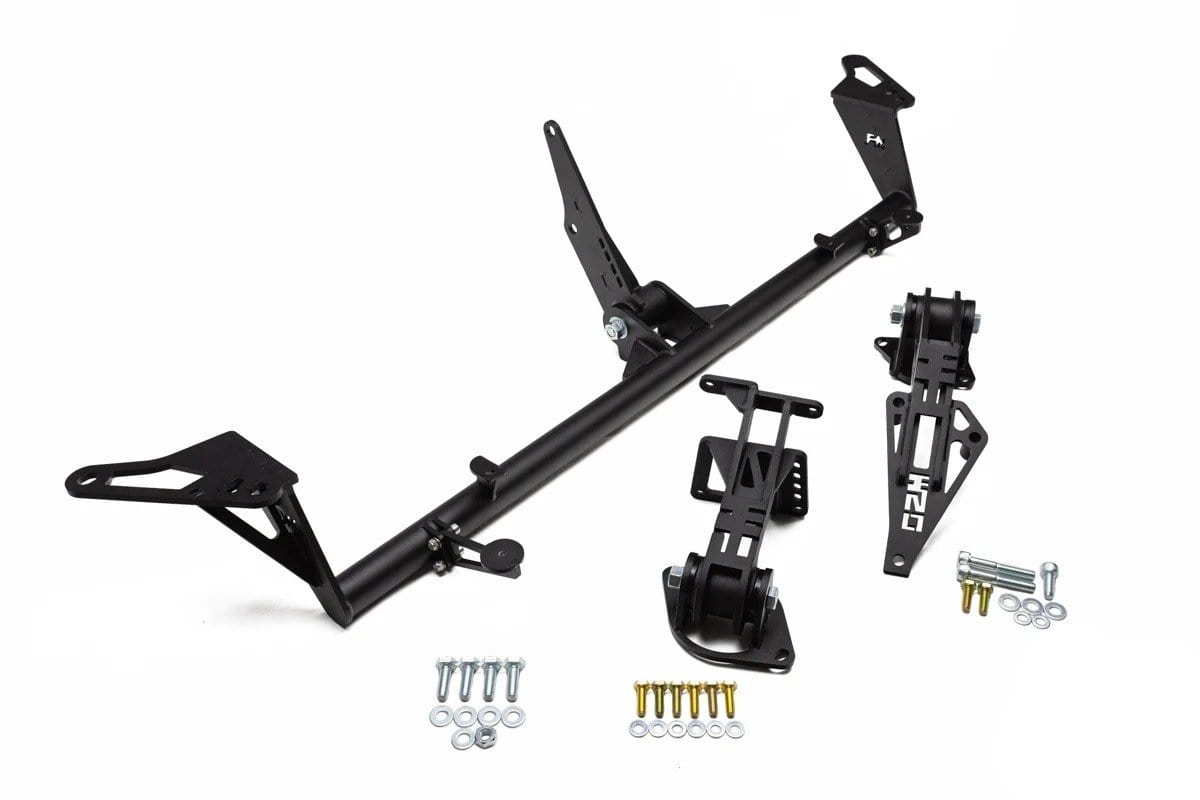

What’s Included

• 4-CYL Block Mount with subframe Perch
• 02M MK4 Transmission Mount with subframe Perch
• MK3 Tubular Front Cross Bar with Front Engine Mount
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Adjustable Upper Rad Mounts (VR6 Radiator) *MK2 application only

• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK3 Golf/Jetta LHD & RHD

Engines

• 1.8T

• 1.8L 8v/16v
• 2.0L ABA/16v

• G60
• ALH *tested for turbo clearance

Transmissions

• 02M/02Q MK4 6-Speed FWD/AWD


Axles

• 02M Compatible Axles (not included)

Radiators

• Compatible with North American and European Rad supports and radiators.

Fans

A factory fan set up will work, however if space or engine cooling is a concern, a slim fan set up with Spal fans is recommended. Check out our Engine Cooling dropdown under Swap Parts.
