Fabless 4-Cyl/DSG Mount Kit - VW MK2 | MK3 | Corrado | 29-2106

The Fabless 4-Cyl/DSG Mount Kit provides a solution to install many 4-Cylinder Engines (1.8T, 2.0T FSI, 1.8L 8v/16v, 2.0L ABA/16v, ALH) with a DSG Transmission in a MK2, Corrado or MK3. Our block mount is tested in ALH & FSI application for turbo clearance.

Available in both subframe mounting options; MK2/Corrado G60 subframe or MK3/Corrado VR6 subframe.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height (top position) & up to a 16mm drop (lower setting); 16mm drop with MK3/Corrado VR6 Subframe, 8mm drop with MK2/Corrado G60 subframe selection. The lower setting on the mount is useful for additional hood clearance.

These mounts keep the engine in OEM position, which means DSG axles on the market are compatible.

NOTE: The subframe cup has to be moved to clear the inner CV on the DSG transmission.

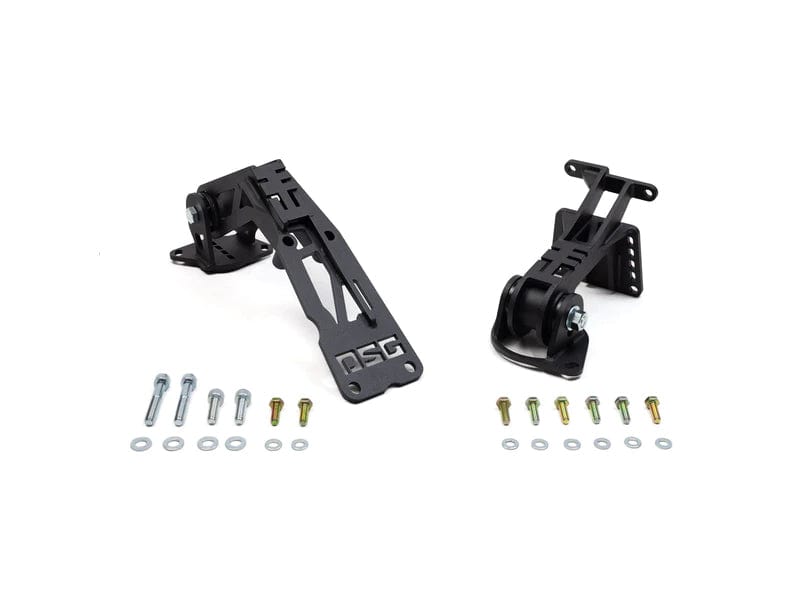

What’s Included

• 4-Cyl Block Mount with subframe Perch
• DSG Transmission Mount with subframe Perch
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Tubular Front Cross Bar - VW MK2/Corrado
• Tubular Front Cross Bar - VW MK3
• Adjustable Upper Rad Mounts (VR6 Radiator) *MK2 application only
• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK2 Golf/Jetta
• VW MK3 Golf/Jetta
• Corrado VR6/Corrado G60
• Passat*

*For Passat please contact for fitment.

Engines

• 1.8T

• 2.0T FSI EA113*
• 1.8L 8v/16v
• 2.0L ABA/16v

• G60
• ALH*

* 4-Cyl Block Mount is tested for turbo clearance with the VNT17 and K04 turbos. Note that the turbo outlet may need to be clocked differently, and the piping may need to be custom fabricated.

Front Cross Members

MK2

• Fabless Tubular Front Cross Bar - VW MK2 | SKU: 28-2000 & 28-2005
• Factory Front Cross Member*


* Factory Front Mount may not fit all engine applications

MK3

• Fabless Tubular Front Cross Bar - VW MK3 | SKU: 28-3000 & 28-3004
• Factory cross member*

* Factory Front Mount may not fit all engine applications

Corrado G60/VR6

• Fabless Tubular Front Cross Bar - VW MK2/Corrado | SKU: 28-2010 & 28-2014
• Factory cross member*

* Factory Front Mount may not fit all engine applications

Transmission

• DSG DQ250

In AWD/quattro applications a MK2/Corrado G60 Subframe is needed for clearance. Otherwise modification is required for the axle to clear the engine perch on the subframe.

Axles

• DSG Compatible Axles (not included)

Although our mounts are OEM position, custom axles are required to accommodate the transmission. The DSG is larger and uses larger inner CV's compared to the factory 02A Transmission in the MK2. Any axles on the market intended for an DSG in a MK2, MK3 or Corrado application will work with our mount positioning.
