Fabless FSI/02J Complete Mount Kit - VW Corrado | 29-2135

The Fabless Corrado FSI 02A/02J Complete Mount Kit is a full mount solution, providing an upgraded front cross member and all the mounts needed to install a 2.0T FSI in your VW Corrado.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions factory height (top position) & up to a 16mm drop (lower setting); 16mm drop with Corrado VR6/MK3 Subframe, 8mm drop with Corrado G60/MK2 subframe selection. The lower setting on the mount is useful for additional hood clearance.

These mounts are OEM position, which means they work with factory axles.

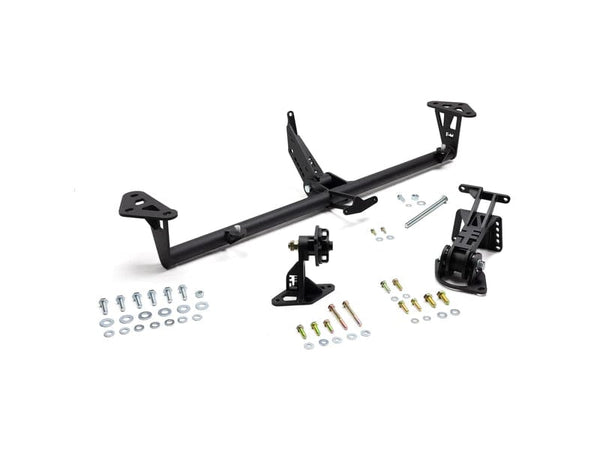

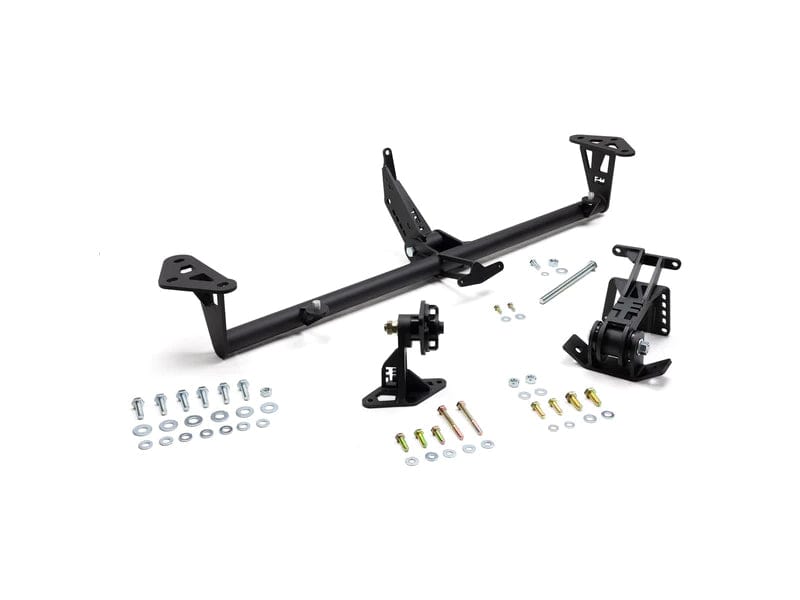

What’s Included

• FSI Block Mount with polyurethane bushing*
• 02A/02J Transmission Mount with polyurethane bushing
• Corrado Tubular Front Cross Bar with FSI Front Engine Mount
• Zinc plated mounting hardware
• Black powder coat

*FSI Block Mount is tested for turbo clearance with the VNT17 and K04 turbos. Note that the turbo outlet may need to be clocked differently, and the piping may need to be custom fabricated.

Add-Ons/Compatible Products

• Polyurethane Jack Pad

Compatibility

Vehicles

• Corrado VR6
• Corrado G60

Engine

• 2.0T FSI EA113

Transmissions

• 02A 5-Speed
• 02J 5-Speed

Axles

• Factory 02A/02J Axles

Radiators

Upper radiator tabs will need to be fabricated to secure the top of the radiator to the Corrado G60 or VR6 Upper Radiator Support.

• 8v/16v Radiator
• MK3 VR6 Radiator (North American)

Removable lower rad pins are provided for fitment of both rad types listed.

Fans

A factory fan set up will work, however if space or engine cooling is a concern, a slim fan set up with Spal fans is recommended. Check out our Engine Cooling dropdown under Swap Parts.
