Fabless VR5/02M Mount Kit (OEM Position) - VW MK2 | MK3 | Corrado | 29-2202

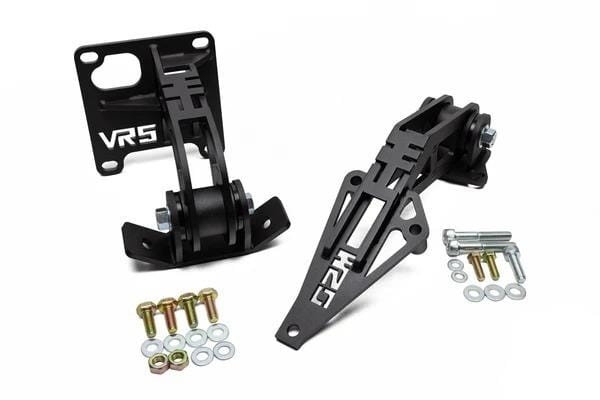

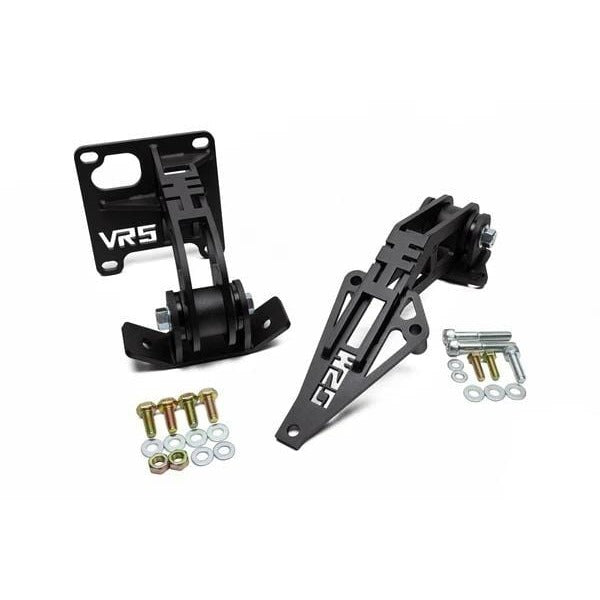

The Fabless VR5 02M/02Q Mount Kit provides a solution to install the VR5 Engine with an 02M or 02Q MK4 Transmission in a MK2, Corrado or MK3. Available in both subframe mounting options; MK2/Corrado G60 subframe or MK3/Corrado VR6 subframe. Made from mild steel, beautifully TIG Welded and coated with black powder coat for durability.

Our mounts are stronger and stiffer than the factory mounts while also providing some adjustability on the Block Mount. The block mount has two positions; factory height & up to a 16mm drop (16mm lower setting with MK3/Corrado VR6 Subframe, 8mm drop with MK2/Corrado G60 subframe selection). The lower setting on the mount is useful for additional hood clearance but it also helps to level out the engine appearance without impacting the axle fitment.

These mounts keep the engine in OEM position, which means 02M axles on the market are compatible. These mounts will have the typical factory VR lean on the top block mount setting and less lean on the lower setting.

NOTE: The subframe cup has to be moved to clear the inner CV on the 02M transmission.

What’s Included

• VR5 Block Mount with subframe Perch
• 02M MK4 Transmission Mount with subframe Perch
• Zinc plated mounting hardware
• Polyurethane bushings
• Black powder coat

Add-Ons/Compatible Products

• Tubular Front Cross Bar - VW MK2/Corrado
• Tubular Front Cross Bar - VW MK3
• Adjustable Upper Rad Mounts (VR6 Radiator) *MK2 application only
• Polyurethane Jack Pad

Compatibility

Vehicles

• VW MK2 Golf/Jetta
• VW MK3 Golf/Jetta
• Corrado VR6/Corrado G60
• Passat*

*For Passat please contact for fitment.

Engines

• 2.3L 10v VR5
• 2.3L 20v VR5

Front Cross Members

MK2/Corrado G60

• Fabless Tubular Front Cross Bar - VW MK2/Corrado with VR5/02M Front Engine Mount

MK3

• Fabless Tubular Front Cross Bar - VW MK3 with VR5/02M Front Engine Mount

Corrado VR6

• Fabless Tubular Front Cross Bar - VW MK2/Corrado with VR5/02M Front Engine Mount

Transmissions

• 02M/02Q MK4 6-Speed FWD/AWD


Axles

• 02M Compatible Axles (not included)
