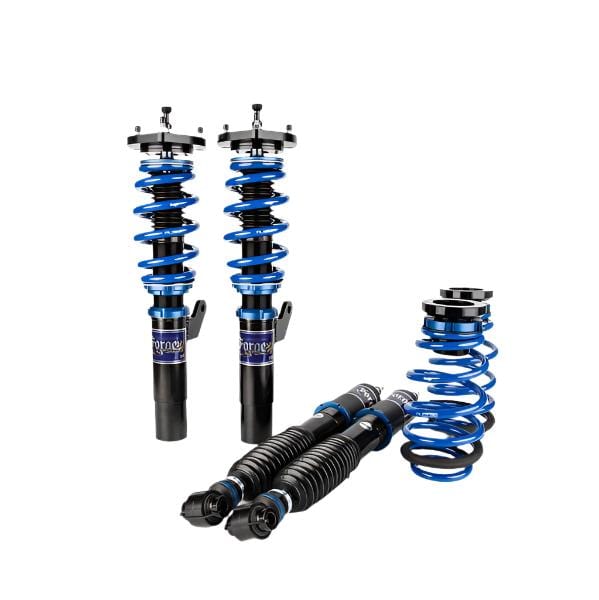

Forge Motorsport Coilover Kit - VW / MK5 / MK6 / GTI | FMSUS-MK5/6

Suspension and Spring Specification - VW Golf Mk6

The Forge Motorsport suspension gives you the best balance between performance & comfort.

With 32 levels of dampening adjustability the suspension kit can be set to any preference, for track or street driving, and adjust both bump and rebound at the same time

Pillow ball top mounts on the front shocks in order to dial IN camber

Manufactured from carbon steel 52mm diameter seamless tube (to JIS G3445 and DIN2393).

A 44mm linear characteristic internal piston provides the best dampening response for the tube diameter.

High quality mono tube shock design.

The high viscosity oil used in the damper ensures the very best and most efficient shock-absorbing action.

The length of the shock can be adjusted, preventing the need to adjust the spring perch like on a normal coil-over, and so offering the maximum shock-absorbing travel.

Cold drawn springs are manufactured from high strength steel (to SAE9252).

Spring rates of 9kg/mm (front) and 5kg/mm (rear) for Golf Mk6
