Front Sway Bar Installation Kit - VW / Mk5 / Mk6 / Golf / Jetta / Golf R / EOS / Mk5 R32 | 1K0411315K-KT

This kit contains everything you will need to install the front sway bar on your Mk5 or Mk6.

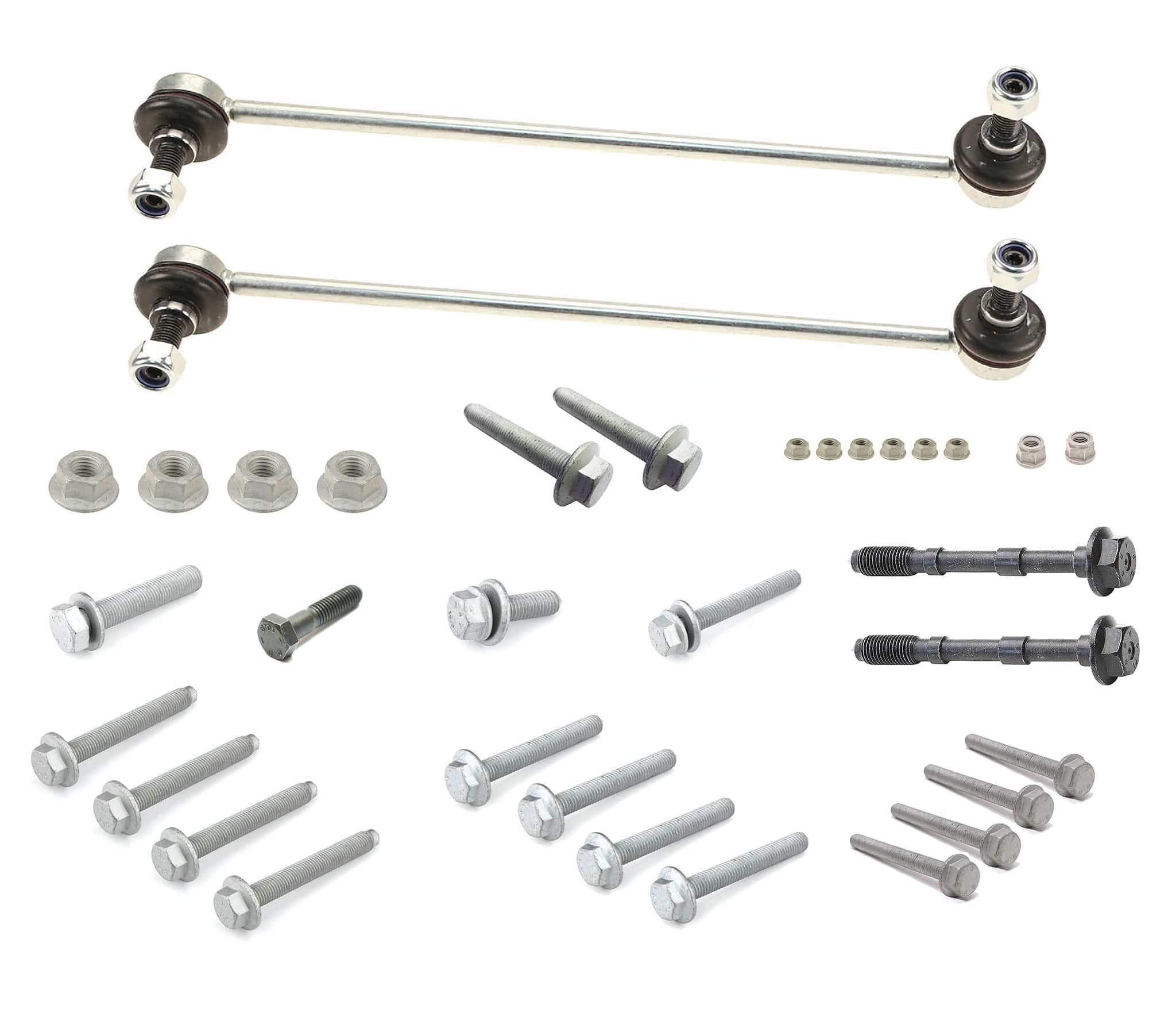

Kit includes the following components:

(4) N0150816 - Shouldered Hex Nuts - M12x1.5 (Geniune VW)

(1) N01033513 - Hex Bolt - M8x35x22 (Geniune VW)

(2) N10528602 - Hex Bolts - M12x1.5x75 (Geniune VW)

(1) N10558002 - Subframe Mount Bolt - M14x1.5x70 (Geniune VW)

(4) N10579702 - Hex Bolts - Priced Each - M10x76 (Geniune VW)

(4) N91039802 - Hex Bolts - M12x1.5x90 (Geniune VW)

(4) N91073401 - Hex Bolts - M8x75 (Geniune VW)

(1) N91167101 - Hex Socket Bolt - M10x75 (Geniune VW)

(2) WHT000431A - Subframe Bolts - M12x110 (Geniune VW)

(1) N91066101 - Hex Socket Bolt - M10x35 (Geniune VW)

(2) 1K0411315K - Front Sway Bar End Links (Lemfoerder)

(2) N90635001 - Self-Locking Nuts - M12x1.5 (Geniune VW)

(6) N10286110 - Self-Locking Nuts (15mm) - M10x1.5 (Geniune VW)


Part #'s

N01-508-16 / N01 508 16 / N0150816

N01-033-513- / N01033513 / N01 033 513 / N01033513

N10-528-602- / N10528602 / N10 528 602 / N10528602

N10-558-002- / N10558002 / N10 558 002 / N10558002

N10-579-702- / N10579702 / N10 579 702 / N10579702

N91-039-802- / N91039802 / N91 039 802 / N91039802

N91-073-401- / N91073401 / N91 073 401 / N91073401

N91-167-101- / N91167101 / N91 167 101 / N91167101

WHT-000-431-A / WHT000431 A / WHT 000 431 A / WHT000431A

N91-066-101- / N91066101 / N91 066 101 / N91066101

1K0-411-315-K / 1K0411315 K / 1K0 411 315 K / 1K0411315K

N90-635-001- / N90635001 / N90 635 001 / N90635001

N10-286-110- / N10286110 / N10 286 110 / N10286110
