Eurowise Performance GEN 2 ExD Lift Suspension System - VW/Porsche / Touareg 3 / 958 Cayenne | EWORGEXDG2
- Share:
More Details
Engineered for superior durability and performance, the Eurowise Lift Suspension is designed to lift your vehicle up to 3 inches without requiring a subframe drop. Built to be twice as strong as OEM, this suspension system is perfect for both on-road and off-road driving, offering unmatched reliability in the most demanding conditions.
Featuring heavy-duty coil springs and reinforced shock forks that are twice the thickness of OEM forks, this system addresses common failure points, ensuring long-lasting durability. With an additional 1 inch of shock travel over stock shocks, it enhances articulation and ride quality. The fully adjustable shock body allows for 1.5 to 3 inches of lift without a subframe drop providing full flexibility in customizing your ride height.
Internally valved for a smoother ride than OEM on the street, this suspension also delivers enhanced handling in off-road conditions—whether you're tackling rough trails or pushing high speeds on uneven terrain. Designed for strength, comfort, and performance, this is the ultimate lift suspension upgrade for your vehicle.
Developed in close collaboration with Dobinson, this system is not just a repurposed off-the-shelf solution—it was designed from the ground up specifically for the Cayenne. Unlike retrofitted applications, every component of the factory suspension was meticulously disassembled, measured, and analyzed to ensure optimal performance and seamless integration. This lift system allows for adjustable ride heights from 1 to 3 inches using only the coil-over, eliminating the need for a subframe drop while enhancing both bump and droop travel—all while staying within Porsche’s original design parameters.
Installation Notes:
- When reusing the original front upper and rear upper shock top/mount, keep in mind that the rubber bushing may have previous wear and tear, which could impact overall ride quality and performance. Inspect these components carefully before installation and replace if necessary to ensure optimal function.
With Eurowise Lift Suspension, you get precision engineering, extreme durability, and the flexibility to take your vehicle to the next level—on or off the road.
- Gen 2 Cayenne 958 (2011 - 2018): all makes and models
- Gen 2 Touareg T3 (2011 - 2018): all makes and models

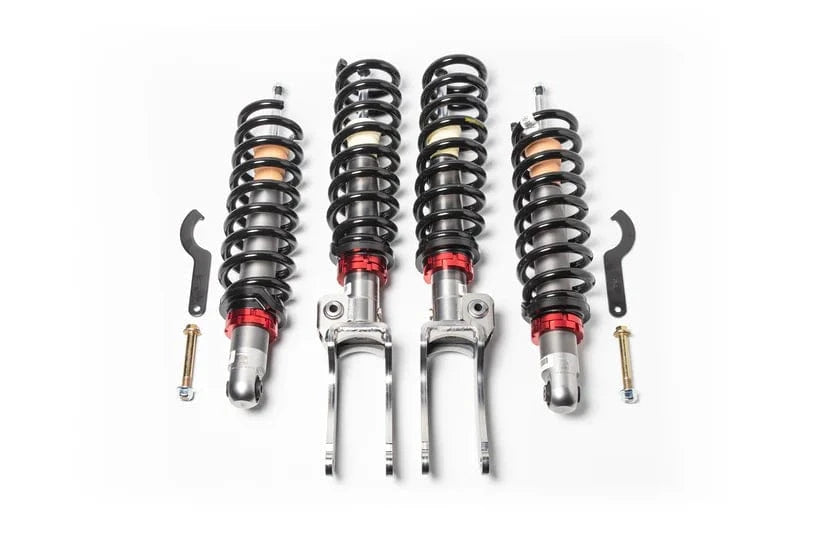

- Front Shocks
- Rear Shocks
- Front Springs
- Rear Springs
- Height Adjuster Wrenches
- Front Lower Shock Bolts
NOTE: You will reuse your OEM front and rear upper strut mounts.
- Monotube Design: Featuring a mono tube construction, the ExD coilovers offer outstanding durability and fade resistance, even during extended use in demanding terrains, ensuring a smoother and more controlled ride.
- Stronger Construction: Double the strength! 10mm shock fork thickness vs the OEM ( 5mm ) for extreme use and durability.
- Larger Pistons: The high-flow 50mm pistons reduce internal pressure, effectively dissipating heat, and enhancing damping performance. This results in superior vehicle control and handling, especially in rough conditions and during heavy impacts.
- Race-Inspired Components: With CNC-machined high-flow billet aluminum pistons, composite wear bands, and a state-of-the-art 3-stage sealing system, the EXD coilovers provide low-friction performance and long-lasting durability without the need for constant rebuilding.
- Adjustable Height: The threaded bodies allow for fine-tuning of your vehicle’s ride height, providing ultimate flexibility and improved cooling for your suspension system.
- Superior Sealing & Durability: The 3-stage FKM HNBR sealing system and corrosion-resistant EDP surface protection ensure your coilovers maintain peak performance and withstand the test of time.
- Proprietary Lift Springs: Front Springs are engineered for maximum spindle clearance during full droop conditions. Utilizing cutting-edge technology such as cold rolling, precision mandrel forming, state-of-the-art heat treatment, and rigorous load testing
- No Subframe drops required: The result is a lift system that offers adjustable heights ranging from one to three inches solely through the coil-over without the need of a subframe drop, while also enhancing both bump and droop travel without exceeding Porsche’s original design parameters.
ONLY AVAILABLE THROUGH EUROWISE AND APPROVED DEALERS.
