Genuine Timing Chain Kit (2015+) - VW Gen3 2.0T Golf GTI / CXCA / CXCB / CNTA

This Kit is made up with all GENUINE parts, in the car manufacturer's box, as sold by the new car dealer.

Volkswagen does not have a regular service interval for timing chains. That being said there have been problems even with the EA888 Gen3 engine timing chain system as early as 50,000 miles. You may notice your engine making the dreaded "marbles in a can sound". If you are hearing this sound it's time to order this kit. Over time the chains, tensioners, and guide rails get worn out and the chain becomes too loose. Thus giving it the potential to skip a tooth putting your engine out of timing or worst case scenario the chain breaking and potentially causing catastrophic engine failure

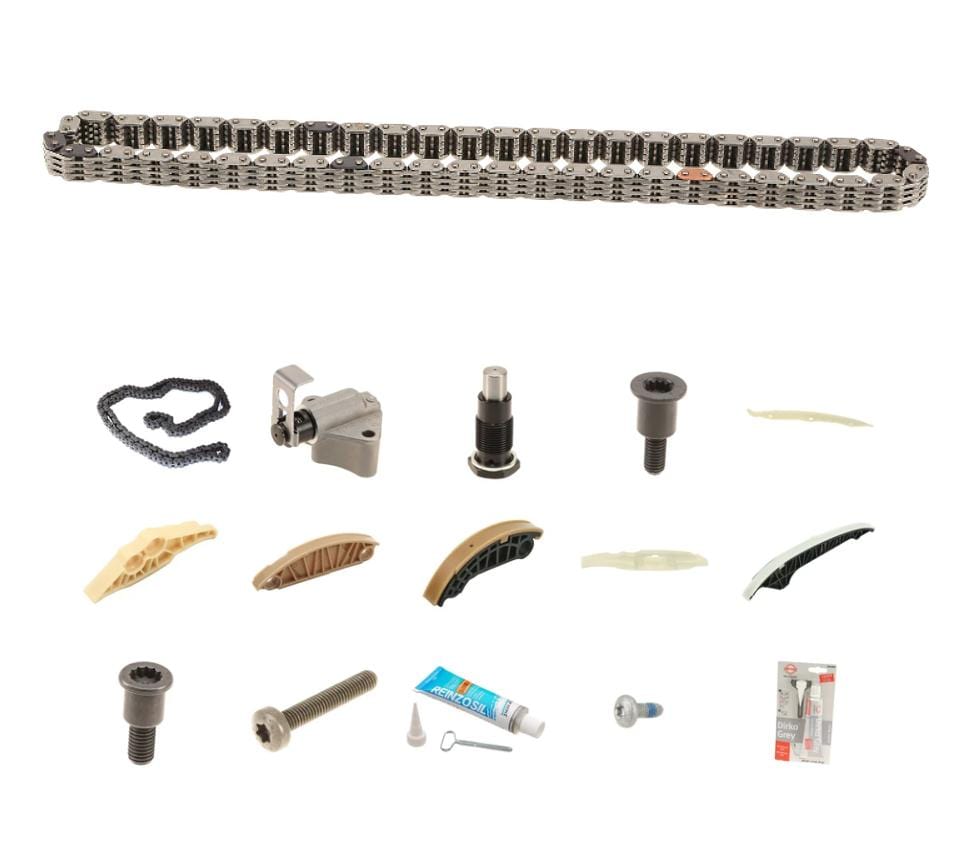

Kit Contains:

06K109158BJ Timing Chain Genuine VW

06K109469N  Upper Timing Chain Guide Genuine VW

06K109158AM Engine Balance Shaft Chain IWIS Brand (same as Genuine VW/Audi)

06K109467Q Engine Timing Chain Tensioner Genuine VW

06K109469M Engine Timing Chain Guide (Right) Genuine VW

06H109509Q Engine Timing Chain Guide (Left) Genuine VW

06H109467AT Engine Balance Shaft Chain Tensioner Genuine VW

06H109509P Engine Balance Shaft Chain Guide (Lower Left) Genuine VW

06H109469AQ Engine Balance Shaft Chain Guide (Lower Middle) Genuine VW

06H109469AH Engine Balance Shaft Chain Guide (Lower Right) Genuine VW

N91130301 (2) Chain Guide Bolts (Upper) Genuine VW

N10554005 (2) Chain Tensioner Bolt Genuine VW

N91130401 (6) Chain Guide Bolt (Lower Guides) Genuine VW

D176404A2 Oil Pan Sealant Victor Rienz

510030 Timing Cover Sealant Elring


Part #'s

06K-109-158-BJ / 06K109158 BJ / 06K 109 158 BJ / 06K109158BJ

06K-109-158-AM / 06K109158 AM / 06K 109 158 AM / 06K109158AM

06K-109-467-Q / 06K109467 Q / 06K 109 467 Q / 06K109467Q

06K-109-469-M / 06K109469 M / 06K 109 469 M / 06K109469M

06H-109-509-Q / 06H109509 Q / 06H 109 509 Q / 06H109509Q

06-H10-946-7AT / 06H10946 7AT / 06 H10 946 7AT / 06H109467AT

06H-109-509-P / 06H109509 P / 06H 109 509 P / 06H109509P

06H-109-469-AQ / 06H109469 AQ / 06H 109 469 AQ / 06H109469AQ

06H-109-469-AH / 06H109469 AH / 06H 109 469 AH / 06H109469AH

N91-130-301 / N91 130 301 / N91130301

N10-554-005 / N10 554 005 / N10554005

N91-130-401 / N91 130 401 / N91130401
