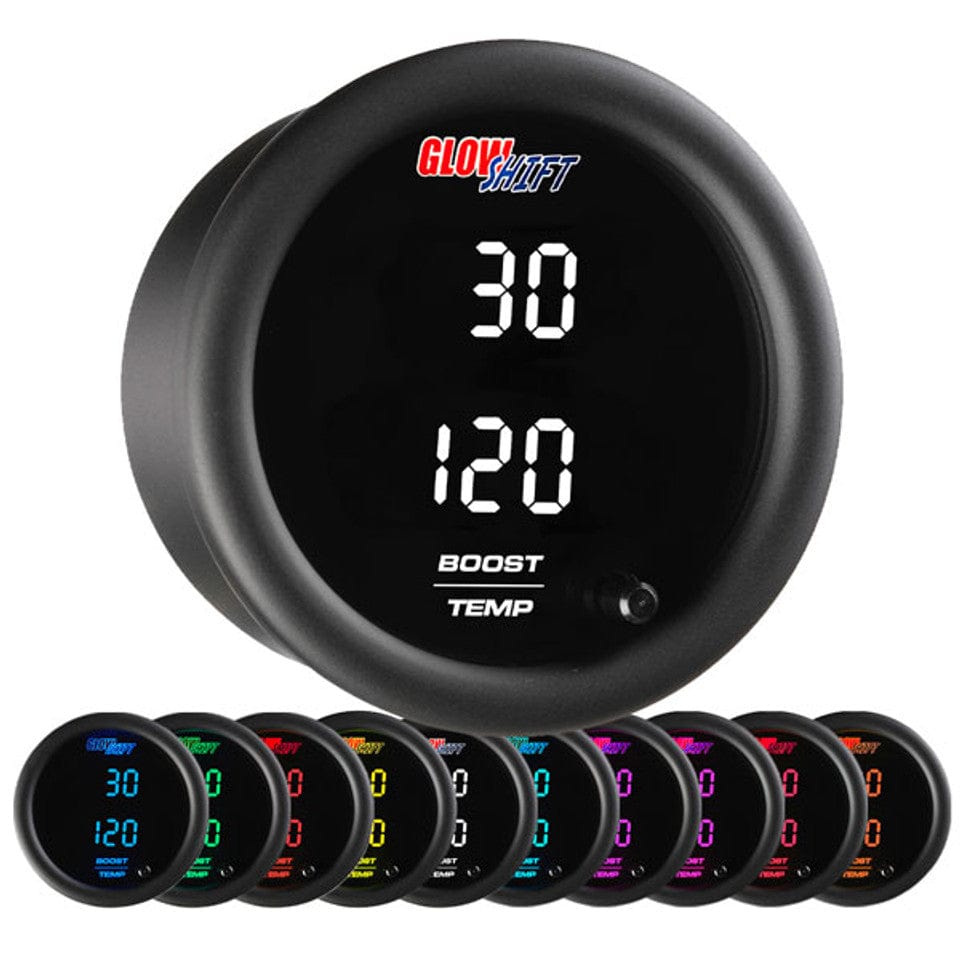

GlowShift Gauges 10 Color Digital Dual Boost/Vacuum & Temperature Gauge | GS-TCD-BT

GlowShift 10 Color Digital Series Dual Boost/Vacuum & Temperature Gauges monitor two key readings simultaneously. View Boost/Vacuum readings from -30 inHG to 45 PSI, and Water, Transmission, Oil or Differential Temperature readouts from 68° to 302° Fahrenheit. This boost and temperature combo gauge is electronically driven and features customizable displays with bold, easy to read, quick glance digital numerical readouts. Each gauge includes Sensors, Silicone Hose with a T-Fitting, Wiring Harnesses and more for installation.

The 10 Color Dual Digital Series features a flat black gauge face and low profile tinted lens with bright LED digital numerical readouts. Each gauge has an ultra-thin design with a depth of 1-1/16” (27mm) and display that measures 3/8” x 5/8” (9.5mm x 15.92mm). Experience 2 customizable displays with bold, easy to read, quick glance digital readouts. Users have the ability to set each of the displays with any combination of the featured 10 colors to quickly identify each reading. At startup, Self-Calibration Mode ensures the gauge is performing optimally. For easier viewing at night, connect the orange wire to the headlight switch source and the gauge will dim 50%.

FEATURES

10 Color Dual Digital Series Gauges are built to enhance the interior of your car or truck. On or off, the gauge will look incredible courtesy of the black gauge dial and tinted lens which are at the heart of this Series.

10 COLOR OPTIONS

The 10 available color options include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. 10 Color Cycle Mode and 10 Color Fade Mode both scroll through each of the available colors.

BACKLIGHTING

LED backlighting results in a bright display that delivers clear and vivid readouts. Connect the orange wire from the power harness to the factory headlight switch to dim the gauge 50% when the headlights are on.

WHAT'S INCLUDED

• 2-1/16” (52mm) Digital Dual Boost/Vacuum & Temperature Gauge
• Electronic Boost Pressure Sensor
• 1/8-27 NPT Electronic Temperature Sensor
• 3’ of 1/8” Silicone Boost Hose
• 1/8” Boost T-Fitting
• (2) Hose Clamps
• Inline Boost Hose Air Filter
• (2) 9' Sensor Harnesses
• 3' Power Harness
• Gauge Visor
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions

SENSORS

This dual digital vacuum boost and temperature gauge comes with an Electronic Boost Pressure Sensor and 1/8-27 NPT Electronic Temperature Sensor. Detailed instructions walk you through the installation process for both sensors step by step. Your vehicle may not come equipped with the same thread size as the sensor and a thread adapter may be required for installation.

WIRING

A 3’ Power Harness and (2) 9’ Sensor Harnesses are provided that utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.

MOUNTING BRACKET

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Monitoring Options For Temperature

In addition to boost vac readouts, install the included temperature sensor to monitor either water, transmission, oil or diff temp. These dual digital gauges give you the ability to efficiently monitor multiple engine systems through one easy-to-use gauge for your car or truck. The included electronic temp sensor takes care of all the hard work by keeping a close eye on changing temperatures for each type of reading. The responsive ultra-bright LED display indicates whether they are running too high or too low.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
