GlowShift Gauges 3in1 White Dial Boost with Digital Exhaust Gas Temperature & Pressure Gauge | GS-3G-04

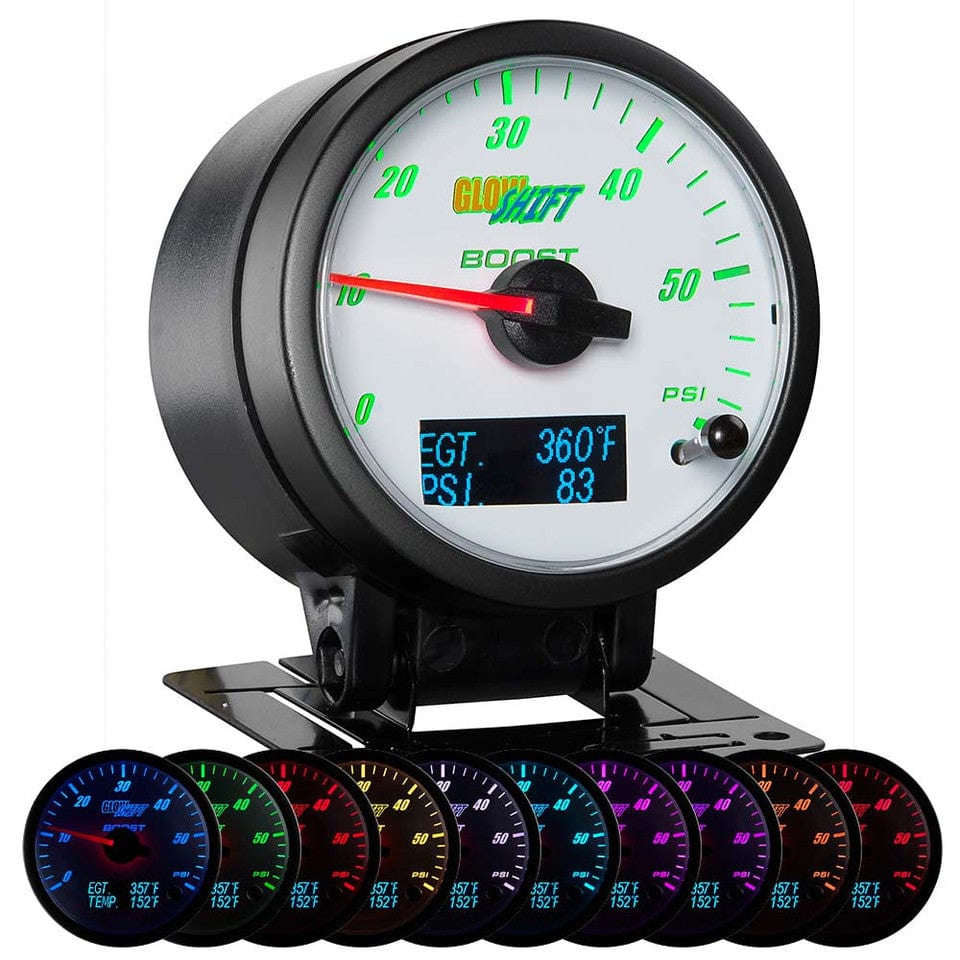

GlowShift 3in1 White Analog 60 PSI Boost w/ Digital EGT & Pressure Gauges are combination gauges that allow you to accurately monitor critical engine readings. This 3in1 gauge is essential for any diesel vehicle that demands more output for driving long distances, towing heavy cargo and more. Each 2-3/8” (60mm) combo gauge features an analog boost pressure reading from 0 to 60 PSI and a blue digital pyrometer EGT reading from 200° to 2200° Fahrenheit. A second blue digital readout has the option of fuel, oil or air pressure readings from 0 to 150 PSI.

GlowShift’s White Analog 3in1 Gauge Series features a white gauge dial and magnified clear lens. The illuminated red needle sweeps 270° and is powered by stepper motor technology, giving you a combination of incredibly accurate readings with extremely smooth needle movement. With a depth of 1.32” and an LED display measuring 1.05” x 0.43”, this gauge combo has an ultra-thin design so that it can be easily mounted inside your vehicle. The 10 Color through dial LED lighting system allows you to select and change the color of the analog display by simply pressing the button on the front of the gauge. The 10 ultra-bright LED solid color modes include Blue, Green, Red, Teal, Yellow, Purple, Pink, Amber, Orange and White.

3 READINGS IN 1

Take Up Less Space Inside Your Vehicle and Spend Less Time on Installation By Combining 3 Separate Gauges Into 1 Unit. With this 2-3/8” (60mm) Diesel Combo Gauge You Can View Analog Readings and 2 Digital Readings Simultaneously.

10 COLOR LED LIGHTING

The 10 Solid Color Modes Include Blue, Green, Red, Yellow, White, Teal, Purple, Pink, Amber and Orange. Easily Cycle Through the 10 Solid Color Settings and 2 Color Cycle Modes with a Color Recall Feature Also Built In.

BRIGHTNESS CONTROL

By Connecting the Orange Wire of the Gauge to the Factory Headlight Switch, You Can Change the Brightness Levels with 3 Daytime Modes and 3 Nighttime Modes. Adjust the Level of Brightness on the Display for Better Visibility When Driving.

WHAT'S INCLUDED

• 2-3/8” (60mm) Diesel Combo 3in1 Gauge
• Electronic 1/8-27 NPT Boost Pressure Sensor
• 8’ Pressure Sensor Harness for Boost Sensor
• Type K Thermocouple EGT Probe with 1/8-27 NPT Threads
• 3’ Steel Braided Cable with Waterproof Connector for EGT Probe
• 6’ Sensor Harness with Waterproof Connector for EGT Probe
• Electronic 1/8-27 NPT Pressure Sensor
• 8’ Pressure Sensor Harness for Pressure Sensor
• 3’ Power Harness
• 2-3/8” (60mm) Dashboard Mounting Pod
• Dash Pod Mounting Hardware
• Gauge Visor
• Mounting Bracket
• Mounting Bracket Hardware
• Gauge Visor
• Installation Instructions

SENSORS INCLUDED

This 3in1 GlowShift Gauge Comes with a 1/8-27 NPT Type K Thermocouple Exhaust Gas Temperature Probe; a 1/8-27 NPT Electronic Boost Pressure Sensor; and a 1/8-27 NPT Electronic Pressure Sensor.

WIRING HARNESSES

8’ Sensor Wires are Included with the Boost Sensor and Pressure Sensor. The EGT Probe Has 3’ of Steel Braided Cable and a 6’ Sensor Wire with Waterproof Connectors. The 3’ Power Harness and All Sensor Wires Have Plug and Play Modular Connectors.

DASH MOUNTING POD

Mount the 3in1 Gauge to Virtually Any Vehicle’s Dashboard with the Included 2-3/8” Dash Mounting Pod. Mounting Hardware is Included for a Seamless Install So You Can Monitor Key Readings from an Optimal Location.

Take Up Less Space on the Dash or A-Pillar

With GlowShift allin1 gauges you can simplify your gauge arrangement and minimize the amount of space it takes up on your vehicle’s A-pillar, dash or another location. This feature is optimal for drivers who want to add gauges to their diesel truck without losing a factory grab handle or installing a larger gauge pod. With this compact device, you get a more subtle and stealth-like look while still getting the monitoring capacity of multiple gauges.

Benefits Of A 3in1 Gauge

GlowShift 3in1 diesel combo gauges give you the monitoring ability of a boost gauge, pyrometer EGT gauge and pressure gauge wrapped up into an easy-to-use allin1 gauge. You can also customize the pressure setting to use it as a fuel pressure gauge, oil pressure gauge or air pressure gauge. This combination gauge gives drivers everything they want with a complete set of options for three individual gauges incorporated into one. Easily scroll through features while being provided with three critical readings.

GlowShift Guarantee

GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a One Year Limited Warranty and Free Lifetime Tech Support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
