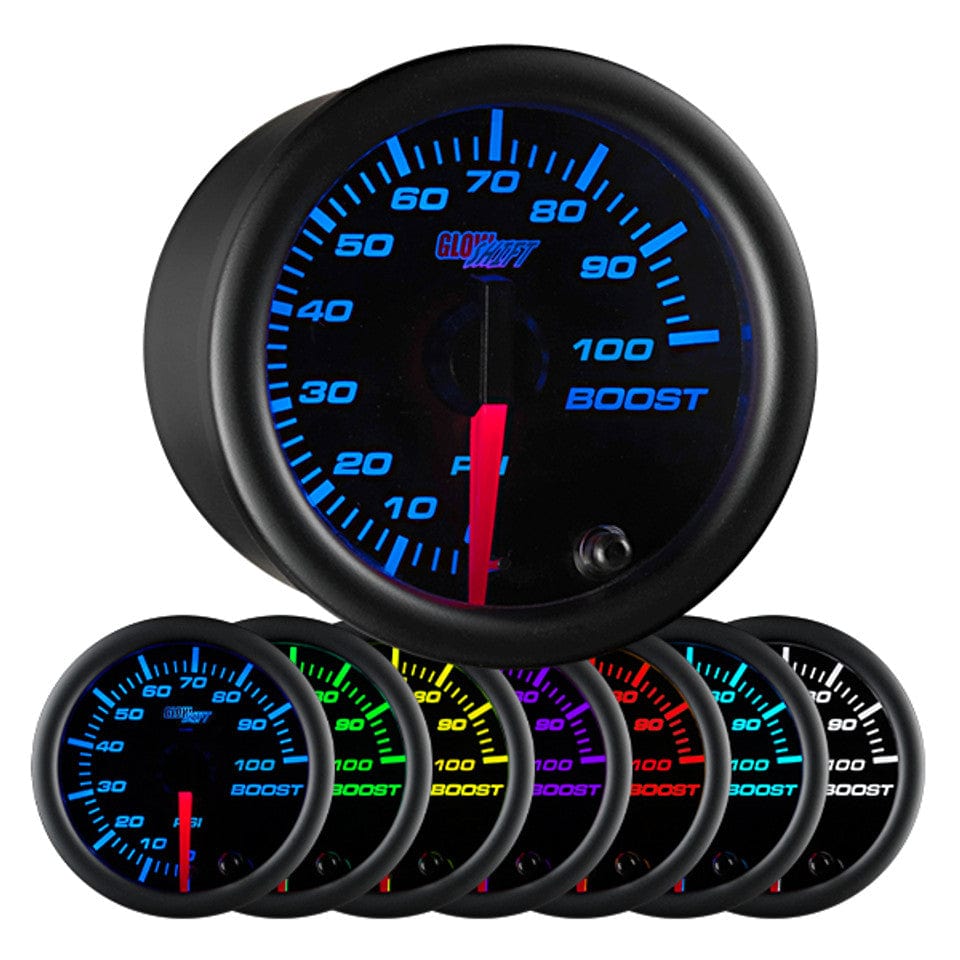

GlowShift Gauges Black 7 Color 100 PSI Boost Gauge | GS-C701_100

GlowShift’s Black 7 Color Series 100 PSI Boost Gauge is essential for the serious diesel truck driver who knows that 60 pounds of boost just isn’t enough. This 2-1/16” (52mm) high-performance diesel gauge reads boost pressure from 0 to 100 PSI and is a great resource for monitoring where vacuum compression levels are not necessary. You’ll be able to effectively take readings with a turbo boost gauge which also ensures that your turbo is performing at optimal levels and does not overboost causing critical engine damage.

GlowShift’s Black 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.

FEATURES

The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.

7 COLOR OPTIONS

Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.

BACKLIGHTING

This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the black gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.

WHAT'S INCLUDED

• 2-1/16” (52mm) 100 PSI Boost Gauge
• 9’ of Boost Hose
• 1/8-27 NPT Brass Compression Fittings
• 2’ Power Harness
• Gauge Visor
• Mounting Bracket
• Mounting Bracket Hardware
• Installation Instructions

HOSE & FITTINGS

This mechanical boost gauge kit comes with everything required for your boost gauge install. You’ll receive 9’ of Boost Hose and Ferrule Fittings, allowing you to drill and tap your intake manifold for extremely accurate gauge readings.

WIRING

The included 2’ Power Harness is attached to the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The extended wire length also provides added flexibility during installation.

MOUNTING BRACKET

A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.

Who Was The 100 PSI Boost Gauge Made For?

GlowShift’s 100 PSI Boost Gauge was made for anyone driving diesel trucks that generate high levels of boost pressure. You’ll see this many times in racing applications with large single turbos, track trucks, pulling trucks and drag trucks that demand a lot of power. If your engine is up to the task of supporting higher boost levels, or if it has been modified for higher efficiency and greater output, then this is the gauge for you.
