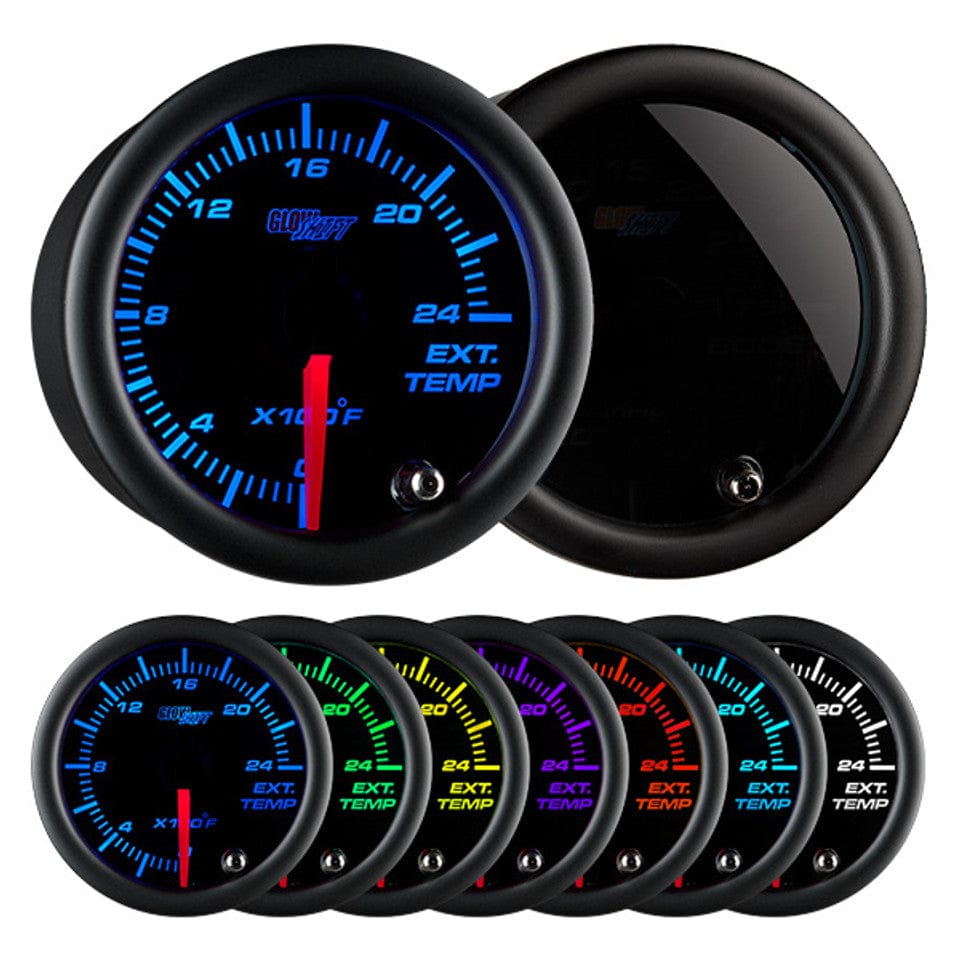

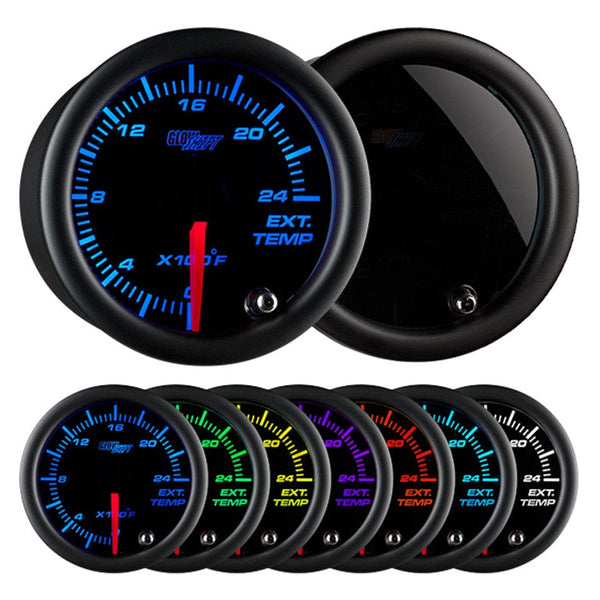

GlowShift Gauges Tinted 7 Color 2400° F Exhaust Gas Temperature Gauge | GS-T708
- Share:
GlowShift’s Tinted 7 Color Series 2400° F Pyrometer EGT Gauge is essential for any gas or diesel powered vehicle that has a stock or aftermarket turbo or supercharger. This gauge allows you to closely monitor your engine temperature, making sure it is not running too hot which could result in engine damage. With the included 1/8-27 NPT Type K Thermocouple EGT Probe, this exhaust gas temperature gauge will take effective readings from 0 to 2400° Fahrenheit.
GlowShift’s Tinted 7 Color Gauge Series comes standard with a cutting-edge design that includes a black gauge face and low profile magnified tinted lens. The illuminated red needle sweeps 270° and is powered by stepper motor technology, giving you an effective combination of incredibly accurate gauge readings with extremely smooth needle movement. The Tinted 7 Color Gauge Series comes with the ultra-bright LED solid color modes Blue, Green, Red, Teal, Yellow, Purple and White.
FEATURES
This analog gauge is equipped with an illuminated red needle that sweeps 270° and is powered by stepper motor technology, giving you an effective combination of incredibly accurate gauge readings and extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.
7 COLOR OPTIONS
Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.
BACKLIGHTING
This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look amazing courtesy of the black gauge dial and magnified tinted lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you’ll be able to dim the gauge 30% when the headlights are on. This feature will help you to reduce brightness and glare while viewing readings at night.
WHAT'S INCLUDED
- 2-1/16” (52mm) 2400° F Exhaust Gas Temperature Gauge
- 1/8-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector
- EGT Probe Includes 3’ of Stainless Steel Braided Cable
- 6’ Stainless Steel Braided Sensor Harness with Waterproof Connector
- 2’ Power Harness
- Gauge Visor
- Mounting Bracket
- Mounting Bracket Hardware
- Installation Instructions
ADDITIONAL DETAILS
EGT PROBE
The included 1/8-27 NPT Type K Thermocouple EGT Probe with Waterproof Connector delivers extremely accurate readings on exhaust gas temperature levels. It also features 3’ of steel braided cable and installs directly to the exhaust manifold.
WIRING
The 2’ Power Harness and 6’ EGT Probe Harness utilize Plug and Play Connectivity to easily snap into the modular connectors on the back of the gauge. The extended wire lengths give you added flexibility during installation.
MOUNTING BRACKET
A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.
Why Do I Need A 2400 EGT Gauge?
The 2400° F EGT Gauge is for diesels that need extra monitoring power where the 1500° range isn’t enough. This is often seen with modified turbo diesels including race trucks and pulling trucks. Examples are big turbo builds with a lot of fuel, and some race truck applications that require higher readouts because of how the truck runs. 2400 EGT exhaust gas temperature gauges are also used for gas engine applications, most commonly on trucks. They are not used as often on cars, an exception being turbo cars that require an EGT gauge since the turbo runs off of the exhaust.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
