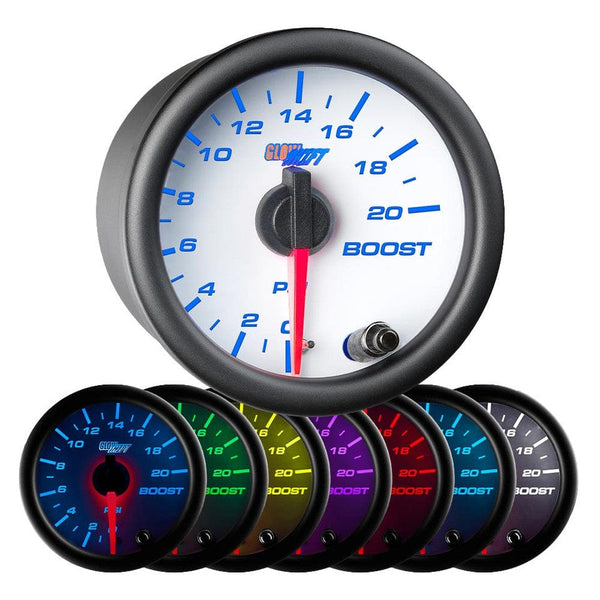

GlowShift Gauges White 7 Color 20 PSI Boost Gauge | GS-W701_20
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
GlowShift’s White 7 Color Series 20 PSI Boost Gauge was designed for low boost applications or older turbo diesels that don’t require larger amounts of power, giving you the ability to easily monitor your car or truck's boost pressure from 0 to 20 PSI. This turbo boost gauge is ideal for any vehicle running boost pressure levels where monitoring vacuum compression is not necessary. It will also help you safeguard against overboosting which could potentially lead to significant engine damage.
GlowShift’s White 7 Color Gauge Series comes standard with a cutting-edge design that includes a white gauge dial, analog display and magnified clear lens. You can also choose between 7 different color options for the LED display. Install to the dashboard, A-pillar, or another location inside your vehicle. You’ll enhance the interior of your vehicle and take accurate readings at the same time.
FEATURES
The gauge’s illuminated red needle sweeps 270° and is powered by stepper motor technology. You’ll get an effective combination of incredibly precise gauge readings with extremely smooth needle movement. GlowShift’s 7 Color through dial lighting system allows you to select and change the color of your gauge lighting display by simply pressing the button located on the front of the gauge.
7 COLOR OPTIONS
Easily cycle through the 7 Solid Color Settings and 2 Color Cycle Modes. The solid color modes featured are Blue, Green, Red, Teal, Yellow, Purple and White. Adjust the color of the gauge to match your factory dash lights, or create a custom look inside of your car or truck. With the Color Memory feature, you won’t have to reset the color of the gauge every time you turn on your vehicle.
BACKLIGHTING
This gauge features LED backlighting which results in an ultra-bright display that delivers clear and vivid readouts. On or off, the gauge will look great courtesy of the white gauge face and magnified lens which are at the heart of this Gauge Series. By connecting the orange wire from the power harness to the factory headlight switch, you can dim the gauge 30% when the headlights are on.
WHAT'S INCLUDED
- 2-1/16” (52mm) 20 PSI Boost Gauge
- 9’ of Boost Hose
- 1/8-27 NPT Brass Compression Fittings
- 2’ Power Harness
- Gauge Visor
- Mounting Bracket
- Mounting Bracket Hardware
- Installation Instructions
HOSE & FITTINGS
This mechanical boost gauge kit comes with everything required for your boost gauge install. You’ll receive 9’ of Boost Hose and Ferrule Fittings, allowing you to drill and tap your intake manifold for extremely accurate gauge readings.
WIRING
The included 2’ Power Harness is attached to the back of the gauge. Wires are included for Power, Ground, and a Dimming feature. The extended wire length also provides added flexibility during installation.
MOUNTING BRACKET
A Mounting Bracket is included with hardware which attaches the bracket to the back of the gauge for a secure fit in any vehicle’s in-dash mount. The bracket is U-shaped and made out of metal to be extremely durable.
Benefits of the 20 PSI Boost Gauge
GlowShift’s 20 PSI Boost Gauge was created for anyone driving a car or truck with an older or smaller turbocharger which doesn’t generate higher boost pressure levels. By installing it to your vehicle, this truck and car boost gauge helps you monitor the amount of pressure in your engine to avoid any harmful spikes that could cause significant damage. Other benefits include better fuel economy and optimized performance, in addition to longer engine life.
GlowShift Guarantee
GlowShift is your source for cutting-edge aftermarket automotive products specially designed for cars and trucks. Shop with confidence knowing that all purchases are backed by a one year limited warranty and free lifetime tech support. You will also have access to an unrivaled customer support experience in the event you have any questions about our gauges, pods and accessories.
