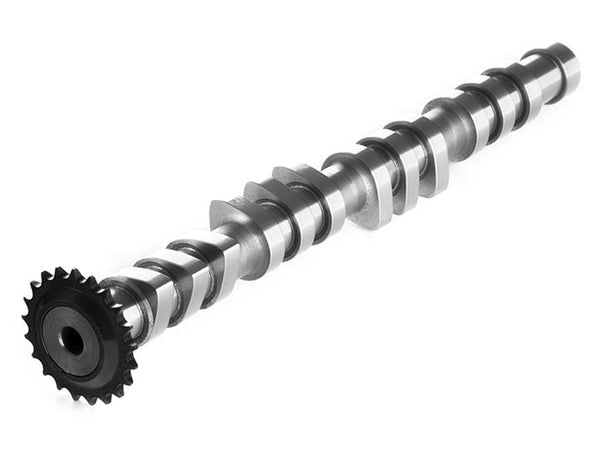

Integrated Engineering Street Intake Camshaft - VW/Audi 1.8T 20V | IECVA3-1

(1 Review)

Read Product Details


$349.99

As low as $32/mo with . Check your purchasing power

Free Shipping

Part# IECVA3-1

In Stock In Stock
Item is IN STOCK, order now and will ship out within 1 business day!
Dropship Direct Ship
This product will ship direct from our supplier. Availability is subject to suppliers stock.
 More payment options

Earn Rewards! +1749 Points


IE STREET CAM FOR 300+HP BUILDS

The IECVA3 Street Intake Camshaft is perfect for mid-sized aftermarket turbo builds in the 300-500 horsepower range with an ideal powerband of 4000RPM-7500RPM.

INTAKE ONLY CAM

Engineered for mild street builds, this camshaft is designed to be installed along with the factory-equipped exhaust camshaft. The specialized cam profile and centerline are engineered to re-tune the sequencing of the valves to match the flow and power curve of your turbocharger while retaining a factory-like and smooth idle.

CAMSHAFT TECHNICAL SPECIFICATIONS

  • 228 Deg Advertised
  • 196 Deg at .050"
  • 0.325" Lift
  • 108 CLA

INSTALLATION

This camshaft has been designed specifically for the 1.8T 20V (06A & 058) engines and engineered for easy installation. The cam sprocket is pre-set for optimal performance and features a factory-style timing mark that follows the exact same installation process as a stock camshaft.

VALVE SPRINGS & RETAINERS

Larger turbos and camshafts allow for a larger powerband and higher RPM limits putting more strain on the valvetrain components. Upgrading the valve springs and retainers to match is highly recommended. For the best results in optimum valvetrain harmonics, safe revving, and long cylinder head life install your new camshaft along with an IE 1.8T 20V Valve Spring & Retainer Kit

WHY SHOULD I UPGRADE CAMSHAFTS?

The factory-equipped camshafts in your VW/Audi 1.8T 20V engine are tuned for the small stock turbocharger. Stock cams are designed for low boost pressures in low RPM ranges, which is at odds with aftermarket larger turbos that run higher boost pressures at higher RPMs. Matching the valve lift to the turbo's most efficient range with camshafts sequences your valvetrain to your turbo and unlocks instant power gains when setup correctly.





⚠️CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

4.00
Based on 1 review
