JHM - R Series Clutch for B5 - S4, C5 A6 - allroad w 2.7T | JHM-RSer27TClutch-1

Read Product Details

$599.95

Part# JHM-RSer27TClutch-1

In Stock

Direct Ship

QTY:

On Backorder
Notify Me when Back in stock

Earn Rewards! +2999 Points

Select Your Car to Verify Fitment

Introducing the JHM R Series Clutch Kit for the B5-S4, C5-A6 and allroad w/ 2.7T!!!

IMPORTANT NOTE!!! This clutch requires our Version 2 Lightweight Flywheel!!! We transitioned to this new version on August 28th, 2014. These new flywheels have the counterbore style allen bolt mounting setup. If you have our Version 1 lightweight flywheel (sold prior to August 28th, 2014) with OEM style bolts, please read below on how to get your flywheel updated to Version 2 specifications.

Since 2010, we have been working on developing a proprietary performance clutch kit for the B6-B7 S4 and RS4. After years of research, prototyping, and in-car abuse we were able to release the JHM R Series Clutch Kits for the B6-B7 S4 and RS4 with excellent results. After the huge success of these clutch kits on our instant torque producing V8s, we decided that we had to get this clutch kit on the 2.7T. After more development and even more testing, we are proud to release our JHM R Series Clutch Kits for the B5-S4, C5-A6 and allroad with the 2.7T.

Our years of research and development of this clutch kit have led to the creation of our JHM R Series Pressure Plate. This pressure plate is a non-SAC (self-adjusting clutch) style pressure plate. This allows to run a set of more aggressive discs to hold more power and withstand even more abuse. For example, the shock that our proprietary ceramic 6-puck disc would put on the OEM B7-RS4 pressure plate would destroy the SAC.

The diaphragm on our R Series Pressure plate is a custom design that we worked for years on to get just right. We designed it specifically for these cars and their throwout bearings. We did not simply take another pressure plate that works in another brand car and try to make a "band-aid" solution with spacers or other shortcuts to make the pressure plate work for an Audi.

Click to enlarge picture

Audi RS4 Lightweight Flywheel & Performance Clutch

Features:

43% increase in clamp load torque holding capacity over the already stout B7-RS4 Pressure Plate.
The stiffness of the clutch pedal is increased by about 25%.
Better clutch pedal control and modulation is achieved through our spring design.
The spring pressure is much more linear not peaky like the B7-RS4 pressure plate making the clutch pedal behavior more predictable in the uptake of the pedal and engagement point of the clutch disc.
Thicker pressure plate straps increase the longevity and durability of the Pressure Plate.

**NOTE:** This product is for the clutch kit only (pressure plate and clutch disc). If you are interested in purchasing the JHM Lightweight Flywheel and R Series Clutch Combo for the 2.7T, please go back one section and at that item to your cart.

UPGRADING YOUR CURRENT JHM LIGHTWEIGHT FLYWHEEL TO R SERIES CLUTCH KIT SPECIFICATIONS:

The design of the R Series pressure plate required an update to the current JHM Lightweight Flywheel for the 2.7T - the spring package of the R Series clutch discs is too heavy duty for the old flywheel design. If you already have a JHM Lightweight Flywheel and want to upgrade your clutch setup to our new R Series Clutch, you can send your flywheel to JHM where we will perform the modification for only $50.00.

**Make sure to go back one section and add the "JHM R Series Flywheel Modification for JHM Version 1 LWFWs" to your cart. This modification can only be purchased with a new JHM R Series Clutch Kit. It will include a free shipping label for sending your Version 1 LWFW to JHM where we will perform the modifications to your flywheel. Once the modification is complete, we will send back your newly modified flywheel with your brand new R Series Clutch Kit along with all the new bolts and hardware required for the installation of the Clutch and Lightweight Flywheel.

SPECIFICATIONS:

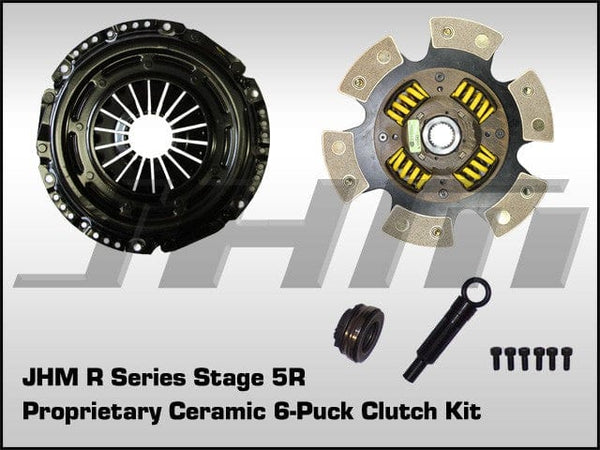

JHM R Series Clutch Kit (Clutch Disc and Pressure Plate): Our R Series Clutch Kits feature your choice of 2 different clutch disc materials: Stage 3 R is a hybrid clutch disc with ceramic and metal backed organic material, and Stage 5 R is a 6-puck disc featuring our proprietary ceramic material. You can chose your clutch disc material from the drop down menu below.

Our Stage 3 R disc offers the ultimate combination of daily driveability, torque holding capacity, and durability for back to back to back pulls. The Stage 5 R is a 6-puck clutch disc featuring our proprietary performance ceramic material making it the most aggressive clutch solution that we offer to date.

Click to enlarge picture

THIS CLUTCH KIT INCLUDES THE FOLLOWING: - JHM R Series pressure plate - Your Choice of JHM R Series Clutch Disc (choose stage below before ordering) - Pressure plate to flywheel bolts - Throwout bearing - Clutch alignment tool

INSTALLATION AND TORQUE NOTES HERE

NOTE: Clutch break in is important and must be done properly. All R Series Clutch Discs have a break in period of 500 miles. This means that you need to drive as much city type driving as you can for the first 500 miles after the disc is installed. Each time you start from a stop or shift, it aids in break in of the clutch material. Highway mileage does not count. You MUST avoid any racing activities, launching, or aggressive driving that gets the clutch hot during this period.
