JHM - Solid Short Throw Shifter for C6 A6 & B6 - B7 A4, 2004 - on (6 - Speed) - 01X - 02X
JHM - Solid Short Throw Shifter for C6 A6 & B6 - B7 A4, 2004 - on (6 - Speed) - 01X - 02X | JHM-STS-B6B7A46
- Share:
 - 01X - 02X)
Select Your Car to Verify Fitment
PROUDLY DESIGNED AND BUILT IN CALIFORNIA! THE JHM SOLID SHORT THROW SHIFTER IS THE NUMBER ONE SHORT THROW SHIFTER ON THE MARKET! TESTED IN THE REAL WORLD SINCE 2006!
NOTE: This shifter does not work on the 02 and 03 3.0l V6 A4 with the 01E manual transmission. This is for the 04 and up 1.8t, 2.0t , 2.0t TDI and 3.0l V6 with the 02X and 01X manual transmission. This shifter works on ALL C6 A6s and B7 A4s with 01X or 02X transmission with no exception, the exception is only for B6 A4s since this does NOT work on the 01A 5-speed. See the 5-speed product page if your B6 A4 is equipped with a 5-speed.

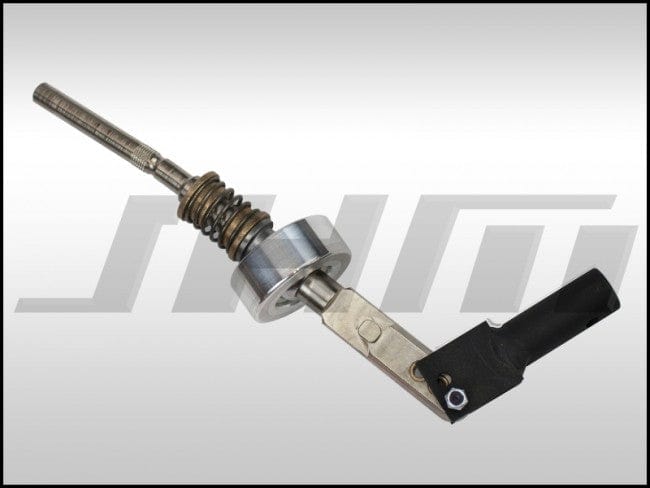

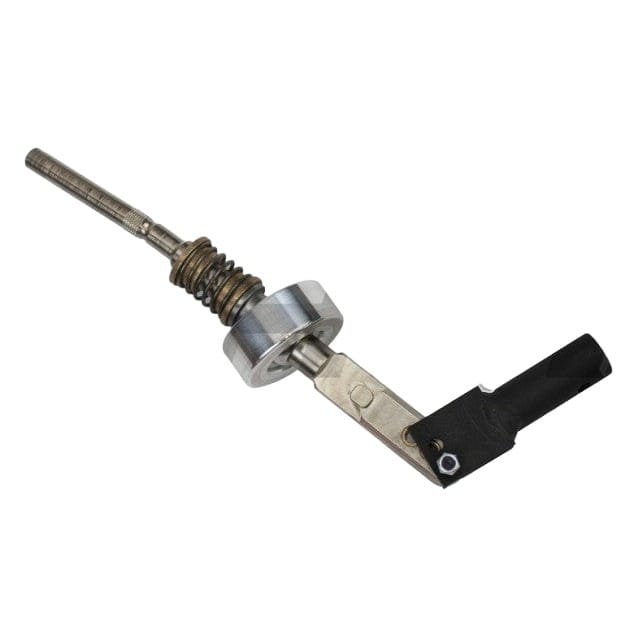

INCLUDES THE FOLLOWING - new JHM Steel shaft, JHM solid pivot assembly, Tig Welded Steel lower link, Delrin Bushings, New pushdown reverse springs (stock, medium and stiff) and all other hardware. Retains stock shifter knob. Instructions are not included with the package, just use the video links below and watch prior to installing.
COMES COMPLETELY ASSEMBLED (retains pushdown reverse) Ready to be installed into your factory base.
VIEW COMPARISON VIDEO -->HERE
VIEW SHIFTING DEMONSTRATION VIDEO -->HERE
VIEW INSTALLATION VIDEO -->HERE
Supplemental install instructions (adjustment of the 6-speed type shifter) -->HERE PICTURE OF A DISASSEMBLED JHM SHIFTER -->HERE
NEW! - INCLUDED OPTION WITH ALL SHIFTERS - FREE!
Pushdown Reverse Spring Stiffness: Additional pushdown reverse springs included for those aggressive drivers that have the tendency to accidentally push the shifter down while shifting.
OPTIONS:
Throw and Height: (3 throw options now included standard) UPDATED from previous models!
Knob height is now 1/2" lower than stock STANDARD with the following throw options adjustable by the installer.
1. 15% reduction - Bolt in the upper most hole (closest to the bearing) and the bottom welded base with both holes on the upper side.
2. 24% reduction - Bolt in the middle most hole and the bottom welded base with both holes on the lower side.
3. 32% reduction - Bolt in the lower most hole and the bottom welded base with both holes on the lower side.
Install Notes-->HERE
NOTE: Shifters come with 3 reduction settings (B6-B7 A4 exclusive). They ship already in the largest amount of reduction setting - bottom most hole). See this pic for more info -->HERE
For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.
Supplemental install instructions (adjustment of the 6-speed type shifter) -->HERE PICTURE OF A DISASSEMBLED JHM SHIFTER -->HERE
NEW! - INCLUDED OPTION WITH ALL SHIFTERS - FREE!
Pushdown Reverse Spring Stiffness: Additional pushdown reverse springs included for those aggressive drivers that have the tendency to accidentally push the shifter down while shifting.
OPTIONS:
Throw and Height: (3 throw options now included standard) UPDATED from previous models!
Knob height is now 1/2" lower than stock STANDARD with the following throw options adjustable by the installer.
1. 15% reduction - Bolt in the upper most hole (closest to the bearing) and the bottom welded base with both holes on the upper side.
2. 24% reduction - Bolt in the middle most hole and the bottom welded base with both holes on the lower side.
3. 32% reduction - Bolt in the lower most hole and the bottom welded base with both holes on the lower side.
Install Notes-->HERE
NOTE: Shifters come with 3 reduction settings (B6-B7 A4 exclusive). They ship already in the largest amount of reduction setting - bottom most hole). See this pic for more info -->HERE
For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.
