Introducing the JHMotorsports Stage 1 B7-RS4 Supercharger Kit!!!
The JHM Stage 1 Supercharger is hands down the most cost effective supercharger solution for the B7-RS4. With common bolt-ons and supporting hardware, we have repeatably achieved mid to high 11 second quarter mile runs, with 117-118MPH trap speeds!! With performance like that, your seemingly unsuspecting four-door German sedan becomes a definite force to be reckoned with.
The JHM Stage 1 Supercharger Kit is the foundation for the different power levels available for the B7-RS4. With the addition of a smaller pulley, an intercooler, fueling upgrades, or even a built motor along with our software upgrade, you can build off of the Stage 1 kit to meet your power output needs. This Stage 1 Kit features the same supercharger head unit that was on our in-house, record setting 2007 B7-RS4 4.2L FSI that ran an incredible 10.7 second quarter mile at 130 mph. That was at full weight, a complete interior, a complete exhaust system, and street tires!
FEATURES AND SPECIFICATIONS
Our JHM Stage 1 Supercharger Kit for the B7-RS4 will make 80 to 100 wheel horsepower (WHP) over your car's current configuration. Your current modifications, the dynamometer (dyno) used, temperature, elevation, and octane of gas will all effect the exact amount of power gains.
Our Supercharger Kit features a Vortech V3 Si Centrifugal Supercharger Head Unit that is good for up to 800 horsepower! (Unchecked, this amount of power would be too much for a stock RS4 motor. Through our extensive development and testing process, we were able to limit the output of the supercharger to levels safe for the stock motor through hardware and tuning.) The V3 Si blower is a self-contained unit featuring quiet, helical cut gears. The only time you hear noise from the blower is at idle and low speeds. At wide open throttle, you hear nothing but the raw power coming from your JHM Supercharged RS4.
The JHM Stage 1 Supercharger Kit also includes our JHM Supercharger Mounting Brackets that were designed and are made in-house. These brackets are made from reinforced steel, laser cut, and then powder coated black for a clean installation.
In order to insure the longevity and durability of the belt and pulleys on the RS4, we upgraded the OEM belt and pulleys to a 6-rib system with our JHM 6-Rib Accessory Belt Conversion Kit which includes our Automatic Tensioner Upgrade. This Conversion Kit features 3 JHM Supercharger Kit specific pulleys including an Alternator Pulley, a precision zero-balanced Crank Pulley, and a Supercharger Pulley good for 5 to 7 pounds of boost (exact boost levels will vary depending on your exhaust system, other modifications, and environmental factors).
Due to the compact engine bay of the V8 RS4, we had to locate the Vortech Supercharger Head Unit off of the passenger side of the motor, below the headlight. We created a number of different proprietary parts including our JHM Supercharger Kit Silicone Inlet and Outlet Hoses. The Inlet Hose is made from reinforced silicone to prevent collapse under vacuum. The air intake is filtered through a JHM Supercharger Kit specific K&N high-flow, conical air filter.
We are currently working on JHM Supercharger Kit add-ons that will allow you to use more of the supercharger's power capabilities. Stage 1+ (Intercooled with upgraded fueling and a smaller pulley, safe for stock motors) should be available in Spring of 2016. Stage 2 will require a built motor for engine safety and longevity. Please contact us for more information regarding Stages 1+ and 2 as well as a JHM Built Motor for your B7-RS4.
PRESS
Here is an article from the Vortech Superchargers Blog regarding our kit for the B6-B7 S4 that uses the same Supercharger Unit! "JH Motorsports Uses Vortech Supercharged Boost to Rocket Their Audi S4 into the 11s..."
PICTURES
Click to enlarge picture
Click to enlarge picture

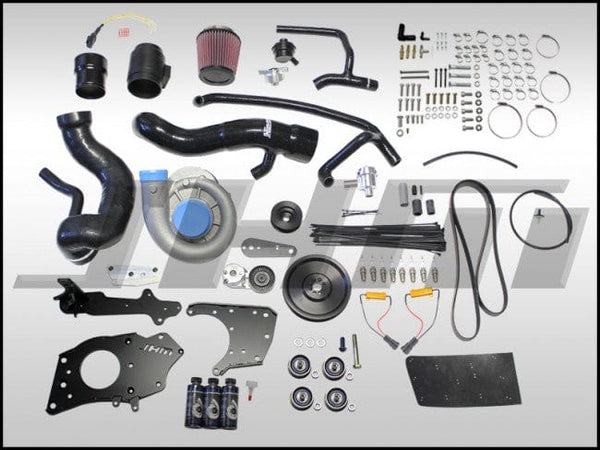

PARTS INCLUDED
- Vortech Centrifugal Supercharger (Good for up to 800 horsepower)
- JHM Laser Cut Supercharger Mounting Brackets
- JHM 6-Rib Pulley Upgrade, Accessory Belt Conversion, and Automatic Tensioner Kit with JHM 6-Rib Supercharger Pulley, JHM 6-Rib Alternator Pulley, JHM 6-Rib precision zero-balanced Crank Pulley
- JHM Inlet Hose, made from Reinforced Silicone
- JHM Silicone Outlet Hose
- JHM Crankcase Ventilation System
- JHM MAF Housing
- K&N Conical Air Filter
- JHM Stage 1 Supercharger ECU Tune
- Spark Plugs, JHM Supercharger Kit Specific based on the boost levels of this
- JHM A/C Receiver-Drier Relocation Kit including new hoses and JHM Modified A/C Lines for easy, bolt-on fitment
- All bolts, hardware, clamps, and miscellaneous items required for a complete installation FITMENT - Our JHM Stage 1 Supercharger kit fits all 2006-2008 B7-RS4s - Sedan, Cabriolet, or Avant.
- The lower quarter of the core support needs to be removed.
- Notching of the bumper support mount points at the frame rail is required.
- Clearancing near the passenger side sway bar mount point is required to accommodate the Silicone Supercharger Inlet Hose. Finally, due to the location of the supercharger unit under passenger headlight in the front bumper, you will not be able to retain your OEM Passenger Side Fog Light. We include resistors in our kit to prevent the error light from showing up on the display on the dash. OPTIONS - Air Conditioning Line Modification and Core Charge: We modify 3 of the 4 AC lines on the car to allow for a clean, bolt-on installation. If you would like, we can ship you our JHM Stage 1 Supercharger Kit with modified AC lines for a core charge (see the dropdown below). Once you install the kit and ship your OEM lines back to us, we refund your core charge. If you do not want to incur this core charge, you can send your AC lines to us in advance for modification. Finally, if you plan on removing the AC system from your car entirely, we can omit these items from our kit and discount your price accordingly. Select your preference from the dropdown below. AC Lines That Require Modification for Installation of the JHM Supercharger Kit: Click to enlarge picture
- JHM 6-Rib Kit: If you have previously upgraded to the JHM 6-Rib Kit for your B7-RS4, we will credit you towards the cost of your JHM Stage 1 Supercharger Kit purchase. Select the option that applies to you and provide your Invoice/Order number from your JHM 6-Rib purchase in the Order Comments at checkout.
- JHM Tuned: If you are already JHM Tuned and have our ECU Calibration for your B7-RS4, we will credit you towards the cost of your JHM Stage 1 Supercharger Kit purchase. Select the option that applies to you and provide your Invoice/Order number from your JHM Tuning purchase in the Order Comments at checkout.
- Flashing Method: With the new, JHM Flashing Server we now have the ability to flash our JHM Stage 1 Supercharger ECU Calibration to your car without removing the ECU. You can either have this done at your local JHM Flashing dealer (call us for a location near you) OR you can purchase a cable and perform the flash yourself. Select your preference using the dropdown below.
- Body Type: In order to confirm that we have an ECU calibration for your specific box code, please select your RS4's body type (Sedan, Cabriolet, Avant) from the dropdown below.
- Country: In order to confirm that we have an ECU calibration for your specific box code, please select your RS4's region (USA - Canada or Rest of World) from the dropdown below.
- Year: In order to confirm that we have an ECU calibration for your specific box code, please select the year of your RS4 (2006, 2007, or 2008) from the dropdown below. SUPPORTING MODIFICATIONS We highly recommend the following supporting modifications to maximize the performance of your RS4 with the JHM Stage 1 Supercharger Kit:
- JHM R-Series Clutch with either the 3R or 5R Disc
- JHM Lightweight Flywheel
- JHM 2.75 inch Exhaust - Downpipes and Cat-Back
- 034Motorsport MAF Hose
- 034Motorsport Torque Mount
- 034Motorsport Motorsport Line Motor Mounts w/ 10mm hardware
- 034Motorsport Transmission Mount
For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.
Click to enlarge picture

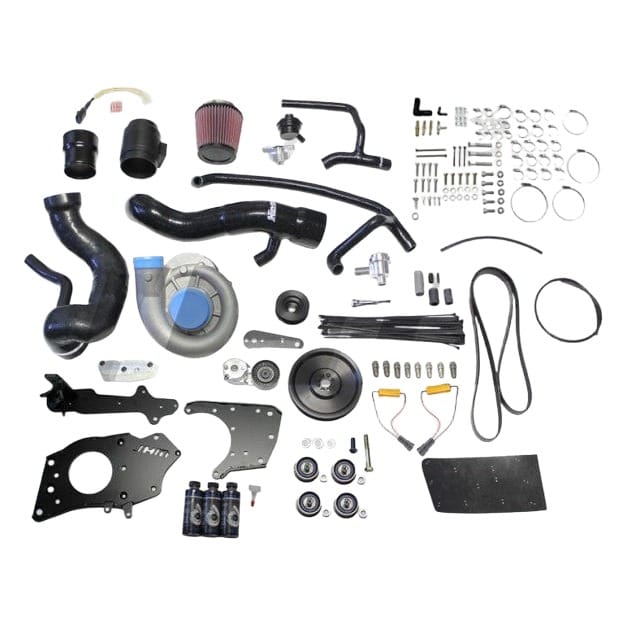

PARTS INCLUDED
- Vortech Centrifugal Supercharger (Good for up to 800 horsepower)
- JHM Laser Cut Supercharger Mounting Brackets
- JHM 6-Rib Pulley Upgrade, Accessory Belt Conversion, and Automatic Tensioner Kit with JHM 6-Rib Supercharger Pulley, JHM 6-Rib Alternator Pulley, JHM 6-Rib precision zero-balanced Crank Pulley
- JHM Inlet Hose, made from Reinforced Silicone
- JHM Silicone Outlet Hose
- JHM Crankcase Ventilation System
- JHM MAF Housing
- K&N Conical Air Filter
- JHM Stage 1 Supercharger ECU Tune
- Spark Plugs, JHM Supercharger Kit Specific based on the boost levels of this
- JHM A/C Receiver-Drier Relocation Kit including new hoses and JHM Modified A/C Lines for easy, bolt-on fitment
- All bolts, hardware, clamps, and miscellaneous items required for a complete installation FITMENT - Our JHM Stage 1 Supercharger kit fits all 2006-2008 B7-RS4s - Sedan, Cabriolet, or Avant.
DOWNLOAD INSTRUCTIONS HERE -> JHM SC Kit Install pdf.
Some clearancing of your vehicle is required to install the kit:
- The lower quarter of the core support needs to be removed.
- Notching of the bumper support mount points at the frame rail is required.
- Clearancing near the passenger side sway bar mount point is required to accommodate the Silicone Supercharger Inlet Hose. Finally, due to the location of the supercharger unit under passenger headlight in the front bumper, you will not be able to retain your OEM Passenger Side Fog Light. We include resistors in our kit to prevent the error light from showing up on the display on the dash. OPTIONS - Air Conditioning Line Modification and Core Charge: We modify 3 of the 4 AC lines on the car to allow for a clean, bolt-on installation. If you would like, we can ship you our JHM Stage 1 Supercharger Kit with modified AC lines for a core charge (see the dropdown below). Once you install the kit and ship your OEM lines back to us, we refund your core charge. If you do not want to incur this core charge, you can send your AC lines to us in advance for modification. Finally, if you plan on removing the AC system from your car entirely, we can omit these items from our kit and discount your price accordingly. Select your preference from the dropdown below. AC Lines That Require Modification for Installation of the JHM Supercharger Kit: Click to enlarge picture
- JHM 6-Rib Kit: If you have previously upgraded to the JHM 6-Rib Kit for your B7-RS4, we will credit you towards the cost of your JHM Stage 1 Supercharger Kit purchase. Select the option that applies to you and provide your Invoice/Order number from your JHM 6-Rib purchase in the Order Comments at checkout.
- JHM Tuned: If you are already JHM Tuned and have our ECU Calibration for your B7-RS4, we will credit you towards the cost of your JHM Stage 1 Supercharger Kit purchase. Select the option that applies to you and provide your Invoice/Order number from your JHM Tuning purchase in the Order Comments at checkout.
- Flashing Method: With the new, JHM Flashing Server we now have the ability to flash our JHM Stage 1 Supercharger ECU Calibration to your car without removing the ECU. You can either have this done at your local JHM Flashing dealer (call us for a location near you) OR you can purchase a cable and perform the flash yourself. Select your preference using the dropdown below.
- Body Type: In order to confirm that we have an ECU calibration for your specific box code, please select your RS4's body type (Sedan, Cabriolet, Avant) from the dropdown below.
- Country: In order to confirm that we have an ECU calibration for your specific box code, please select your RS4's region (USA - Canada or Rest of World) from the dropdown below.
- Year: In order to confirm that we have an ECU calibration for your specific box code, please select the year of your RS4 (2006, 2007, or 2008) from the dropdown below. SUPPORTING MODIFICATIONS We highly recommend the following supporting modifications to maximize the performance of your RS4 with the JHM Stage 1 Supercharger Kit:
- JHM R-Series Clutch with either the 3R or 5R Disc
- JHM Lightweight Flywheel
- JHM 2.75 inch Exhaust - Downpipes and Cat-Back
- 034Motorsport MAF Hose
- 034Motorsport Torque Mount
- 034Motorsport Motorsport Line Motor Mounts w/ 10mm hardware
- 034Motorsport Transmission Mount
For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.
