JHM - Trio Package - Solid Shifter, Linkage and Bushing for 2001.5 - 2002, B5 S4, Late Style | JHM-PKG-B5S4L

The S4 "Trio" Package

**This shifter is made to order with an ETA of 6-8 weeks from time of order confirmation**

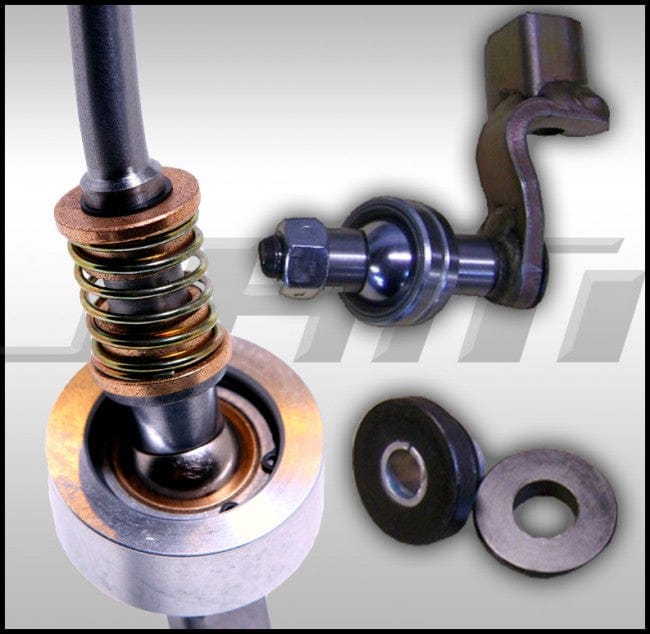

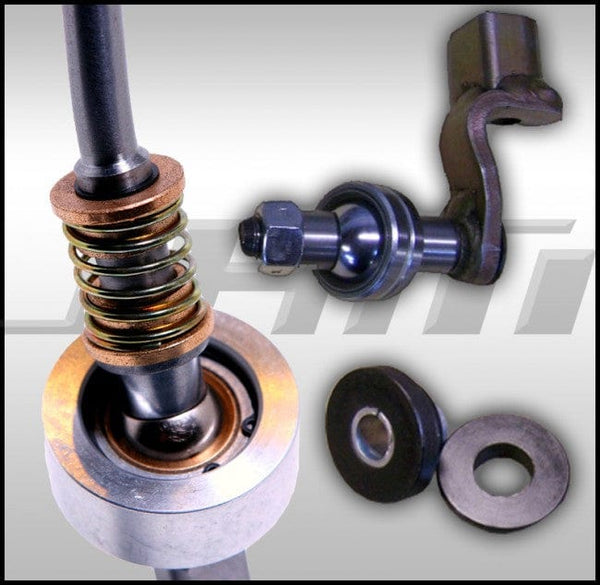

This package includes: JHM "Solid" Short Throw Shifter, Delrin Shifter Stabilizer Bushing and the "Solid" Linkage Upgrade

Guaranteeing the ultimate shifting experience.

You save $$ vs. buying these three items separately.



JHM "Solid" shifter for S4, 2001.5-2002(late)





PROUDLY DESIGNED AND BUILT IN CALIFORNIA



INCLUDES THE FOLLOWING - new JHM Steel shaft, JHM solid pivot assembly, Tig Welded Steel lower link, Delrin Bushings, New pushdown reverse springs (stock, medium and stiff) and all other hardware. Retains stock shifter knob. Instructions are not included with the package, just use the video links below and watch prior to installing.



COMES COMPLETELY ASSEMBLED Ready to be installed into your factory base. CLICK HERE to determine your shifter year and confirm your car is really an early or late style.



VIEW COMPARISON VIDEO -->HERE



VIEW SHIFTING DEMONSTRATION VIDEO -->HERE



VIEW INSTALLATION VIDEO -->HERE



PICTURE OF A DISASSEMBLED JHM SHIFTER -->HERE



PICTURE OF A OUR EXCLUSIVE PIVOT ASSEMBLY -->HERE



NEW! - INCLUDED OPTION WITH ALL SHIFTERS - FREE!
Pushdown Reverse Spring Stiffness: Additional pushdown reverse springs included for those aggressive drivers that have the tendency to accidentally push the shifter down while shifting.



OPTIONS:



NOTE: Shifters come with 2 reduction settings. About 35% and 10%. They ship already in the 35% reduction setting. See this pic for more info HERE

---

JHM Delrin shifter stabilizer bushing for S4, 2001.5-2002(late)



INCLUDES THE FOLLOWING - JHM Delrin 2-piece bushing to replace the OEM rubber bushing, 1 - steel washer, 1 - Mounting bolt and 1-steel bushing insert.



(This bushing is located at the transmission and is separate from our shifter) CLICK HERE to determine your bushing year. The bushings are different depending on which shifter design your car has.



VIEW COMPARISON VIDEO -->HERE



VIEW INSTALLATION VIDEO -->HERE
NOTE: This video is just a guide. The install was done on a 5 speed car, on a 6 speed car the bushing is on top of the trans and is more difficult to access.



VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED -->HERE
NOTE: This video helps you have a better understanding of the linkage and how this bushing would be replaced.



PICTURE OF THE JHM BUSHING VS. STOCK -->HERE



NOTE: This bushing will transfer more noise and vibration to your shifter and shifter box vs. the stock rubber bushing. This is what gives you the enhanced feel and confidence when shifting. This is recommended for serious enthusiasts only; who want to fully compliment their JHM solid short throw shifter and linkage upgrade and want their car to shift as precise as possible.

---

JHM Solid Linkage Upgrade for B5 S4, 2000 - 2002





INCLUDES THE FOLLOWING - JHM Modified OEM shift shaft link ($80 from dealer), JHM Modified Steel Spherical bearing, stainless steel spacers, all hardware, loctite and synthetic grease.



(This linkage is located at the transmission and is separate from our shifter) This linkage fits all B5 S4 6-speeds.



COMES AS A COMPLETE DO IT YOURSELF KIT Only some cutting is required to allow proper clearance.



VIEW COMPARISON VIDEO -->HERE



VIEW INSTALLATION VIDEO -->HERE
NOTE: This video covers the installation of only the actual kit once the linkage rod is removed the car.



VIEW INFORMATIONAL VIDEO ABOUT THE LINKAGE ON CARS EQUIPPED WITH A 6 SPEED -->HERE
NOTE: This video helps you have a better understanding of the linkage and how this shift rod would be removed for replacement.



PICTURE OF THE JHM LINKAGE UPGRADE VS. STOCK -->HERE



PICTURE SHOWING THE DETAILS OF THE INSTALL -->HERE



NOTE: Some cutting of your OEM linkage rod is required, other than that, this is a full bolt in kit.



For shipping quotes: Please sign in or join then put the items you want in your shopping cart and proceed to checkout.
