Mishimoto Baffled Oil Catch Can - BMW F8X M3 / M4 / M2 Competition | MMBCC-F80-15CBE

• Direct fit for the 2015–2020 F8X BMW M3 and M4
• Single can mounts in line with the CCV system to separate oil from air using a 50-micron bronze filter
• Helps reduce carbon buildup on intake valves
• Patent-pending billet 6061 aluminum can sealed with Viton™ O-rings
• Installs in under 30 minutes
• Robust CNC-machined anodized aluminum bracket mounts the can in a serviceable location
• Includes pre-molded hoses for simplified installation
• Defends Vanos system and essential engine components from oil blow-by
• CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
• The catch can has a 3 oz. capacity for longer servicing intervals
• Internal air diverter increases air turbulence to improve oil separation
• Helps maintain proper octane levels to reduce potential detonation
• Filter and can are fully serviceable
• Mishimoto Lifetime Warranty

Give your 2015–2020 BMW M3/M4 the protection it deserves with the Mishimoto Baffled Oil Catch Can Kit. The introduction of the S55 into the M3 and M4 in 2015 was the first time compact M’s saw turbos from the factory, but these engines brought along another long-standing tradition—blow-by.

The Mishimoto BMW M3/M4 catch can kit uses proven engineering from the patent-pending Mishimoto 2-Port Compact Baffled Oil Catch Can, with its 50-micron bronze filter and internal baffle, to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid that features large inlet and outlet ports to match the inner dimension of the CCV hose. This baffled oil catch can defend your intercooler, intake system, and VANOS system from oil blow-by and helps maintain proper octane levels to reduce potential detonation.

The kit comes with two direct-fit hoses, which require no modification to the engine cover, and one direct-fit billet aluminum mounting bracket that is extremely easy to install and mounts the can in a serviceable location! Two aluminum, 3/4” barb fittings connect the hoses to the can. And, as every Mishimoto oil catch can, this baffled catch can kit comes with the Mishimoto Lifetime Warranty!

Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First, our catch cans are not heated. This means that all of the blow-by is able to condense in the can, including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan, while our catch cans trap the blow-by and keep it out of the engine permanently. If you’ve seen what we’ve seen in the bottom of our catch cans, you won’t want that draining back into your oil either.

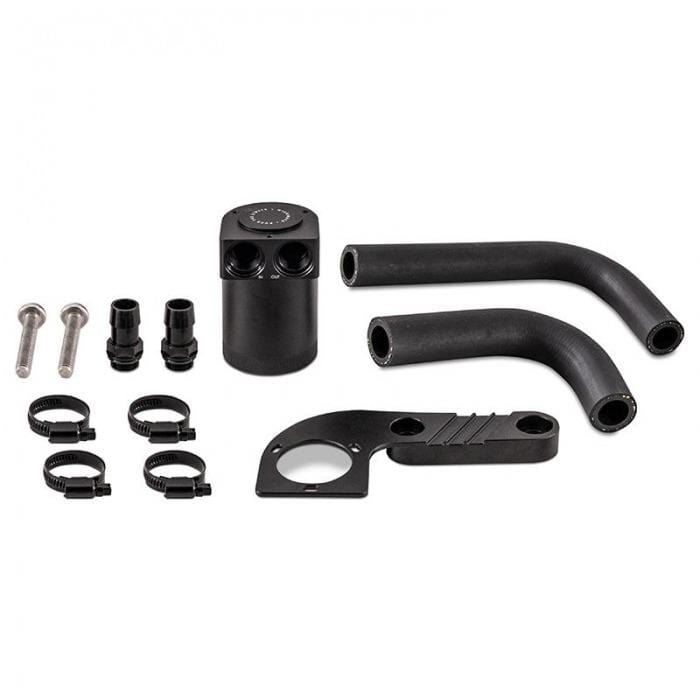

KIT INCLUDES

(1) Compact Baffled Oil Catch Can
(1) Application-Specific Mounting Bracket
(2) Direct-Fit Hoses
(2) 3/4" Aluminum Barbed Fittings
(4) Worm Gear Clamps
Mounting Hardware
Mishimoto Lifetime Warranty

NOTES

After installation, Mishimoto recommends checking the contents of the baffled catch cans every 1,000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can-do not rise above the internal baffle
