Oil Cooler 10-Row Universal Fitment by Mishimoto | MMOC-U

Read Product Details

ON SALE $472.50

$354.95

Part# MMOC-U

Important Fitment Note:
Custom installation must be done. This is NOT a direct fit kit!

In Stock

Direct Ship

QTY:

On Backorder
Notify Me when Back in stock

Earn Rewards! +1774 Points

Select Your Car to Verify Fitment

- Mishimoto, the world leader in performance cooling products, introduces you to the Mishimoto Universal 10-Row Oil Cooler Kit!

*** Custom installation must be done. This is NOT a direct fit kit!

ROWS
10

CORE
12.91" x 2.81"

THICKNESS
1.97"

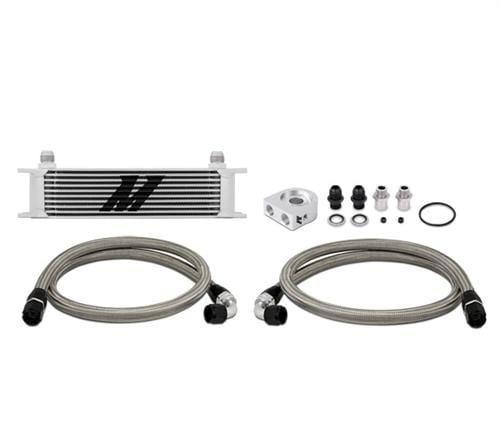

PURCHASE INCLUDES
(1) - 10 Row Oil Cooler (Silver or Black)
(1) - 4ft 9in Stainless Steel Braided Hose w/ -10AN fittings -- One straight fitting and one 90 degree swivel fitting
(1) - 4ft .75in stainless Steel Braided Hose w/ -10AN fittings
-- One straight fitting and one 90 degree swivel fitting
(1) - M20 Thermostatic Sandwich Plate (Non-Thermostatic Available)
(2) - -10AN Fittings
(2) - Dowty Oil Seals
(1) - Large O-Ring
(2) - 1/8" NPT Allen Key Plugs
(2) - Sandwich plate adapters

DASHES
No dashes = M20 x 1.5 -- M20 x 1.5
2 dashes = 3/4" -16UNF -- 3/4" -16UNF

BRAIDED HOSES
4ft .75 inch
4ft 9 inch

BRAIDED HOSE FITTINGS
-10AN

SANDWICH PLATE FITTINGS
-10AN

CAUTION
It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com.

INSTALLATION TORQUE SPECS
15-25 ft/lbs (operating range) for all straight fittings and banjo bolts. Do not exceed the maximum torque rating of 35 ft/lbs.

DESCRIPTIONProper oil temperature regulation is key to extending and preserving the life of your stock or high performance engine. Keep your temperatures in check with the Mishimoto universal oil cooler kit. This kit is applicable for most vehicles and includes all key components for reducing oil temperatures and providing your engine with extra protection against oil degradation.

This kit includes a billet anodized aluminum sandwich plate in either standard or thermostatic form. The optional Mishimoto thermostatic sandwich plate provides additional temperature control and will limit oil flow to the cooler until optimal temperatures are reached, making it ideal for those in cooler climates. The included core is our proven Mishimoto 10 row stacked plate cooler which can withstand high fluid pressures and significantly reduce oil temperatures while exhibiting minimal pressure loss. This kit includes both a -16 and M20-1.5 sandwich plate adapter which supports fitment for most makes and models. This kit also includes pre-assembled stainless steel braided oil lines with -10AN fittings and dowty seals for durable, leak free connections. Whether you are piloting a boosted rotary or blown small block the Mishimoto universal oil cooler kit will provide the efficiency you need to stay on the track and out of the shop. As with all our products this kit includes the Mishimoto lifetime warranty.
