Performance VR6 Engine Rebuild Kit for all 2.8L 12v VR6 | VR6REBUILDARP-KT
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Select Your Car to Verify Fitment
Rebuilding your VR6? This Kit includes all the parts you need to rebuild your block using parts from the number one brands in the business.
ARP main stud kits are made from 8740 chromoly steel and have a 190,000 psi tensile-strength rating. They are precision centerless-ground and thread-rolled to Mil-S-8879 specs, with a black oxide finish for corrosion resistance. The kits come complete with hardened washers and high-strength hex nuts.
ARP connecting rod bolts exclusive Wave Loc design takes the risk out of replacement-style rod bolts by eliminating the cause of failures in the bolt shank. Regular bolts are knurled to compensate for inconsistencies in OEM bolt holes. These knurls cut deeply into the bolt material, leaving sharp notches and enormous ''stress risers'' that promote failure. Straight shank bolts can be either too tight or loose causing cap misalignment and a variety of more serious problems. Wave Loc's symmetrical wave design eliminates ''sharp notches'' and guarantees cap alignment. Manufactured of a unique ARP2000 alloy with a tensile strength of 220,000 psi

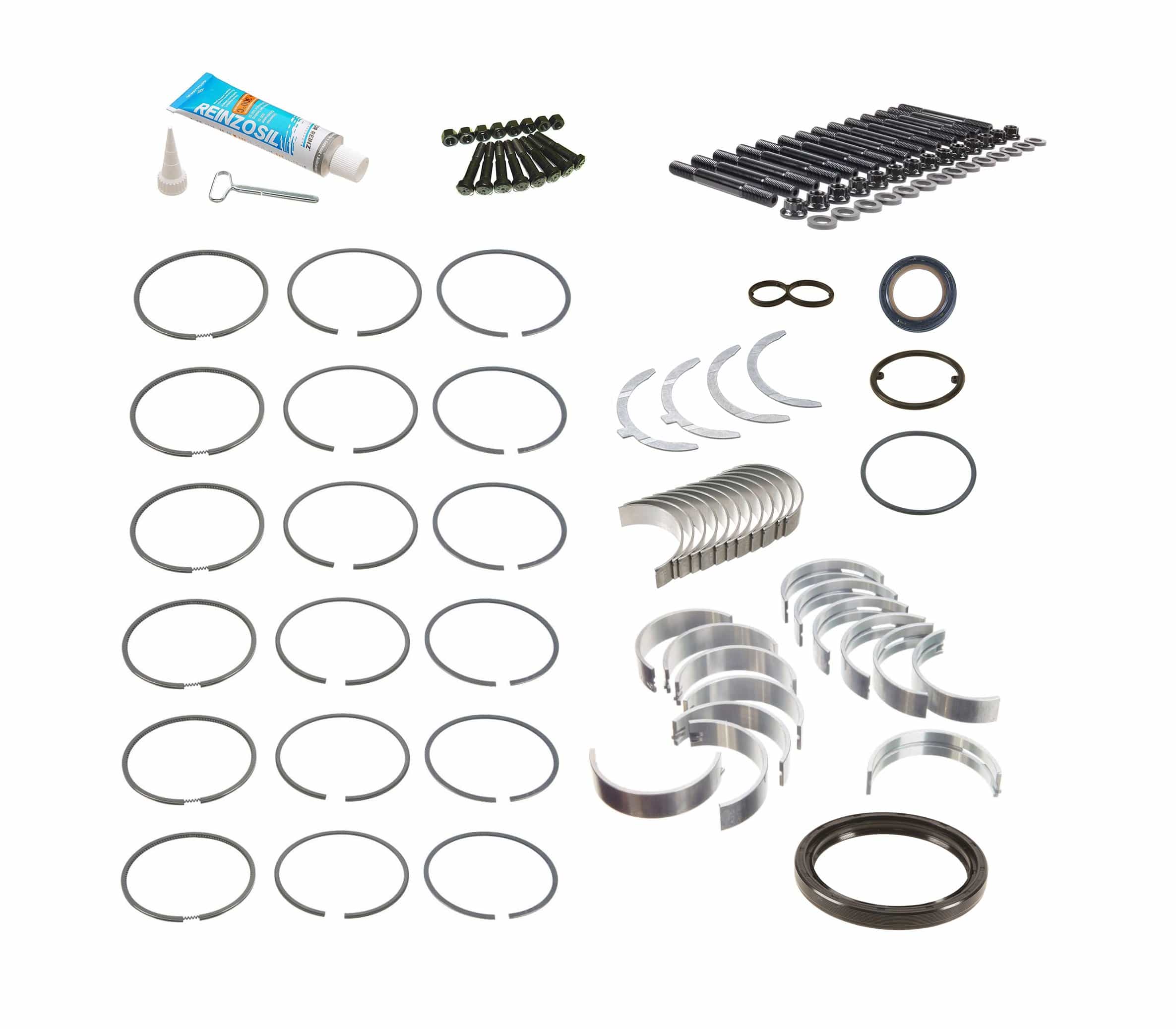

Kit Includes:
- Standard Size Main Bearings (Kolbenschmidt Brand)
- Thrust Washers (Glyco)
- Standard Size Rod Bearing (Kolbenschmidt Brand)
- Standard Size Piston Rings (Goetze)
- 8740 Rod Bolts (ARP)
- 8740 Main Studs (ARP)
- Front Crank Seal (Elring)
- Rear Main Seal (Elring)
- Engine Oil Cooler O-Ring (Victor Reinz)
- Oil Filter Housing Gasket (Victor Reinz)
- Water Pump Seal (Victor Reinz)
- 70ml Tube of Oil Pan / Gasket Sealer (Victor Reinz)
Part #'s
Standard Size Main Bearings
021-198-491-A / 021198491 A / 021 198 491 A
211-984-91A / 211 984 91A / 21198491A
Thrust Washers
022-105-635 / 022 105 635 / 022105635
221-056-35 / 221 056 35 / 22105635
021-105-635-B / 021105635 B / 021 105 635 B / 021105635B
Standard Size Rod Bearing
021-105-701-B-GLB / 021105701 B GLB / 021 105 701 B GLB
Standard Size Piston Rings
021-198-151 / 021 198 151 / 021198151
211-981-51 / 211 981 51 / 21198151
8740 Rod Bolts (ARP)
204-6006
8740 Main Studs
204-5403
Front Crank Seal
038-103-085-E / 038103085 E / 038 103 085 E
038-103-085 / 038 103 085 / 038103085
381-030-85E / 381 030 85E / 38103085E
381-030-85 / 381 030 85 / 38103085
Rear Main Seal
068-103-051-G / 068103051 G / 068 103 051 G / 068103051G
Engine Oil Cooler O-Ring
038-117-070-A / 038117070 A / 038 117 070 A / 038117070A
021-117-070-A / 021117070 A / 021 117 070 A / 021117070A
038-117-070-B / 038117070 B / 038 117 070 B / 038117070B
N90-181-402 / N90 181 402 / N90181402
381-170-70A / 381 170 70A / 38117070A
Oil Filter Housing Gasket
021-115-446-A / 021115446 A / 021 115 446 A / 021115446A
211-154-46A / 211 154 46A / 21115446A
Water Pump Seal
N90-436-301 / N90 436 301 / N90436301
70ml Tube of Oil Pan / Gasket Sealer
D17-640-4A2 / D17 640 4A2 / D176404A2
