Radium Engineering 2020+ VW Golf MK8 Catch Can Kit | RAD20-0887-FL

Radium Engineering VW Golf catch cans feature large 10AN ORB ports, a 4AN ORB drain port, 2-step oil separation baffling, and an O-ring sealed dipstick. These kits include everything needed for a complete installation. The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. Furthermore, the closed system prevents unwanted oil vapors from entering into the cabin.

FEATURES
-Effectively raises the octane and increased engine performance from cleaner inlet air
-Prevents oil buildup in the intake or intercooler system walls, throttle body, intake manifold, etc.
-Excessive oil collection can be an indicator of a damaged engine.
-Lowers hydrocarbon emissions
-Capacity: 7 fluid ounces

20-0887-FL CATCH CAN KIT, CCV, 20+ VW GOLF, FLUID LOCK

This catch can mounts using OEM holes and integrate perfectly with the surrounding components. The anodized aluminum catch can bracket mounts behind the LH headlight.

As shown below, SAE quick connect fittings are provided for both catch can ports

No permanent modifications are required as the hoses connect to the factory fittings and connectors.

As shown below, the catch can kit also fits under the OEM engine cover.

To retain factory functionality, the CCV catch can runs inline between the crankcase vent (CCV) port and the turbo inlet pipe. At low loads, this catch can experiences atmospheric pressure. However, when the engine is at high load (WOT), the catch can will experience high flow out of the crankcase. This would normally lead to oil and sludge accumulation throughout the intake system.

COMPATIBILITY
20+ Mk8 VW Golf GTI
24+ Mk8 VW Golf GTI 380
20+ Mk8 VW Golf R
24+ Mk8 VW Golf R333
2023 Mk8 VW Golf R20

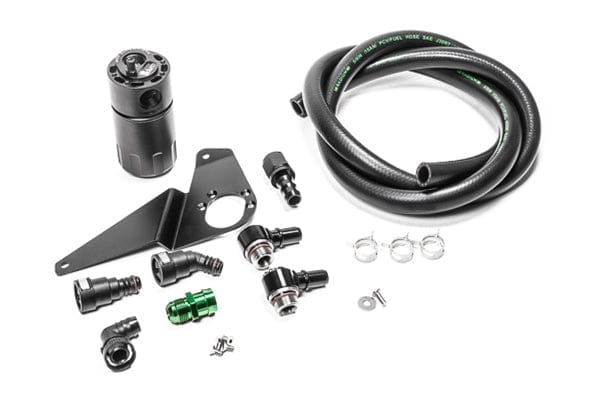

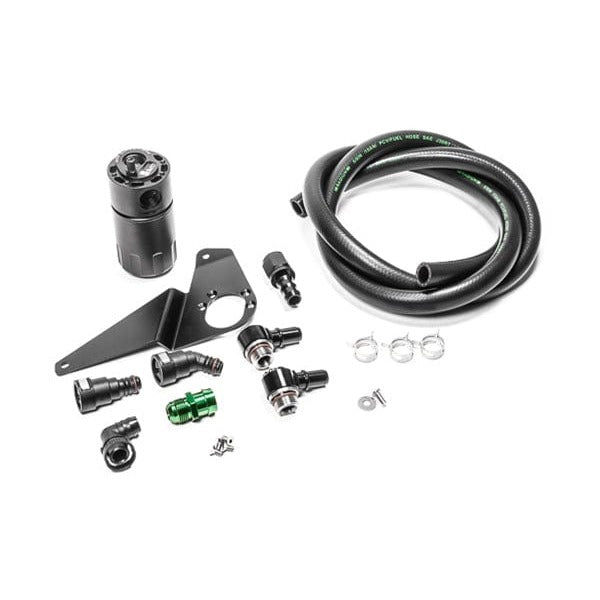

INCLUDES
-Baffled Fluid-Lock® oil catch can
-Anodized aluminum bracket
-Quick connect hose ends
-Quick connect fittings
-10AN (5/8") PCV hose
-10AN adapter fittings
-Stainless hardware
-Spring clamps
