Rear Subframe Stretch Bolt (M14x1.5x60) - VW/Audi Mk4

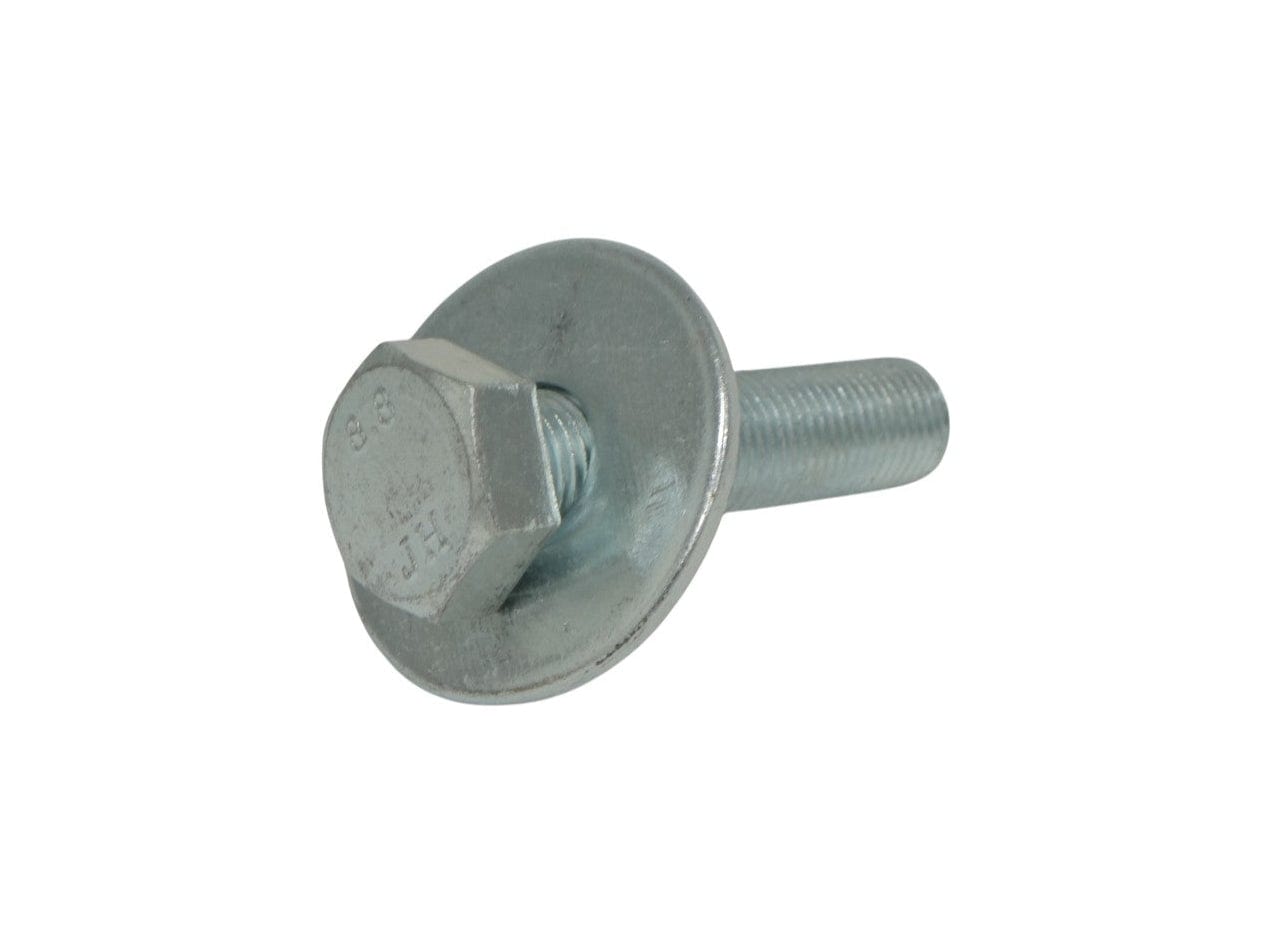

Photo is for representational purposes only. Actual product may vary slightly.
Rear Subframe Stretch Bolt (M14x1.5x60) - VW/Audi Mk4 | N90752802-AFT-KT
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
 - VW/Audi Mk4)
Select Your Car to Verify Fitment
Stretch bolts for all Mk4 Golf/Jetta/New Beetle Front Subframe Rear bolts. Priced EACH. 1 required per side.
⚠️ Disclaimer:
The original factory torque-to-yield (TTY) bolts for this application are no longer available (NLA). These are same-grade non-TTY replacements that meet or exceed OE strength.
When installing, do not follow the factory torque-plus-angle specification. Instead, use the standard torque values below and apply medium-strength blue threadlocker to clean threads for added safety if you want.
The original factory torque-to-yield (TTY) bolts for this application are no longer available (NLA). These are same-grade non-TTY replacements that meet or exceed OE strength.
When installing, do not follow the factory torque-plus-angle specification. Instead, use the standard torque values below and apply medium-strength blue threadlocker to clean threads for added safety if you want.
| Bolt Size | Thread Pitch | Grade 8.8 | Grade 10.9 | Grade 12.9 |
|---|---|---|---|---|
| M6 | 1.0 | 7 ft-lb | 9 ft-lb | 10 ft-lb |
| M8 | 1.25 | 16 ft-lb | 22 ft-lb | 26 ft-lb |
| M10 | 1.5 | 32 ft-lb | 44 ft-lb | 52 ft-lb |
| M12 | 1.75 | 57 ft-lb | 74 ft-lb | 89 ft-lb |
| M14 | 2.0 | 92 ft-lb | 118 ft-lb | 140 ft-lb |
| M16 | 2.0 | 144 ft-lb | 181 ft-lb | 218 ft-lb |
*Values are for clean, dry threads — reduce by 10–20% if lubricated.*
Part #'s
N90-752-802 / N90 752 802 / N90752802
N90-752-801 / N90 752 801 / N90752801
