The Revo Complete Brake Kit comes complete with everything required to upgrade your stopping power. With front Calipers and front and rear discs manufactured by industry leaders Alcon® and designed by our in-house engineers, each kit includes everything you need in one box; brake lines, brake pads, front floating discs, rear 310mm discs, front mono-bloc calipers, brackets and even brake fluid.
OVERVIEW
The Revo Complete Brake Kit Upgrade is engineered to improve your stopping power in any condition. Whilst stock brakes are perfectly adequate for general driving; the braking system is often overlooked when enhancing a vehicle's performance. The Revo brake kit is made by world-leading brake manufacturer Alcon; utilizing over 30years of motorsport braking innovation only the best materials, techniques and processes have been used.
In-depth testing is a key factor in the development of our products; our brake kits have been aggressively tested in a variety of conditions in both road and track scenarios to ensure they meet the constant high stress of track days, sprints and fast road driving. Test kits were installed on our in-house development vehicles along with several vehicles around the world and put through their paces to prove their worth over the stock setup; providing exceptional performance combined with consistency and durability you can rely on, corner after corner, stop after stop.
Made by world leading brake manufacturer Alcon, only the best materials, techniques and processes have been used, with every step of the manufacturing process completed in the UK. Alcon has been at the forefront of motorsport braking innovation for over 30 years.
BENEFITS
- Low Rotational Mass
- Improved Pedal Responsiveness
- Lower Long-term Maintenance Costs
- Superior Heat Dissipation: Less Prone To Fade
- Increased Braking Performance On & Off Track
100 - 0 MPH AVERAGE STOPPING DISTANCE
FRONT CALLIPERS
Our lightweight six-pot caliper is a single-piece aluminum Mono-bloc design. This design has been used to maximize rigidity, pedal feel and overall braking performance. The caliper incorporates a progressive six-piston setup to give great brake balance, and high quality seals increasing resilience to road salts and other corrosive elements.
FRONT DISCS
We use a two-piece floating disc and hat design to efficiently dissipate heat. The friction surface features crescent groves designed to increase bite and remove debris from the pad surface giving the perfect balance between brake feel and longevity. The discs feature internal cooling vanes that draw air from the center of the disc outward to maximize heat dissipation and minimize heat transfer to the calipers, pads, and brake fluid, which plays an all-important part in providing consistent stopping power for your vehicle.
REAR DISCS
Internal vanes are used to draw air through the center of the disc outward, allowing the heat to transfer as it passes. The rotation of the discs and vanes play an important role in brake cooling as it acts as a pump to move air. The Revo upgrade consists of a right and left-hand disc to optimize cooling and ensure consistent stopping power for your vehicle.
BRAKE PADS (FRONT AND REAR)
We supply our brake kit with Ferodo DS Performance Pads that offer a consistent pedal feel and fantastic braking performance both from cold and when hot. Combined with low wheel dusting, minimal noise characteristics, and low disc and pad wear rates this is the ideal pad compound for general road and track driving.
BRAKE LINES (FRONT AND REAR)
Our brake kit is supplied with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.
BRAKE FLUID
Our brakes are supplied with Motul Dot 5.1 brake fluid; specifically designed for brakes systems with ABS. This is a long-life synthetic brake fluid with superior boiling point qualities to conventional Dot 3 and 4 spec. fluids.

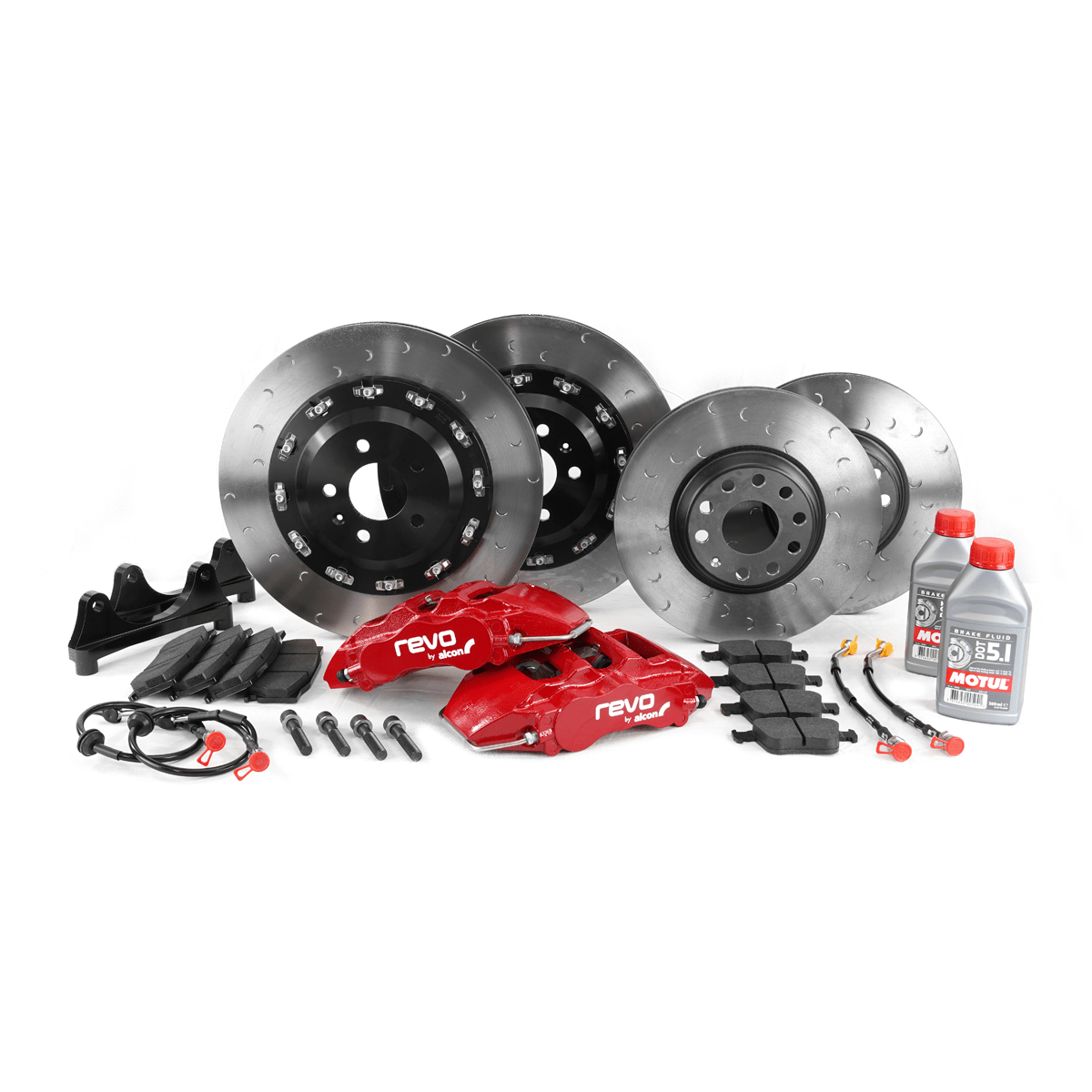

KIT CONTENTS
- Revo by Alcon Caliper x2 (3.3 Kg Each)
- Revo by Alcon Front Discs x2 (7.66 Kg Each)
- 6061 Aluminum Anodized Bell x2
- Revo by Alcon Rear 310mm Discs x2
- Caliper Bracket
- Revo Stainless Steel Braided Brake Lines (Front and Rear)
- Motul Dot 5.1 Brake Fluid
- Ferodo DS Performance Brake Pads (Front and Rear)
FITMENT NOTES
- Discs: Designed to replace factory part number 5Q0-615-601-E (Supersession(s): 1K0615601N). Please check you have the OE 310x22 rear rotors before purchasing
- MK6 Brake Lines: These will fit vehicles with the following PR Codes 1KD-1KE-1KF-1KV-1KW-1KY-1KZ
- MK5 Brake Lines: All models on the Golf Mk5 MLB
- MQB Brake Kits: Please note that two separate kits are available for FWD and AWD vehicle models.
TECHNICAL DOCUMENTS
The following documents are available to view:
FITTING TEMPLATE
Download the Revo Big Brake Printable 355mm Disc Template. See if the Big Brake kits will fit inside your wheels.FITTING TEMPLATE
Download the Revo Big Brake Printable 380mm Disc Template. See if the Big Brake kits will fit inside your wheels.
