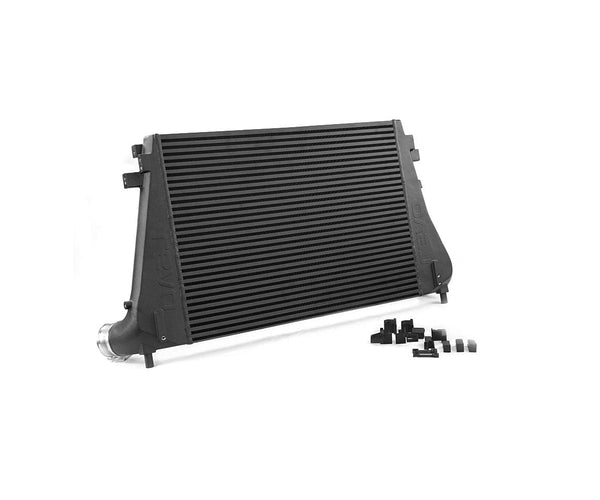

REVO MQB Chassis (Intercooler) | RV581C100100

INCREASED CORE VOLUME

The Revo Intercooler was built around a simple principle; create a cooler that can keep up with your demand for power. Designed from the ground up, the Revo Intercooler has much larger core volume than the OEM part and offers perfect fitment, improving cooling by utilizing the full volume of the stock location space as well as cold ambient air from the front of the vehicle.

END TANK DESIGN

The stock end tanks are inefficiently designed and create turbulent air in corners. These sections create a natural flow distribution but slow charge air and increase pressure drop. The Revo end tank geometry maintains the largest possible cross-sectional flow area to and from the core. Coupled with a cast interior surface finish, the Revo end tanks allow air to flow freely without obstructions from turbulent air pockets found in the OE intercooler. End tanks play an important part in maintaining pressure and work in harmony with the core to promote airflow, the Revo end tanks are designed to offer the optimal balance between both of these key features.

BAR AND PLATE CORE

Designed with a bar and plate core to maximize the efficiency of heat transfer, the pressure drop is also controlled as the air meets less resistance compared to that of a tube and fin alternative. The Revo Intercooler also features carefully specified fin geometry to maximize cooling properties while minimizing flow restriction. The ambient core side utilizes louvred fins to slow ambient airflow which improves heat transfer, while the charge core side features an offset internal fin design to balance surface area and air resistance to minimize pressure drop.

SILICONE HOSES (AVAILABLE AS A SEPARATE ITEM HERE, OR INCLUDED IN THE FULL KIT)

Stronger oil-resistant silicone hoses, the Revo Intercooler can be installed using the stock pipework or recommended Revo Intercooler pipework. The internal diameter of each silicone is precisely matched to the outer diameter of the ribbed inlet and outlet connections along with a unique Flush Fit design, allowing a smooth transition between components.

BRACKETS (INCLUDED WITH INTERCOOLER)

To ensures precision fitment, Only Revo offers a CNC machined bracket system. Produced to a superior tolerance than that of a cast mounting system, this unique feature also ensures that the supporting brackets are strong and less prone to failure.

INTERCOOLER CHARGE PIPES (INCLUDED IN THE FULL KIT)

Featuring larger internal diameters, fewer restrictions for smoother airflow, and optimized routing, the turbo meets less resistance and can perform more effectively.

A multitude of design features and attention to detail that Only Revo offer means this is a product that not only looks great but more importantly performs. Reinforced, oil-resistant silicone hoses, lightweight mandrel-bent aluminum pipework and flush fit joints to eliminate turbulence, the Revo Intercooler Pipe upgrade is designed to fit either the stock or Revo Intercooler.

PERFORMANCE DATA

Golf GTI with Revo Stage 2 Software, Golf R intercooler and Carbon Series Front Scoop

Showing the last of five consecutive dyno runs, the efficiency of the Revo Intercooler over the OEM Golf R intercooler is highlighted. With max gains of +10 HP & +20NM Torque, along with increased performance throughout the entire rev range, the stock intercooler struggles to effectively function in comparison to the Revo Intercooler which remained consistent throughout, losing just 2% peak power over the 5 runs compared to 5% on the stock cooler.

INLET TEMPERATURE

This is a metric used to confirm that testing on the Revo MQB Intercooler. This is used to show that the air temperatures going into the intercooler were similar for each test, confirming that outlet temperatures shown in the following graphs are purely down to differences in intercooler design/construction. As can be seen, the inlet temperatures during testing were hotter on the Revo Intercooler, yet the Revo intercooler produced the lower outlet temps proving the cooling efficiency.

OUTLET TEMPERATURE

This graph illustrates the increased cooling performance of the Revo intercooler vs OEM Golf R intercooler over all five runs. The Revo Intercooler keeps temperatures below 49ºC on the fifth run, lower than the stock on its first at 58ºC.
