Southbend Clutch Stage 2 Daily South Bend | DXD Racing 1.8T Gen3 TSi Clutch & Flywheel Kit K70688F-HD-O

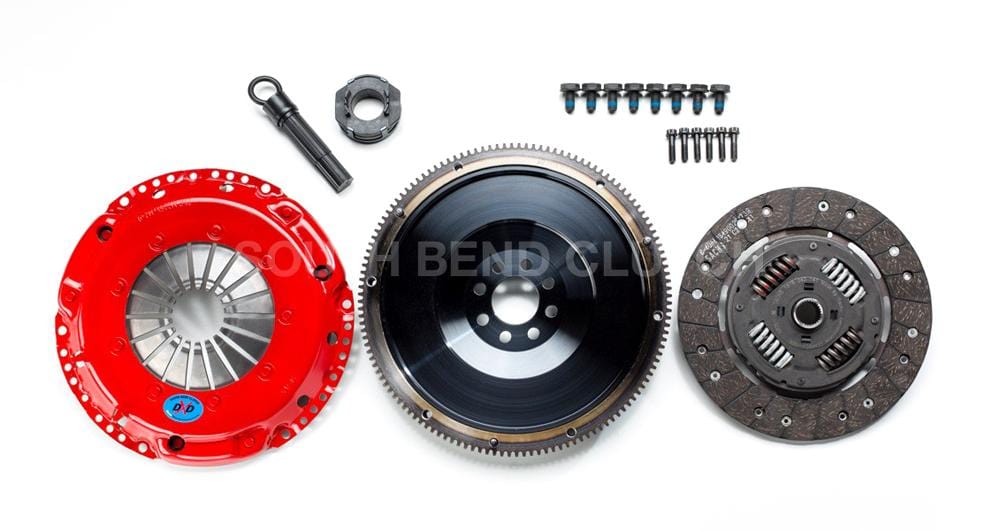

South Bend Clutch 1.8T Gen3 TSi Clutch & Flywheel Kit | K70688F-HD-O

Read Product Details

ON SALE $1,382.02

$982.98

Part# K70688F-HD-O

In Stock

Direct Ship

QTY:

On Backorder
Notify Me when Back in stock

Earn Rewards! +4914 Points

Select Your Car to Verify Fitment

UroTuning is pleased to present South Bend Clutch clutches for your 1.8T Gen3 TSi. South Bend Clutches are developed and tested across many different friction products, pressure plate loads and flywheel designs with one goal in mind, to create clutch systems not only with perfect balance and symmetry but also to perfectly complement engine modifications without compromise in reliability, drivability or enjoyment.

The success of the development efforts has produced a performance clutch product line of the highest quality and performance available for Porsche, Audi and Volkswagen vehicles, South Bend Clutches.

Each clutch system is specially matched to specific driving styles, uses and power levels to insure the needs of each client are accomplished. Often times, a compromise between drivability and pedal feel must be made to achieve power handling. If you are drag racing you will have different requirements for clutch operation than someone who wishes to participate in daily spirited driving or endurance racing. One clutch certainly does not fit all and we have done the homework for you to recommend a clutch system that meets your specific goals.

Each South Bend Clutch is offered in either a Daily, Endurance or Drag configuration to accomplish the power handling you need.

NOTE: This clutch kit will only fit 1.8T Gen3 TSI engines from 2014-up

The Classes

Daily

The Daily configuration is focused around an OEM pedal feel and initial engagement characteristics. This is the clutch that won"t give you a significantly stronger left leg but will provide many thousands of miles of ease of use and operation with the ability to transfer different Stages of engine performance to the tires. The quick engagement of most aftermarket clutches or the "grab is greatly reduced and in most cases completely eliminated to allow for smooth clutch release and easy initial acceleration.

Endurance

The Endurance configuration focuses on reduced transmission wear and perfect transitions from gear to gear. Kevlar and other more exotic materials are used to hold the power for many hours of abuse and torsion springs are used to damper between the engine and gearbox. Pedal feel is typically only slightly more rigid and initial engagement is certainly manageable resulting in a driveline component that quite handily eliminates any concerns from the Drivers and Crew Chief.

Drag

In no other form of racing are tenths and hundredths of a second more important nor is a vehicles driveline more abused in such a short period of time. It is with this understanding that South Bend has developed a line of clutches specific to the needs of this ever demanding sport. Pedal travel is reduced allowing for quicker launches off the tree and initial engagement is as rapid as possible getting all of the power to the ground instantaneously. Use of puck style discs and SFI approved Race Covers provide plenty of power handling capability and aids in the perfect pass every time.

"Drag" clutches are puck style discs.

The Stages

All stages come with South Bend single mass steel flywheel

Stage II

The South Bend Stage 2 Clutch Upgrade is perfect for those who modified their engines to Unitronic Stage 2 and Stage 2+ power levels. Offered in specific configurations of Daily, Endurance or Drag, the South Bend Stage 2 is perfectly matched to your driving style and your specific use. Each Stage 2 Clutch is engineered to specifically support engine modification with increased clamp load and different material choices across the individual Stage 2 configurations. Each configuration includes all of the benefits of a South Bend Stage 1 Clutch Upgrade but also includes additional benefits specific to each.

Stage II Daily

This Heavy Duty Pressure Plate has an increased clamp load with little or no increase in pedal pressure. The Organic disc material has a high metal content that increases the co-efficient of friction by two times over a stock lining and increases rotational strength up to a 12,000 RPM burst point. This clutch system maintains a stock feel while offering strength and durability. Recommended usage is daily, street and moderate race.

Stage II Endurance

This clutch system is designed for the racing climate. The pressure plate is precision balanced for vibration free operation at high RPM. The pressure plate fulcrum is altered for a positive disengagement and a quick shift. The disc is engineered with a Dual Damped design to provide accurate control when accelerating through corners. The friction material is a hybrid using a full face Feramic (Sintered Iron) lining on the flywheel side and a high metal content Organic lining on the pressure plate side. Engagement is positive yet buffered due to the high graphite content unique to Feramic facings. Recommended uses are daily and street with an emphasis on Rally and Endurance racing.

Race Engineered Pressure Plates (SS) used in Stage III and IV clutch kits

These performance clutches deliver more transmittable torque and stability, longer life and superior thermal resistance. They also deliver noticeably better dynamics through higher clamp load when driving the vehicle to its limits.

Stage III Daily

This clutch package is designed for high HP vehicles desiring a start performance similar to O.E. The pressure plate is Race Engineered (SS) and SFI approved with significant load increase over stage 1 or 2 pressure plates (+600-800 lbs.). Expect a pedal effort increase of 20%-25%. Discs are assembled with heat-treated wear resistant hubs; drive plates and springs for high load transfer and dependable operation. The sprung centers on the disc, in conjunction with the marcel fin between the linings, create a dual dampening effect that simulates O.E. start performance. A Performance Organic friction material with a high metal content increases torque and RPM capability and maintains low operating temperatures reducing wear and glazing. Recommended usages are daily, spirited street and occasional track.

Stage III Endurance

This kit uses the same Race Engineered SFI approved pressure plate as the Stage 3 Daily upgrade. The disc is designed for the special needs of a vehicle with circuit racing in mind. Kevlar friction material is used for its unique static to dynamic ratios of friction coefficients at high energy levels. This translates to a perfect transition from one gear to the next. Discs are assembled with only performance components and equipped with torsion springs functioning as a damper between engine and gearbox. Recommend usages are Rally, Endurance Race, Clubsport, Autocross, Street and Daily.

Stage IV Extreme

This is a "build to order" clutch kit intended for cars with HP modifications exceeding Stage 3 levels. The Race Engineered pressure plate is modified for maximum plate load. The discs are puck design with sprung and un-sprung options. Friction material options include Sintered Iron and Graphite Impregnated Ceramic. Engagement characteristics can be abrupt. Hydraulic systems may need enhancing for proper clutch separation. Torque ratings are calculated at time of ordering.

Flywheel Features

Flywheels manufactured by South Bend are made from low carbon, hot rolled steel that is highly resistant to warping and perfectly suited for the friction materials mated to them. Single mount CNC machining guarantees precise tolerances and perfect balance exceeding O.E. specifications. Extensive field-testing has been done to determine the proper weight for each specific vehicle and to ensure smooth operation, safety and durability under extreme operating conditions. The steel flywheel with this kit weights 19 lbs.

Stage

Intent

Max Torque

Flywheel Included

Part Number

2	Daily	400	Yes - 19 lbs	K70688F-HD-O
2	Endurance	450	Yes - 19 lbs	K70688F-HD-OFE
2	Drag	470	Yes - 19 lbs	K70688F-HD-DXD-B
3	Daily	440	Yes - 19 lbs	K70688F-SS-O
3	Endurance	485	Yes - 19 lbs	K70688F-SS-TZ
3	Drag	510	Yes - 19 lbs	K70688F-SS-DXD-B
4	Extreme	600+	Yes - 19 lbs	K70688F-SS-X

All South Bend Clutches for the 1.8T Gen3 TSI include crank bolts and are SFI Approved.

Select your class and stage with the dropdown above
