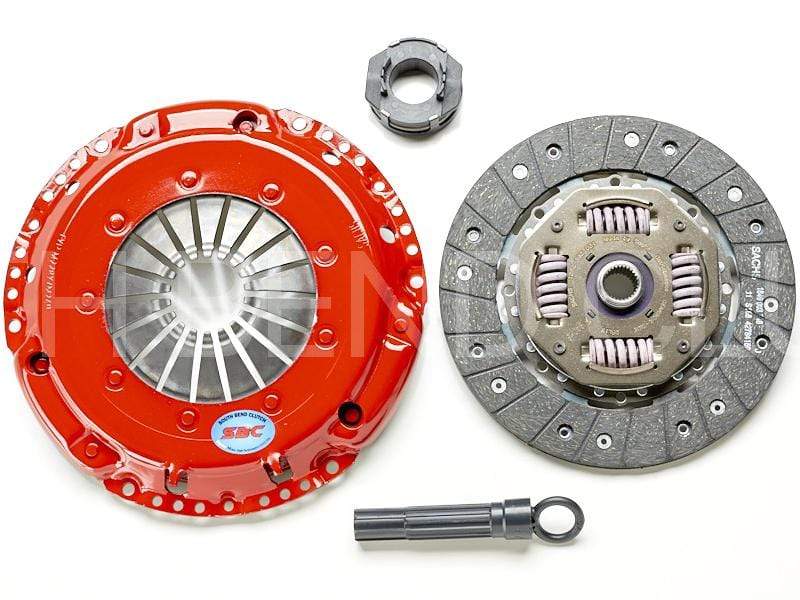

South Bend Clutch 12v VR6 Clutch Kit | K70038-HD

Daily

The Daily configuration is focused around an OEM pedal feel and initial engagement characteristics. This is the clutch that wont give you a significantly stronger left leg but will provide many thousands of miles of ease of use and operation with the ability to transfer different Stages of engine performance to the tires. The quick engagement of most aftermarket clutches or the grab" is greatly reduced and in most cases completely eliminated to allow for smooth clutch release and easy initial acceleration.

Endurance

The Endurance configuration focuses on reduced transmission wear and perfect transitions from gear to gear. Kevlar and other more exotic materials are used to hold the power for many hours of abuse and torsion springs are used to damper between the engine and gearbox. Pedal feel is typically only slightly more rigid and initial engagement is certainly manageable resulting in a driveline component that quite handily eliminates any concerns from the Drivers and Crew Chief.

Drag

In no other form of racing are tenths and hundredths of a second more important nor is a vehicles driveline more abused in such a short period of time. It is with this understanding that South Bend has developed a line of clutches specific to the needs of this ever demanding sport. Pedal travel is reduced allowing for quicker launches off the tree and initial engagement is as rapid as possible getting all of the power to the ground instantaneously. Use of puck style discs and SFI approved Race Covers provide plenty of power handling capability and aids in the perfect pass every time.

This clutch package is designed for high HP vehicles desiring a start performance similar to O.E. The pressure plate is Race Engineered (SS) and SFI approved with significant load increase over stage 1 or 2 pressure plates (+600-800 lbs.). Expect a pedal effort increase of 20%-25%. Discs are assembled with heat-treated wear resistant hubs; drive plates and springs for high load transfer and dependable operation. The sprung centers on the disc, in conjunction with the marcel fin between the linings, create a dual dampening effect that simulates O.E. start performance. A Performance Organic friction material with a high metal content increases torque and RPM capability and maintains low operating temperatures reducing wear and glazing. Recommended usages are daily, spirited street and occasional track.

This kit uses the same Race Engineered SFI approved pressure plate as the Stage 3 Daily upgrade. The disc is designed for the special needs of a vehicle with circuit racing in mind. Kevlar friction material is used for its unique static to dynamic ratios of friction co-efficients at high energy levels. This translates to a perfect transition from one gear to the next. Discs are assembled with only performance components and equipped with torsion springs functioning as a damper between engine and gearbox. Recommend usages are Rally, Endurance Race, Clubsport, Autocross, Street and Daily.

An SFI approved single mass flywheel is recommended for this application to get optimal performance.

This clutch package is built to handle heavily modified cars and designed to function according to the specific needs of the and 1/8th mile track. The pressure plate for this kit is SFI approved Race Cover engineered to disengage with less pedal travel shortening the shift time. Discs are a puck design, which reduces rotational mass and are assembled with all high carbon component pieces for maximum strength. The friction material used is Graphite impregnated Ceramic perfectly suited for drag racing because of its maximum friction co-efficient, rapid heat dissipation and abrupt engagement characteristics. Recommended uses are Drag, Towing and Drifting.

TThis is a "build to order" clutch kit intended for cars with HP modifications exceeding Stage 3 levels. The Race Engineered pressure plate is modified for maximum plate load. The discs are puck design with sprung and un-sprung options. Friction material options include Sintered Iron and Graphite Impregnated Ceramic. Engagement characteristics can be abrupt. Hydraulic systems may need enhancing for proper clutch separation. Torque ratings are calculated at time of ordering.

Flywheels manufactured by South Bend are made from low carbon, hot rolled steel that is highly resistant to warping and perfectly suited for the friction materials mated to them. Single mount CNC machining guarantees precise tolerances and perfect balance exceeding O.E. specifications. Extensive field-testing has been done to determine the proper weight for each specific vehicle and to ensure smooth operation, safety and durability under extreme operating conditions.
