Stage 3 RS4 240mm Clutch Conversion Kit - VW/Audi 1.8T B5 & B6 A4 / B5 Passat
Stage 3 RS4 240mm Clutch Conversion Kit - VW/Audi 1.8T B5 & B6 A4 / B5 Passat
- Share:
Select Your Car to Verify Fitment
This Kit provides you with everything you need to upgrade your B5 & B5 1.8T Clutch from a 228mm disc to a 240mm disc with a lightened flywheel to improve throttle response and handle increased power up to 330ft/lbs. The flywheel is machined in-house at 034Motorsport from billet aluminum and engineered to be a direct high-performance replacement for the failure-prone dual-mass factory unit. Includes replaceable steel friction surface and steel ring gear.
The FX300 System uses the Power Plus I Pressure Plate with the Steel Back Segmented Kevlar disc. This clutch is designed for the ultimate street enthusiast or weekend racer running a normally aspirated car equipped with cylinder head work and/or hotter cam(s), or with medium-boost turbo or super-charger, or up to 100hp NO2. The FX300 features only slightly increased pedal pressure (overstock components), long life disc and smooth engagement.
Features
- Heavy-duty street & racing system
- Holding capacity 110% over stock
- Heavy-Duty reinforced pressure plate
- Hi-Leverage pressure ring design
- Sprung hub/cushioned disc
- Steel backed Segmented Carbon/Kevlar

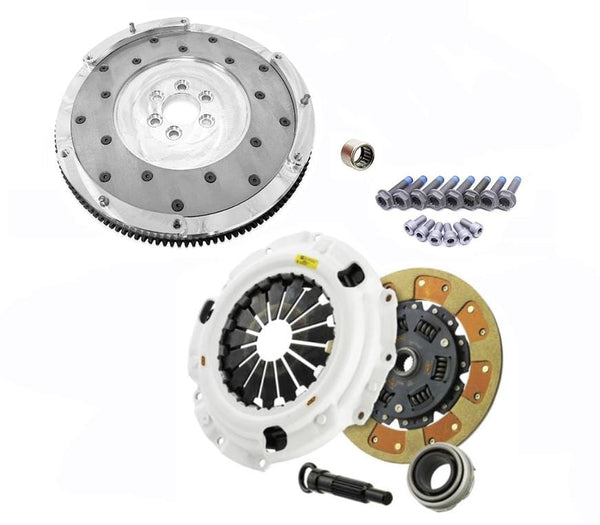

Kit Includes:
- FX300 Clutch Kit with Pilot Bearing, and Clutch Alignment Tool (Clutch Masters)
- Lightweight Aluminum Flywheel with Bolts (034Motorsport)
- (6) Pressure Plate Bolts M8x16 (Genuine)
Fits both 5 speed and 6 speed models.
Part #'s
Lightweight Aluminum Flywheel
034-503-1007
Flywheel Bolts
N90-665-001 / N90 665 001 / N90665001
Pressure Plate Bolts M8x16
N01-473-911 / N01 473 911 / N01473911
N01-473-91 / N01 473 91 / N0147391
N01-473-92 / N01 473 92 / N0147392
Pilot Bearing
056-105-313-C / 056105313 C / 056 105 313 C / 056105313C
FX300 Clutch Kit
02029-HDTZ
