SuperPro Supaloy Light Weight Lower Control Arm Ultimate Kit - VW Mk5 / Mk6 / Audi / 8P | ALOY0001K-ULTM

SuperPro Roll Control Ball Joints for the ultimate in suspension tuning, and all Genuine VW hardware.

• Lighter, lower unsprung weight
• 44% lighter than stock or OE steel arm
• Corrosion resistant

• Special low friction stainless steel insert
• Bushing bonded direct to high-stress alloy bracket

• Superior engineered polyurethane bushing
• Stainless steel metal tube
• Knurled bore for superior grease retention

• Up to 1.5 Deg extra dynamic positive caster
• Supertrac anti-lift geometry for more traction!




  Adjustable ball joints for B6 and Mk5/Mk6 platform cars. As anyone that has modified the suspension setup of their Mk5/Mk6/B6 vehicle knows, the stock control arms/subframe doesn't allow for proper camber adjustment. This adjustment is key if you want to get the best driving feel and control from your coilover or sport suspension. This kit will allow you to independently adjust over -0.5* of negative camber for each side.

  In addition, these ball joints feature roll-center correcting geometry to accommodate for lowered vehicles. This means better camber curves, less bump steer and more mechanical grip at the front end of your VW or Audi by making the control arms closer to parallel to the ground and closer to what the engineers designed into the vehicle.

  Features:

  • Improved handling and stability
  • Reduced rear tire wear
  • Fits existing suspension arms without modification
  • No increase in vibration or road noise

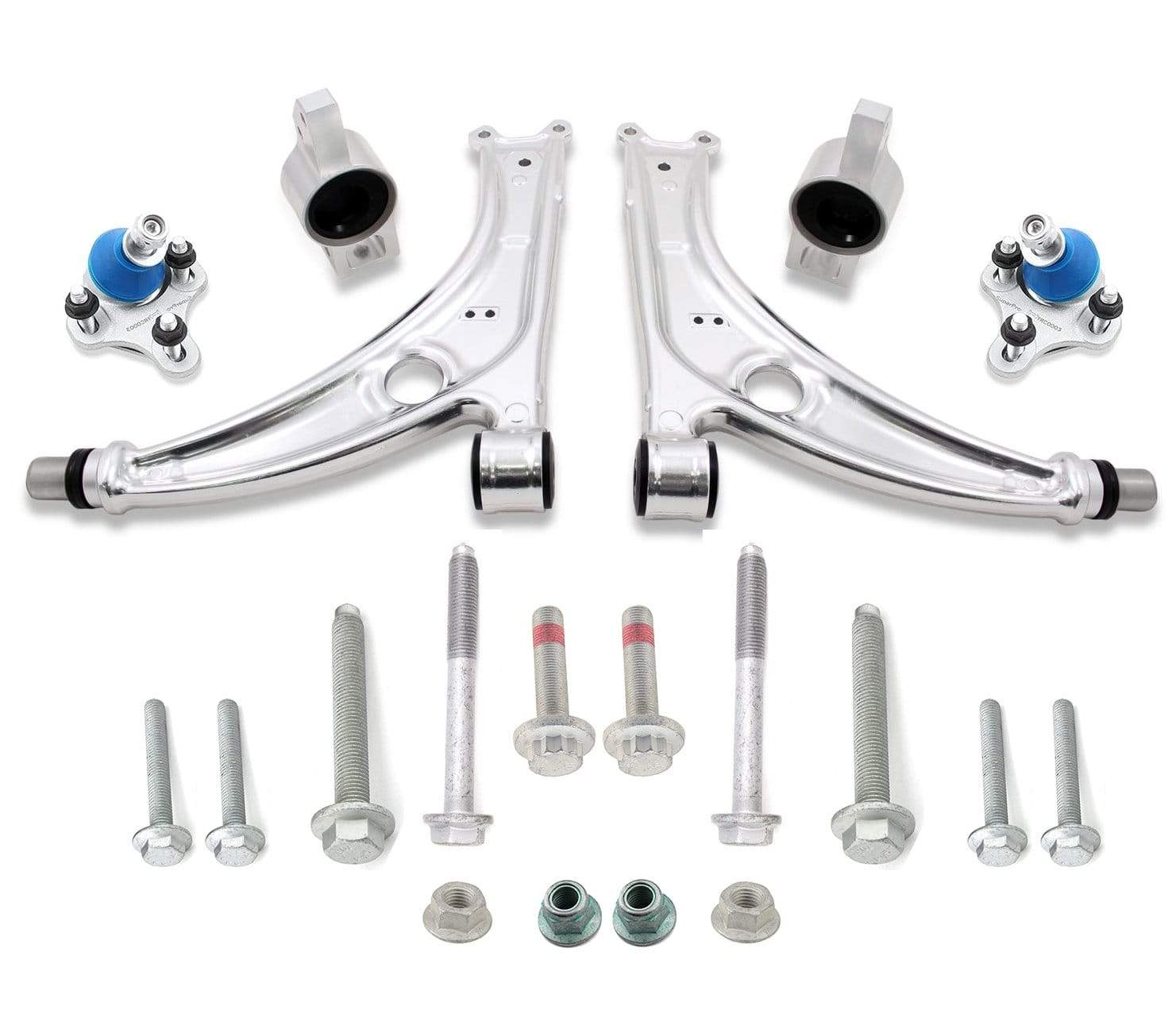

  Kit includes the following components:

  (2) N0150816 - Shouldered Hex Nut - M12x1.5 (Geniune VW)

  (2) N10141003 - Hex Bolt - M12x1.5x110 (Geniune VW)

  (4) N10579702 - Hex Bolt - M10x76 (Geniune VW)

  (2) Hex Bolt - M12x1.5x90 (Geniune VW)

  (1) TRC0003 - SuperPro Roll Control Ball Joints

  (2) N10106402 - Self-Locking Nut - M12x1.5 (Geniune VW)

  (2) WHT005437A - Drive Axle Shoulder Bolt - M16x1.5x70 (Geniune VW)

  (1) ALOY0001K - Light Weight Lower Control Arm Kit (SuperPro Supaloy)



  Part #'s

  N01-508-16 / N01 508 16 / N0150816

  N10-141-003- / N10141003 / N10 141 003 / N10141003

  N10-579-702- / N10579702 / N10 579 702 / N10579702

  N91-039-802 / N91 039 802 / N91039802

  N10-106-402- / N10106402 / N10 106 402 / N10106402

  WHT-005-437-A / WHT005437 A / WHT 005 437 A / WHT005437A
