Basic Timing Chain Kit - VW/Audi / 3.0T / 3.2L / B8 A4 / C6 A6 / & More | TCK-30T32L-BC-KT

This Kit contains all timing chains and tensioners. If your experiencing slow cranking or no start at all, it is recommended to scan for faults first. If faults for timing show up, it is likely time to service your timing chain system.

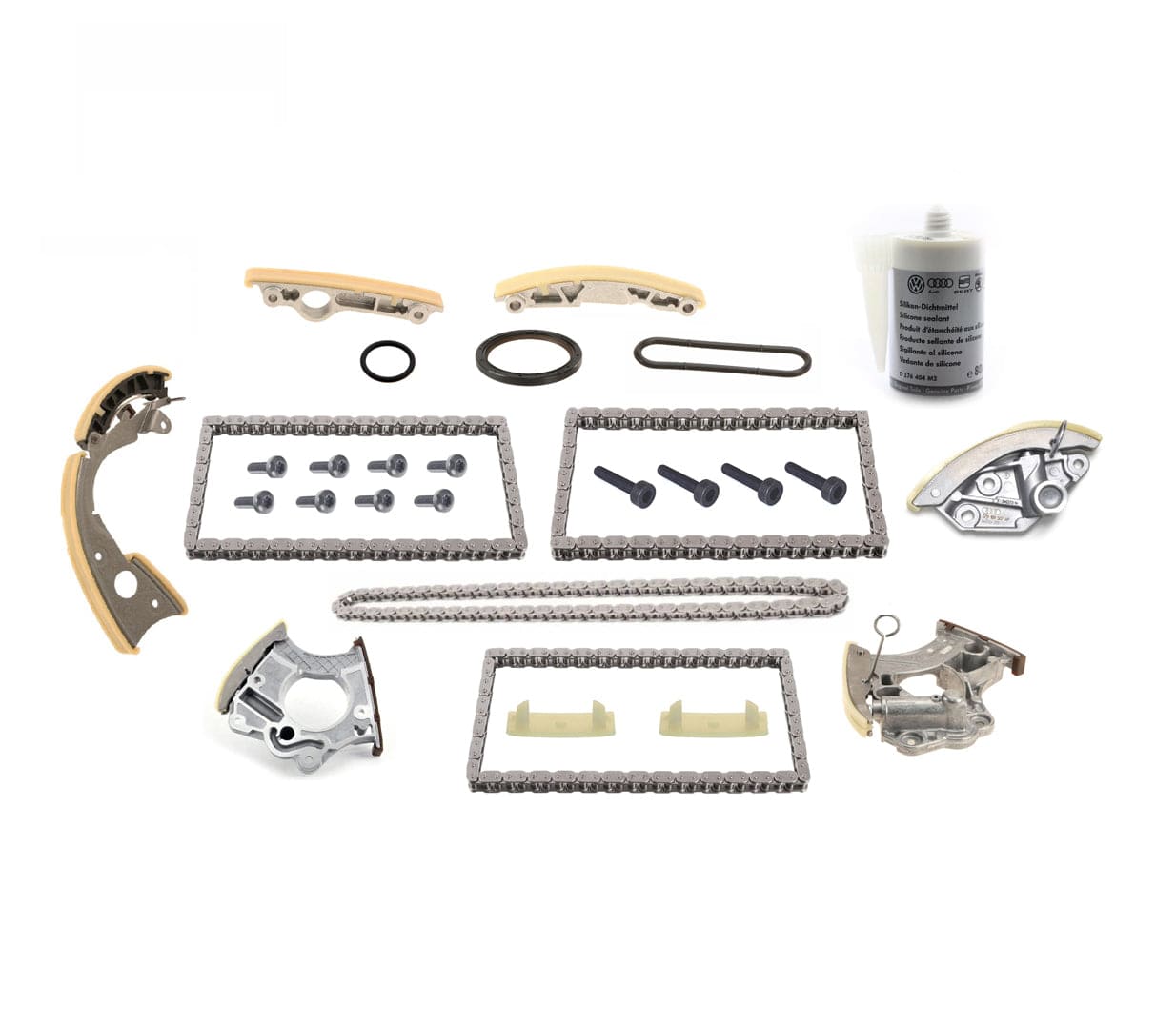

Kit Includes all Genuine Parts:


- (1) Lower Timing Chain
- (1) Secondary Timing Chain
- (1) Center Timing Chain
- (1) Secondary Timing Chain
- (1) Right Timing Chain Tensioner
- (1) Left Timing Chain Tensioner
- (1) Center Timing Chain Tensioner
- (1) Oil Pump Chain Tensioner
- (1) Upper Timing Chain Guide
- (1) Lower Timing Chain Guide Rail
- (2) Timing Chain Guide Rail
- (1) O-Ring (14x2mm)
- (1) Timing Chain Tensioner Gasket
- (1) Rear Crankshaft Seal
- (8) Bolt (M6x20)
- (4) Bolt (M7x36)
- (1) Sealing Compound


Part #s



Lower Timing Chain

06E-109-465 / 06E 109 465 / 06E109465


Secondary Timing Chain

06E-109-465-BK / 06E109465 BK / 06E 109 465 BK / 06E109465BK

06E-109-465-AS / 06E109465 AS / 06E 109 465 AS / 06E109465AS


Center Timing Chain

06E-109-465-BH / 06E109465 BH / 06E 109 465 BH / 06E109465BH

06E-109-465-BC / 06E109465 BC / 06E 109 465 BC / 06E109465BC


Secondary Timing Chain

06E-109-465-BJ / 06E109465 BJ / 06E 109 465 BJ / 06E109465BJ

06E-109-465-AT / 06E109465 AT / 06E 109 465 AT / 06E109465AT


Right Timing Chain Tensioner

06E-109-218-T / 06E109218 T / 06E 109 218 T / 06E109218T

06E-109-218-AK / 06E109218 AK / 06E 109 218 AK / 06E109218AK


Left Timing Chain Tensioner

06E-109-217-AJ / 06E109217 AJ / 06E 109 217 AJ / 06E109217AJ

06E-109-217-Q / 06E109217 Q / 06E 109 217 Q / 06E109217Q


Center Timing Chain Tensioner

079-109-507-AP / 079109507 AP / 079 109 507 AP / 079109507AP

079-109-507-T / 079109507 T / 079 109 507 T / 079109507T


Oil Pump Chain Tensioner

06E-109-507-D / 06E109507 D / 06E 109 507 D / 06E109507D


Upper Timing Chain Guide

079-109-469-AL / 079109469 AL / 079 109 469 AL / 079109469AL


Lower Timing Chain Guide Rail

079-109-469-AM / 079109469 AM / 079 109 469 AM / 079109469AM


Upper Timing Chain Guide Rail

079-109-470 / 079 109 470 / 079109470


Lower Tensioner O-Ring

N90-362-001 / N90 362 001 / N90362001


Timing Chain Tensioner Gasket

079-109-139-L / 079109139 L / 079 109 139 L / 079109139L


Rear Crankshaft Seal

079-103-051-F / 079103051 F / 079 103 051 F / 079103051F


Bolt (M6x20)

N10-124-304 / N10 124 304 / N10124304


Bolt (M7x36)

N91-129-001 / N91 129 001 / N91129001


Sealing Compound

D17-640-4A2 / D17 640 4A2 / D176404A2
