TSB Failure Parts & Turbo Install Gasket Set - Audi 4.0T / C7 S6 / C7 S7 / D4 A8 / D4 S8 / RS7 | 40T-TSB-TIK-KT
- Share:
![email]()
![Facebook]()
![Twitter]()
![Pinterest]()
Select Your Car to Verify Fitment
A very common problem with the 4.0T that has caused many blown turbochargers. The original turbo oil strainer from the factory are known to get clogged up an starve the turbo of oil resulting in turbo failure. This Kit provides you with all the parts you need to professionally service your turbo oil strainer by replacing it with the latest revision from the dealer. This Kit is made up mostly with Genuine Audi Parts while being paired with an OEM quality Elring Turbo Install Kit.

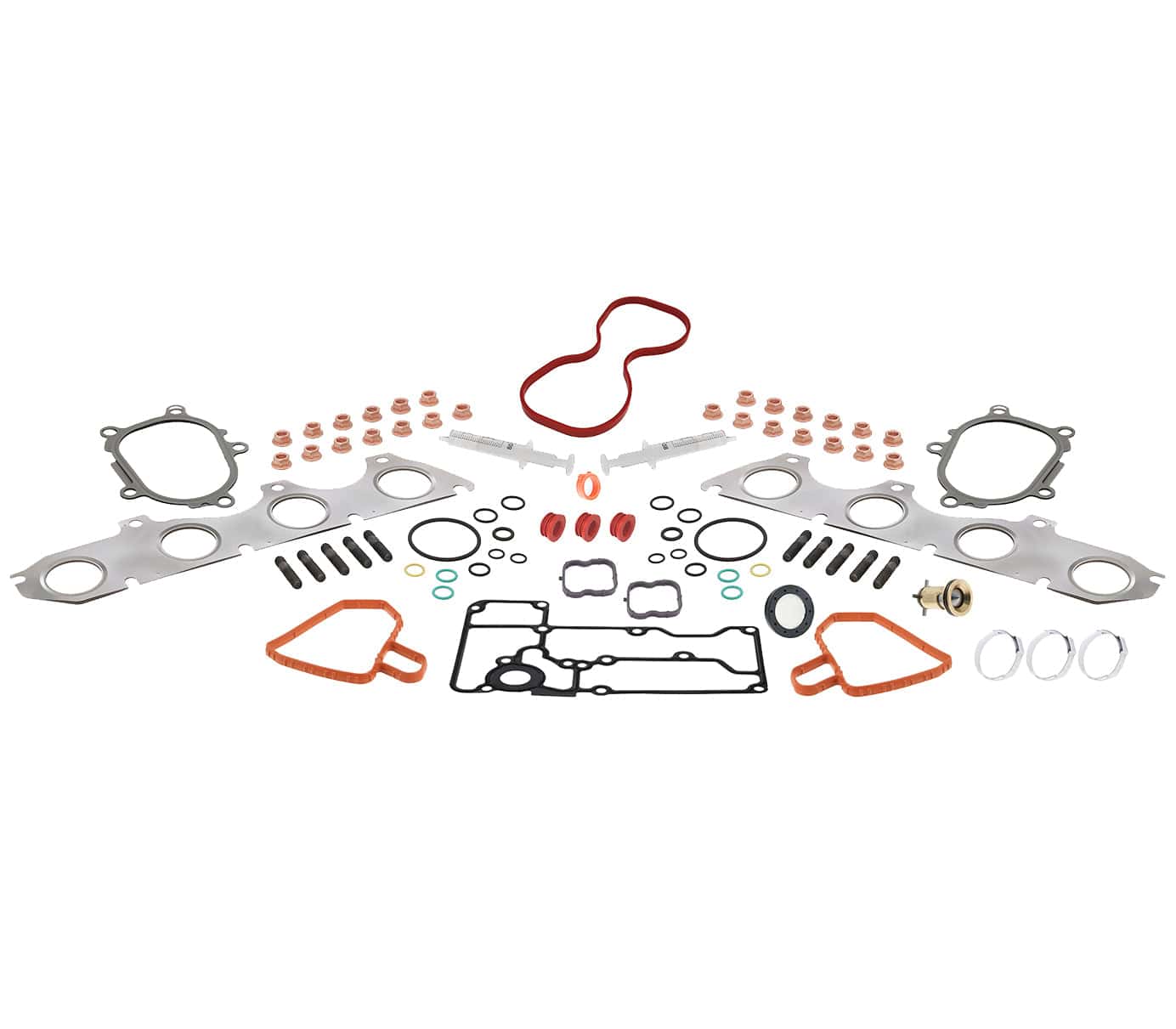

Kit Includes:
- (16) M8 Self-Locking Nuts
- (2) Oil Supply Line O-Rings
- (2) Sealing O-Rings
- (10) Turbocharger Studs
- (10) Turbocharger Exhaust Housing Locking Nuts
- (2) Exhaust Manifold Gaskets
- (2) Turbo to Downpipe Gaskets
- (2) Sealing O-Ring
- (2) Sealing O-Ring
- (1) Oil Return Hose Gasket
- (1) Oil Separator Gasket
- (3) Pinch Clamp (28.6x7x.6mm)
- (1) Oil Check Valve
- (1) Turbo Oil Strainer (Revision G)
- (2) Sealing O-Ring (Yellow)
- (1) Throttle Body Gasket
- (2) Intercooler Tube Seal
- (1) Intercooler Gasket (Right)
- (1) Intercooler Gasket (Left)
- (3) Oil Separator Gasket
- (1) Crankcase Vent Valve Gasket
Part #'s
Self-Locking Nut
N90-894-601 / N90894601 / N90 894 601 / N90894601
Oil Supply Line O-Ring
N91-056-801 / N91056801 / N91 056 801 / N91056801
Sealing O-Ring
WHT-001-011-A / WHT001011 A / WHT 001 011 A / WHT001011A
Turbocharger Stud
N91-153-902 / N91153902 / N91 153 902 / N91153902
Turbocharger Exhaust Housing Locking Nut
N91-130-802 / N91130802 / N91 130 802 / N91130802
Exhaust Manifold to Cylinder Head
079-253-039-M / 079253039 M / 079 253 039 M / 079253039M
Turbo to Downpipe Gasket
4G0-253-115-D / 4G0253115 D / 4G0 253 115 D / 4G0253115D
Sealing O-Ring
WHT-005-529 / WHT 005 529 / WHT005529
Sealing O-Ring
WHT-006-537 / WHT 006 537 / WHT006537
Oil Return Hose Gasket
WHT-006-901-A / WHT006901 A / WHT 006 901 A / WHT006901A
Oil Separator Gasket
079-103-583-A / 079103583 A / 079 103 583 A / 079103583A
Pinch Clamp (28.6x7x.6mm)
N90-409-501 / N90 409 501 / N90409501
Oil Check Valve
079-103-175-C / 079103175 C / 079 103 175 C / 079103175C
Turbo Oil Strainer (Revision G)
079-115-175-G / 079115175 G / 079 115 175 G / 079115175G
Sealing O-Ring (Yellow)
WHT-001-011 / WHT 001 011 / WHT001011
Throttle Body Gasket
079-145-818 / 079 145 818 / 079145818
Intercooler Tube Seal
079-145-417-B / 079145417 B / 079 145 417 B / 079145417B
079-145-417-A / 079145417 A / 079 145 417 A / 079145417A
Intercooler Gasket (Right)
079-129-717-K / 079129717 K / 079 129 717 K / 079129717K
Intercooler Gasket (Left)
079-129-717-J / 079129717 J / 079 129 717 J / 079129717J
Oil Separator Gasket
079-103-583 / 079 103 583 / 079103583
Crankcase Vent Valve Gasket
079-103-161-Q / 079103161 Q / 079 103 161 Q / 079103161Q
