TTE340 Upgraded Turbocharger - Transverse 1.8T | TTE10007

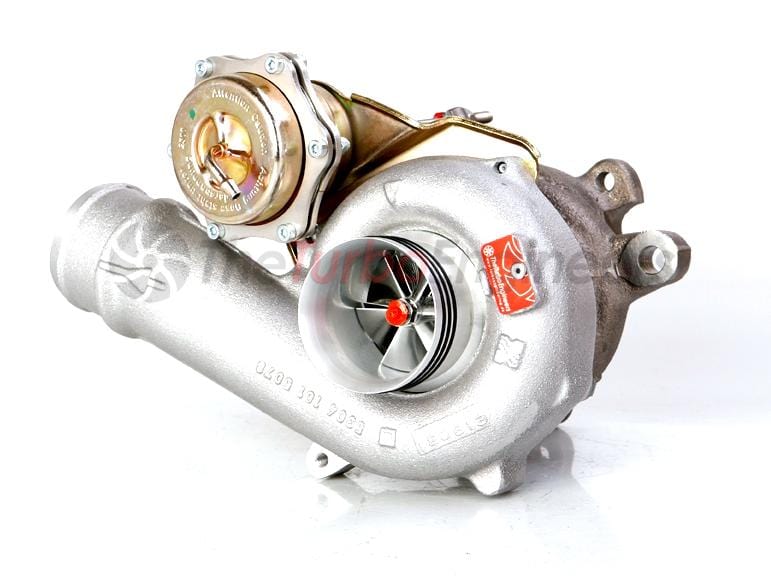

Introducing the TTE340 performance turbocharger for the 1.8T. Offering 340PS and more with correct hardware & software, near Plug & Play Upgrade with fantastic response and OEM reliability. OEM+


Engineered & Enhanced

TTE340 is an evolution from our proven TTE300 and is based on a brand new Genuine BorgWarner K04 turbocharger, that we dismantle and set about upgrading as Turbo Engineers.

To produce a TTE340 K04 upgrade turbocharger we use a much larger BorgWarner 2283 billet compressor wheel, chosen because it is highly efficient and light in weight for fast response. This compressor also features BorgWarner Extended tip technology giving a compressor map that's very wide, creating an extremely high flow for comparative size. We CNC Re-Profile the compressor cover in-house to an optimized tight tolerance and finish to ensure maximum compressor efficiency is given.

The intake to the compressor wheel is a CNC milled billet piece with 58MM dia opening this gives a smooth transition from the intake pipework to the larger compressor to lower turbulence and maximize velocity. The boost discharge outlet is also ported to again smooth the transition to the boost pipework to reduce turbulence.

Attention is given to increase the standard exhaust port size (40mm diameter approx). We CNC mill, porting the turbine housing exhaust and throat and entry size to approx 48mm diameter for maximum flow from an upgrade manifold and so improving efficiency to the bigger turbine used.

We CNC re-profile the exhaust turbine housing to optimized profile and gap to take a larger K04 turbine and shaft we use on this stage, this turbine is a Genuine BorgWarner item. We also give the turbine special curved clip of a specific amount. The clipping is a TTE grinding process to the turbine blade tips, curved to alleviate stress from the process. Clipping reduces blade area, increasing gas flow and so reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost level's. This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing rotational mass, improving moment of inertia.

Special profile 360 deg high-performance BorgWarner motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is uprated sprung Genuine BorgWarner unit, fitted with our reinforced stainless steel clamps and hardware for trouble-free operation. This also can be modified and set to customer needs and specifications if required.


Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Product Highlights:

• Original BorgWarner K04-023 turbocharger as base

• BorgWarner Billet Milled compressor wheel
• BorgWarner Larger High-Flow Clipped Turbine
• Plug and Play installation with bigger turbo intake
• Proven TheTurboEngineers quality
• 340 PS Capable
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany
