Turbo Install Kit | Mk5 | B6 2.0T FSi | Turbo_Install_FSi

This kit is perfect for installing a new turbo. Includes 4 new studs and nuts for the downpipe, fresh downpipe gasket, new manifold nuts, all oil line and coolant line gaskets. All parts are Genuine Audi unless listed otherwise.

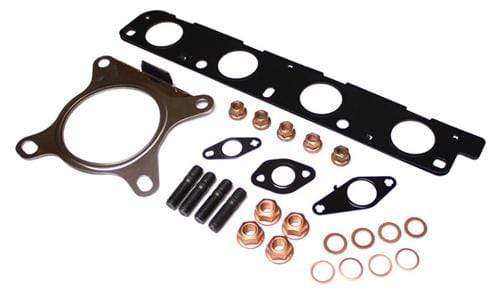

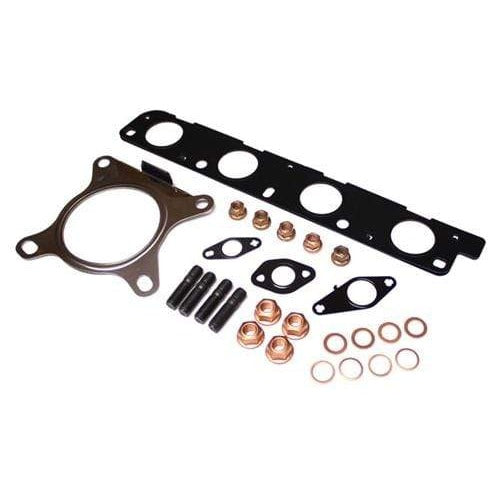

Kit Includes:

(4) Turbo Stud to Downpipe M10x28
(4) Turbo to Downpipe Self-Locking Nut M10
(1) Breather Tube Metal Gasket (Elring)
(4) Sealing Washer 12x15.5x1.5 (Victor Reinz)
(4) Copper Washer 14x18 (Elring)
(1) Return Turbo Oil Line Gasket (Elring)
(1) Return Turbo Oil Pan Line Gasket (Elring)
(1) Turbo to Downpipe Exhaust Gasket (Elwis)
(5) Locking Nut M8x1.25 (Aftermarket)
(1) Exhaust Manifold Gasket (Elring)



Part #'s


Turbo Stud to Downpipe M10x28

N04-452-03 / N04 452 03 / N0445203


Turbo to Downpipe Self-Locking Nut M10

N10-286-108 / N10 286 108 / N10286108


Breather Tube Metal Gasket

06F-145-757-F / 06F145757 F / 06F 145 757 F / 06F145757F


Sealing Washer 12x15.5x1.5

N01-381-28 / N01 381 28 / N0138128


Copper Washer 14x18

07-11-9-963-201 / 07 11 9 963 201 / 07119963201


Return Turbo Oil Line Gasket

058-145-757-A / 058145757 A / 058 145 757 A / 058145757A


Return Turbo Oil Pan Line Gasket

06F-145-757-L / 06F145757 L / 06F 145 757 L

06F-145-757-H / 06F145757 H / 06F 145 757 H / 06F145757H

06F-145-757-C / 06F145757 C / 06F 145 757 C / 06F145757C


Turbo to Downpipe Exhaust Gasket

1K0-253-115-AB / 1K0253115 AB / 1K0 253 115 AB

1K0-253-115-K / 1K0253115 K / 1K0 253 115 K / 1K0253115K


Locking Nut M8x1.25

N91-130-801 / N91 130 801 / N91130801

N91-130-802 / N91 130 802 / N91130802

N9-022-640-3 / N9022640 3 / N9 022 640 3 / N90226403

N90-289-101 / N90 289 101 / N90289101

N90-226-404 / N90 226 404 / N90226404

N90-226-403 / N90 226 403 / N90226403

N90-894-601 / N90 894 601 / N90894601

N90-200-201 / N90 200 201


Exhaust Manifold Gasket

06F-253-039-F / 06F253039 F / 06F 253 039 F / 06F253039F
