Unitronic Garrett PowerMax Turbocharger Upgrade for MK8 Golf R / 8Y S3 / Formentor VZ 310 | UH036-BTA

Description

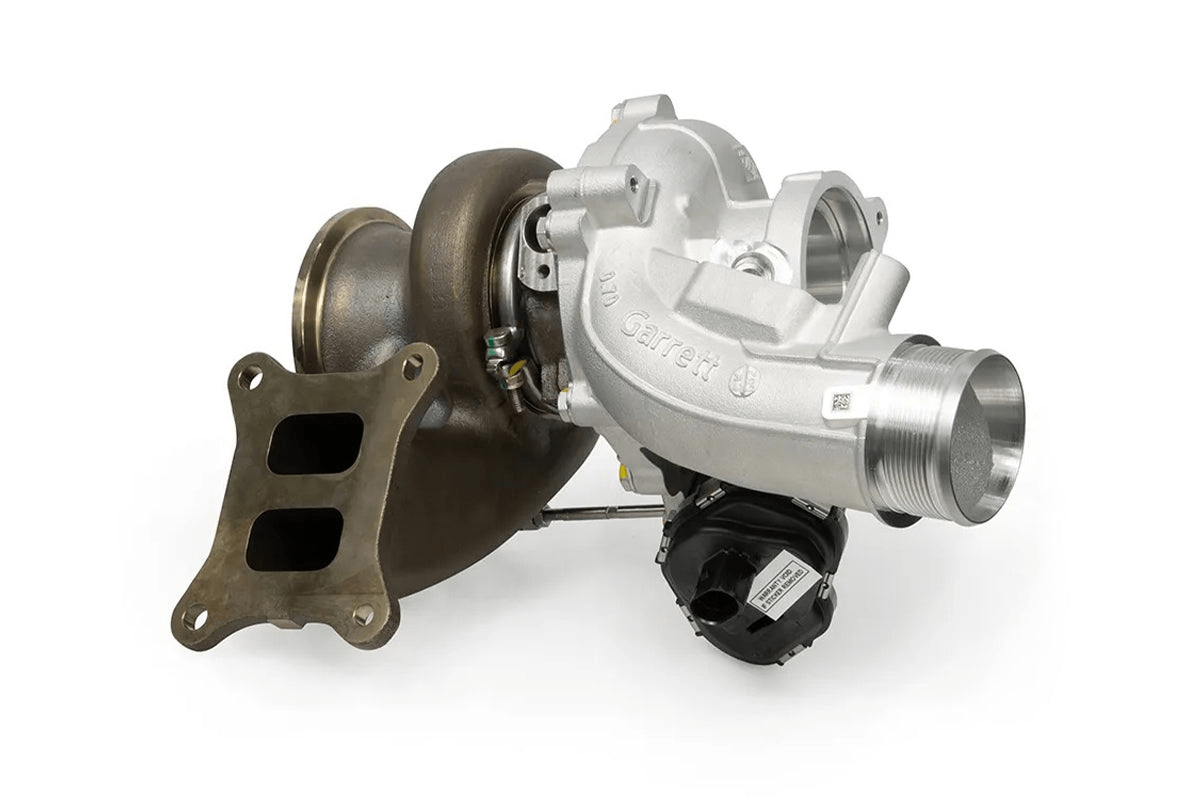

This Garrett® PowerMax™ Turbocharger is a direct drop-in upgrade for the MK8 Golf R®, 8Y S3® and Formentor® VZ® 310 equipped with the 2.0TSI® EA888® EVO4 engine. Featuring high flow internals and reinforced Mar-M alloy components, this turbocharger upgrade is capable of 550HP+. (Unitronic Stage 3 Performance Software not included)

During Garrett's flow testing, this performance turbocharger supplied +20% compressor flow and +37% turbine flow compared to the OE turbo. Garrett’s latest generation of compressor and turbine wheel technology provide maximum flow and efficiency to this turbocharger, all within the OEM footprint. Elevate your driving game, and experience performance like never before with PowerMax™.


Features / Benefits

• Complete assembly with electronic actuator for OE fitment
• +20% compressor flow compared to OE turbo
• +37% turbine flow compared to OE turbo
• Customized modern compressor wheel aero for application
• Modern gasoline turbine wheel aerodynamics constructed of Mar-M alloy rated for up to 1050C.
• Stainless steel turbine housing rated for up to 1050C
• Fully machined speed sensor port
• Integrated thrust bearing - reinforced for application

Hardware Included

• 1x Garrett PowerMax™ Turbocharger Upgrade for MK8 Golf R / 8Y S3 / Formentor VZ 310 2.0TSI EVO4 [921474-5001S]

Required Software

• Stage 3 ECU (coming soon)
• Stage 3 TCU (coming soon)

Recommended Hardware

• Cat-Back Exhaust System for 8Y S3 by Unitronic
• Cat-Back Exhaust System for MK8 Golf R by Unitronic
• Unitronic Charge Pipe Kit for MK8 R/8Y S3
• Unitronic Street DQ250/MQ350 Dogbone Engine Mount
• Unitronic Street DQ381 Dogbone Engine Mount

Required Hardware

• Carbon Fiber Intake System with Air Duct for MK8 Golf R and 8Y S3 by Unitronic
• Intercooler Upgrade Kit for 1.8 and 2.0 TSI Gen3 MQB and 8Y S3 by Unitronic
• Unitronic Intercooler Upgrade for MK8 GTI/R
• Unitronic Performance Downpipe for 2.0TSI EA888 EVO4 AWD

 Related Hardware

• Hardware Kit For 2.0TSI EVO4 Turbo Upgrade
