VADpro Electronic Boost Pressure Sensor - 4.5 Bar / 65 Psi | VP22900

Fits for displays, gauges, boost controller, VAD28, VAD32, Zada Tech, standalone ECU's

Compatible with all VADpro displays and numerous other displays and gauges or standalone ECU's! In contrast to other suppliers, this sensor can display boost pressures up to 4.5 Bar / 65 Psi!

Key Features:
- Up to a maximum of 4,5 Bar / 65 Psi
- With plug and connection pins for self crimping
- Works with all displays / gauges / freely programmable ECU systems

The following ECUs have already been tested:
- trijekt (Premium, Bee, trigifant)
- Megasquirt 2 and 3
- k-data KDFI
- UMC1/UMC2
- EFIgnition
- Microsquirt
- EcuMaster EMU (classic with Can-Bus adapter: EMU Black)
- AIM generic protocol
- LinkECU
- Haltech v2
- MME ECU481 with Can Bus
- SCS Delta GDI4 and Delta
- VAG (Audi / VW / Seat)
- Van kronenburg KMS MD35 (MP25 with CAN-Bus Adapter)
- VEMS with serial adapter
If your ECU is not listed, please contact us.

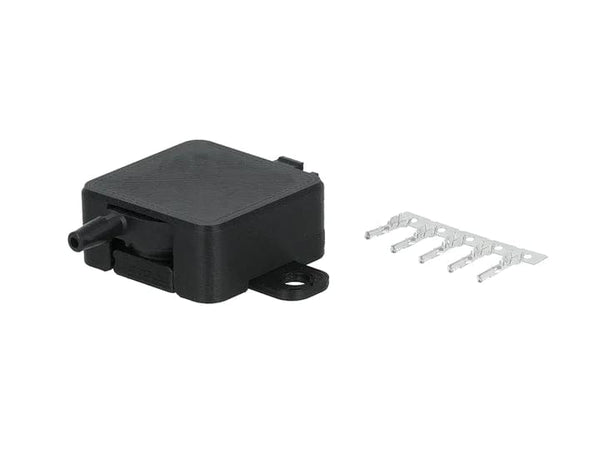

Kit Contents
- 4.5 Bar boost pressure sensor
- Connector plug
- Pins for crimping cables

Connection pinout of the sensor connector to the VAD28 / VAD32 display:
5V -> A2
Ground -> A6
Signal -> A8

0-5V output curve:
0V = -1,3 BAR
5V = 6,77 BAR
