VADpro VAD28 - 2.8" Multifunctional Display | VP02002

Kit Contents:

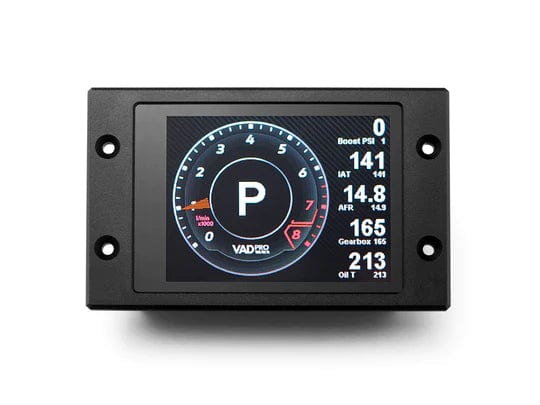

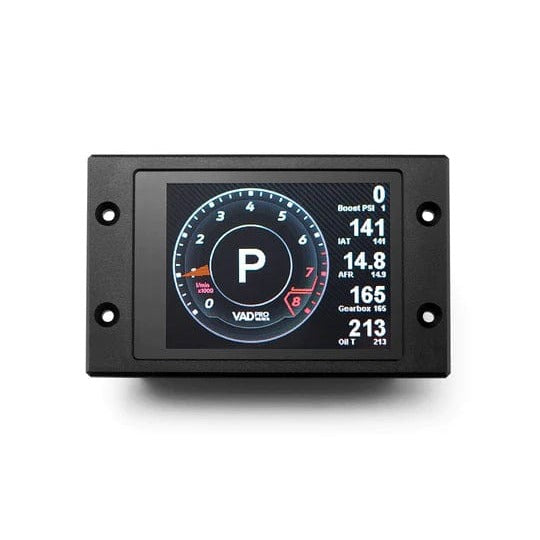

 VAD28 Multifunction Display with 2.8" TFT Touchscreen

- Micro USB Cable

- 8GB Micro SD Card

- SD Card Adapter

- Wiring kit

- Mounting hardware

Many customers always ask: "Which values ​​can I query from my control unit". The answer: " ALL ". The display is compatible with ISO 11898-2 and SAE J2284. Both CAN2.0A and CAN2.0B (ie 11 and 29 bit identifiers) are supported.

The control unit manufacturers themselves determine which values ​​are sent via the CAN bus interface and document them accordingly. A total of up to 64 sensors can be queried if the manufacturer supports this. Further supported control devices can be found in our download area.

A small note on Megasquirt: all derivatives are supported here, such as KDFI, UMC1, Microsquirt etc. However, a CAN bus interface must be implemented.

In general, all control devices are supported that have a documented CAN bus interface. The manufacturers usually supply a "dbc" file which can then be converted for the display.

The following control units have already been tested:
- trijekt (Premium, Bee, trigifant) - trijekt plus with restrictions
- Megasquirt 2 and 3
- k-data KDFI
- UMC1 / UMC2
- Microsquirt
- EFIgnition
- MaxxECU
- EcuMaster Emu (standard with CAN , standard with Can Bus Adapter, Black)
- VAG (Audi / VW / Seat)
- van kronenburg KMS MD35 (MP25 with CAN bus adapter)
- LinkECU
- AEM EMS
- Motorsport Electronics ME442 and ME221 (the latter with adapter)
- MME ECU481 (with MME Can Bus adapter)
- VEMS (with serial adapter)
