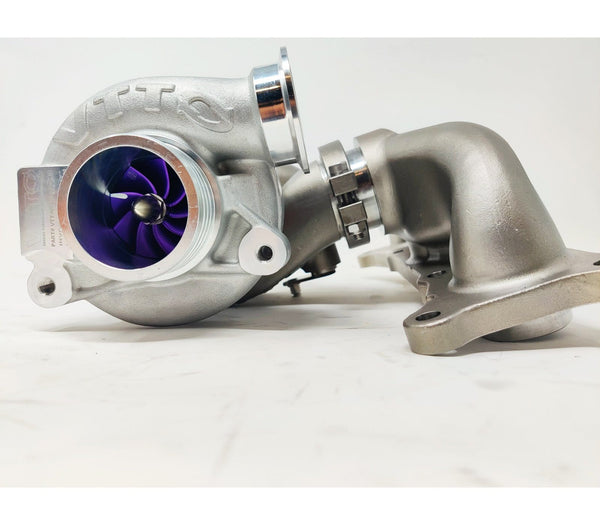

Vargas Turbo Technologies N54 F-RB Turbocharger Kit | VTT-N54-FRB-Kit

WHP Level supported (with proper fuel, upgrades, and tuning) Stock-850WHP

VTT is proud to announce an All-new VTT GC redesign for 2021! The latest in our line of N54 VTT “GC” turbochargers. The GC “F-RB” or Full-Rebrand.

This is an all-new take on the VTT N54 “GC” turbocharger, using 100% new parts throughout that is pure performance. Some of the new groundbreaking features include: All turbine side parts are now fully cast from 310 Stainless Steel for increased temperature resistance, and ultimate corrosion resistance. We also fully redesigned the turbine housing -the F-RB’s have a much larger volute as well as a proprietary AR which will dramatically increase flow capacity, helping to eliminate stress on the turbine wheel. Fully redesigned compressor housings which now include V-band OR Hose Barb connection options (while our current stock of hose barb connections last). The CHRA’s are redesigned with new compressor wheels, bullet nuts, and better internal parts. These are new turbochargers from the compressor housing to the bearing housing, to the turbine housing. We engineered them to fit in the stock N54 location but provide the full flow of a much larger turbo -the F-RB’s outflow the GCV2.0’s by a significant margin.

With this all-new design, there is no other 850WHP capable turbocharger option on the market single or twins that can match the spool, ease of fitment, power, reliability, OR price of our GC “F-RB” turbochargers!

GC F-RB turbocharger Features:

Turbine housing cast from 310 Stainless Steel for the ultimate in temperature and corrosion resistance
Turbine Manifold cast from 310 Stainless Steel for the ultimate in temperature and corrosion resistance
Redesigned Turbine housing with an increased volute and AR size for improved flow over V2 GC’s
Mar-M246: Every set of F-RB Turbochargers comes with a Mar-M26 Superalloy turbine wheel for unmatched durability
Re-designed compressor housings with the choice of V-Band or Hose Barb
Upgraded Internals: Every set of stage F-RB turbos comes with a performance upgraded thrust, as well as upgraded internals to extend the life of the turbochargers.
Anodized 9 blade “Hi-Flow” Billet Compressor wheels are used to maximize flow per shaft revolution and help eliminate surge
We also offer 2000 degree ceramic coating for the ultimate in under hood heat reduction, and to help aid in spool! Please choose from the options if you want your turbo coated!
All sizes utilize the same 52x46mm turbine wheel for increased flow
The “GC” F-RB comes in 3 sizes to meet all Power/Spool needs.

F-RB+ 63x46mm Anodized Gold – 10-15% flow increase over Standard Billet GC Wheel Rated at 850WHP – Very good spool

F-RB – 58x46mm Black Anodized wheel Rated at 800WHP – Slightly better spool than the GC+

F-RB Lite – 58×43.3MM Purple Anodized Rated at 750WHP – Very close to stock spool


VTT Inlet, AND/OR outlet bundle: The GC F-RB turbochargers work perfectly with our very own VTT 2″ inlets, and VTT aluminum outlet, and were designed to be used with these pieces. If you already have inlets or want to use another inlet brand that is not a problem, simply do not add them to the dropdown. These turbochargers will work with the stock outlet, or any V-band outlet, or our GC Barbed outlet if that option is chosen. (Please note, if you remove the inlet options, and do not have these items, you will not be able to install the turbos, as the stock inlets will not fit the new turbos.)

We always suggest the use of an aluminum aftermarket charge pipe, and BOV combo, with upgraded turbos. Add the VTT CP, and Turbosmart Raceport BOV to your order for just $349! Please see our BOV article for proper installation to avoid compressor surge!

(Please specify the vehicle model when ordering. Currently, we have kits for all models.)

(Price is for both turbos)

We also always recommend upgrading your PCV system at the time of turbo upgrade or replacement, as the stock valve/system can be worn. This means it can stop functioning to its full potential, causing oiling issues with your BMW. This upgraded valve not only replaces the worn stock valve it is also much stronger and will help eliminate any future PCV issues. We have many PCV options available including our catch can, and aluminum valve cover options.

Engine oil choice with upgraded turbochargers is a very important aspect for longevity, we only recommend 40W oils and higher, with high Zinc, and Phosphorus content, for high shear strength.

Every set of VTT turbochargers comes with a 1-year limited warranty. Please read our Warranty / Emissions Disclaimer when checking out for more details.

THESE PARTS ARE LEGAL FOR USE ONLY IN COMPETITION RACING VEHICLES AS DEFINED UNDER CALIFORNIA LAW AND ARE NOT LEGAL FOR USE IN ANY OTHER MOTOR VEHICLE. California law defines a “racing vehicle” as “a competition vehicle not used on public highways.” (Calif. Health & Safety Code 39048) These parts may only be used on competition racing vehicles operated exclusively on a closed course in conjunction with a sanctioned racing event. Competition-only motor vehicles may not be driven to a racing event on a public highway and must be transported on a trailer or other carrier. USE OF THESE PARTS IN ANY OTHER VEHICLE MAY SUBJECT YOU TO FINES AND PENALTIES FOR VIOLATION OF FEDERAL AND/OR STATE LAW, WILL VOID YOUR WARRANTY FROM Vargas Turbocharger Technologies, Inc., AND CAN VOID YOUR VEHICLE’S WARRANTY. It is your responsibility to comply with all applicable federal and state laws relating to the use of these parts, and Vargas Turbocharger Technologies, Inc. hereby disclaims any liability resulting from the failure to use these parts in compliance with all applicable federal and state laws.
